AIRTECHZ / Wall-mounted air circulation
Industrial Wall Fan
Powerful air movement. More room on the floor.
An industrial wall fan is a large wall-mounted circulation fan that moves air across warehouses, factories and commercial spaces. It keeps walkways and work areas clear while bringing airflow to the people and equipment below.
Choose 20, 24, 26 or 30 inch sizes, with AC or optional BLDC motors, different blade designs and controls to suit your project.
Commercial & industrial fan supply from China.
01 / Compare the range
20, 24, 26 & 30 inch industrial wall fans
Compare the four standard 220 V / 50 Hz models before selecting optional configurations.
| Model | Nominal size | Supply | Power W | Airflow m³/min | Motor speed rpm | Noise dB(A) | Product weight kg |
|---|---|---|---|---|---|---|---|
| FA-500W | 20 inch / 500 mm | 220 V / 50 Hz | 90 | 150 | 1,350 | 58 | 7 |
| FA-600W | 24 inch / 600 mm | 220 V / 50 Hz | 170 | 195 | 1,350 | 60 | 7.8 |
| FA-650W | 26 inch / 650 mm | 220 V / 50 Hz | 180 | 205 | 1,350 | 61 | 8.1 |
| FA-750W | 30 inch / 750 mm | 220 V / 50 Hz | 200 | 290 | 1,350 | 65 | 9 |
On mobile, swipe the table to see every specification. Airflow and noise values are listed ratings; ask AIRTECHZ for test conditions and performance confirmation for your selected configuration. Customized motors, blades and voltages may change these figures.
02 / Built for regular use
Motor, blades & protective grille
Practical component choices for long-term air circulation, with specifications confirmed for each order.

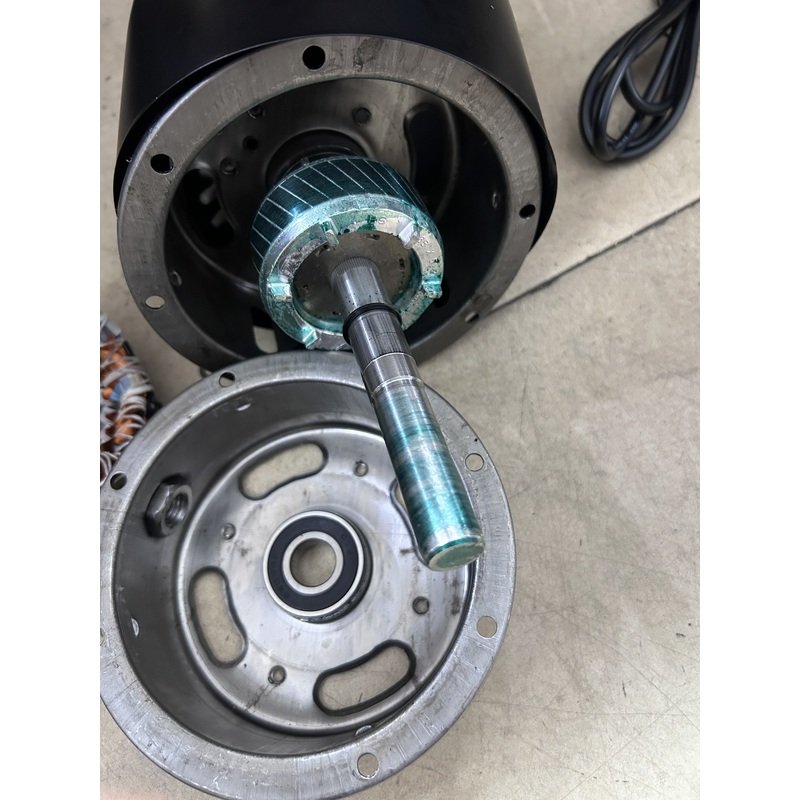

Copper-wound motor
Copper motor windings, a matched rotor and a suitable capacitor form the drive assembly. AC motors are standard options; BLDC configurations are available on request.

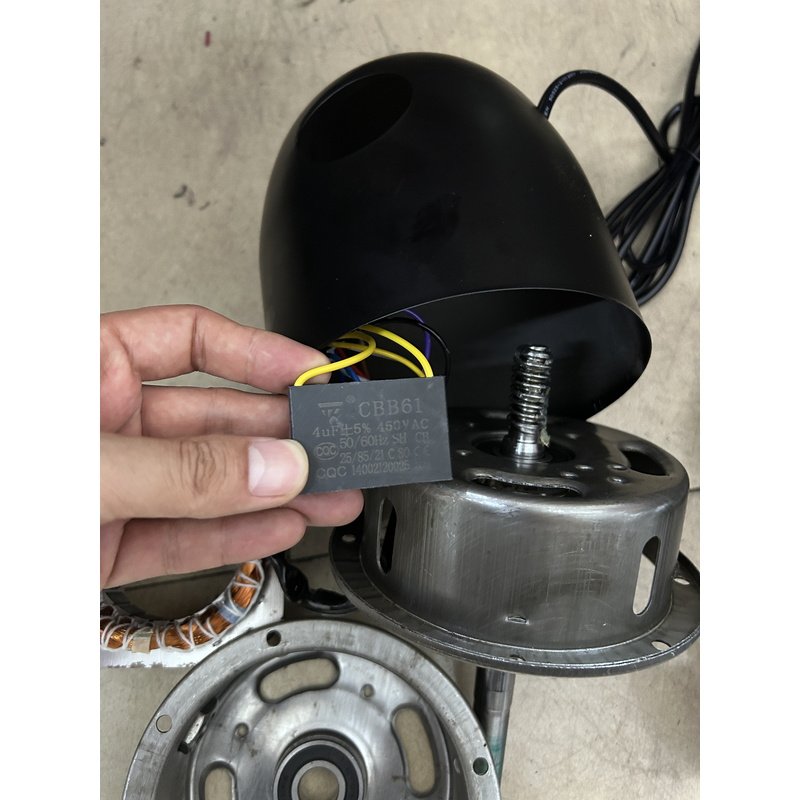

Matched capacitor
The capacitor is selected to suit the AC motor. Confirm the motor specification and component requirements for your market before ordering.
Rigid coated-steel guard
A powder-coated, high-strength steel grille protects the blade assembly. Guard wire of at least 1.8 mm is specified; opening size and rigidity must suit the required protection level.
03 / Motor protection

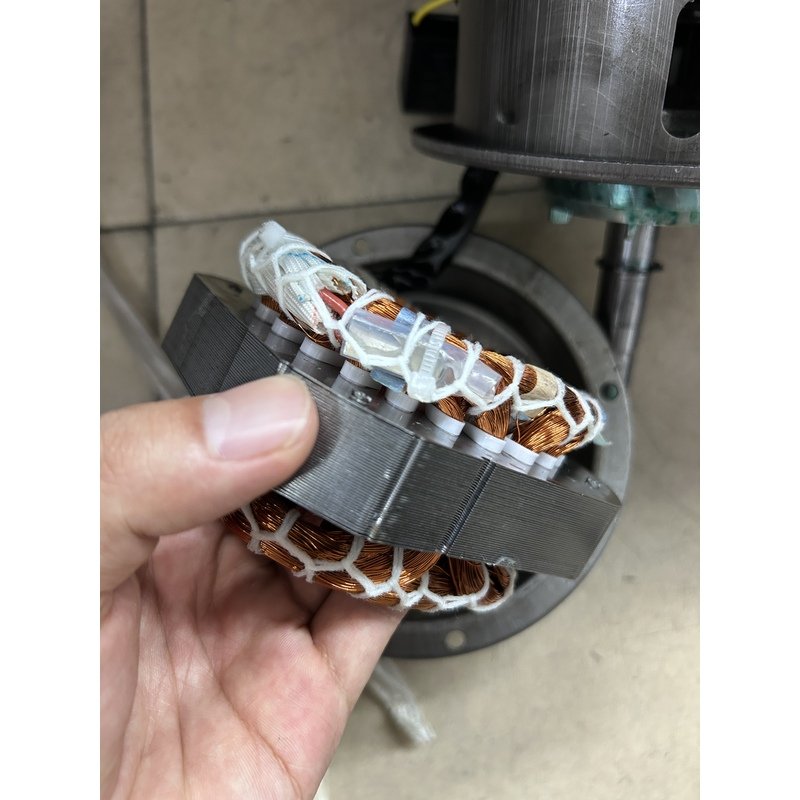

How does the overheat protection sensor work?
An internal thermal protector monitors motor temperature and interrupts the power supply when its rated limit is reached.
Temperature-responsive protection
- During normal operation, the protector allows the motor to run.
- If the motor reaches the selected protector’s trip temperature—approximately 130°C for the specified option—the circuit opens and the motor stops.
- With an automatic-reset protector, operation can resume after the motor cools to its reset temperature.
Trip and reset temperatures depend on the protector fitted. Disconnect power before inspection: an automatic-reset motor can restart after cooling. Resolve blocked airflow or other causes of overheating before returning the fan to use.
04 / Keep the floor clear
Two mounting orientations. More installation flexibility.

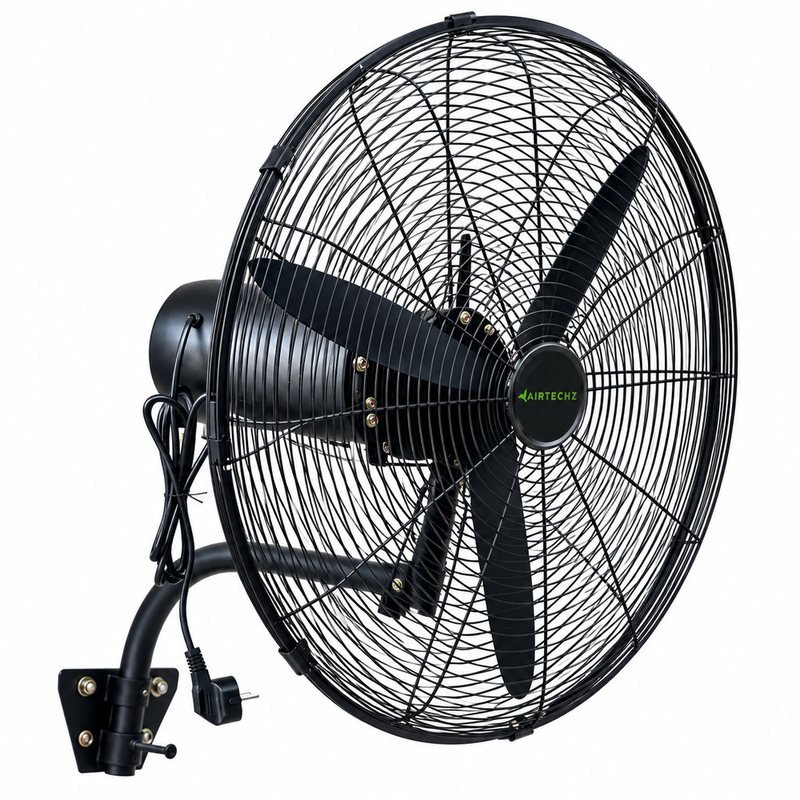

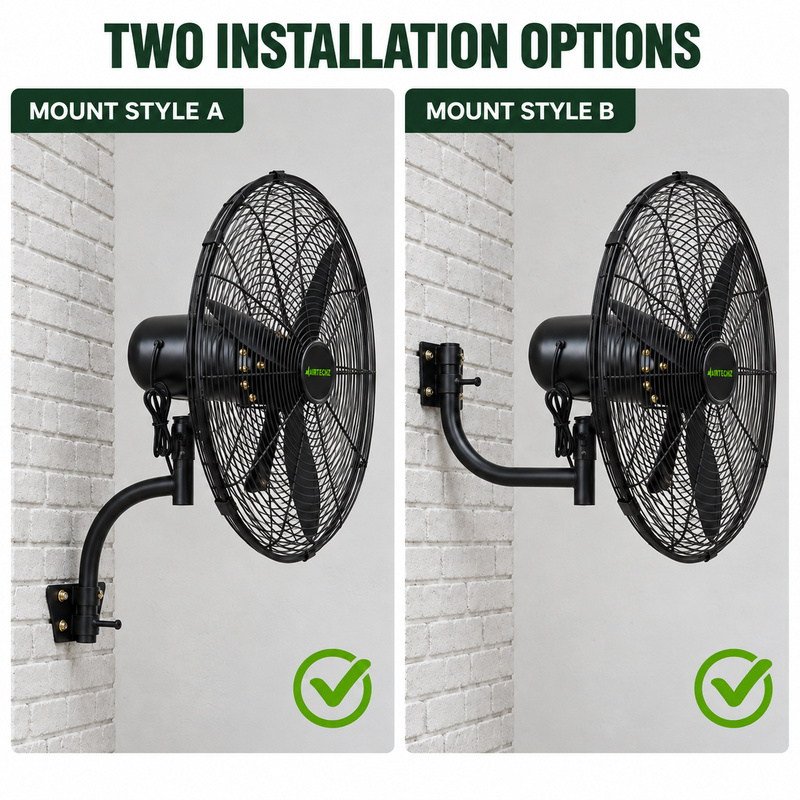

The curved support bracket can be arranged with a lower or higher wall fixing plate, as illustrated below. A triangle support bracket is another available option.
Choose the bracket for the wall and mounting position
A robust steel support holds the fan away from the wall and allows airflow into the rear grille. Confirm the bracket type, mounting direction and available clearance before placing your order.
- Style A: a lower fixing plate, with the curved arm rising toward the fan.
- Style B: a higher fixing plate, with the curved arm dropping toward the fan.

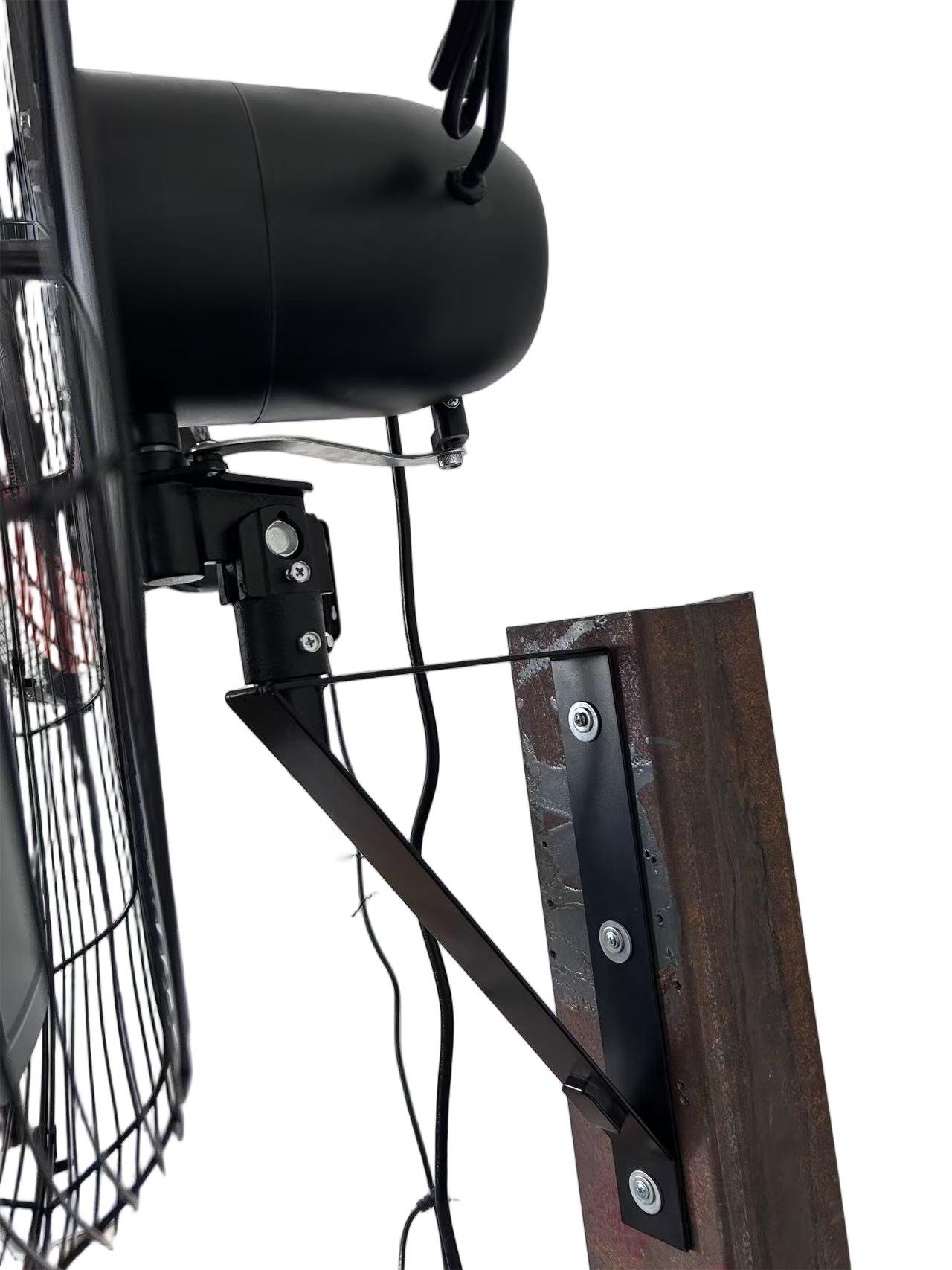

- Triangle bracket: an alternative support arrangement for suitable installations.
Use a structurally suitable wall and correctly rated fixings. Allow clearance for oscillation, service access and the power cable.
05 / Convenient operation
Choose how to control your industrial wall fan
Up to 90° oscillation distributes air across a wider area. Timer functions and the controls below are available by configuration.

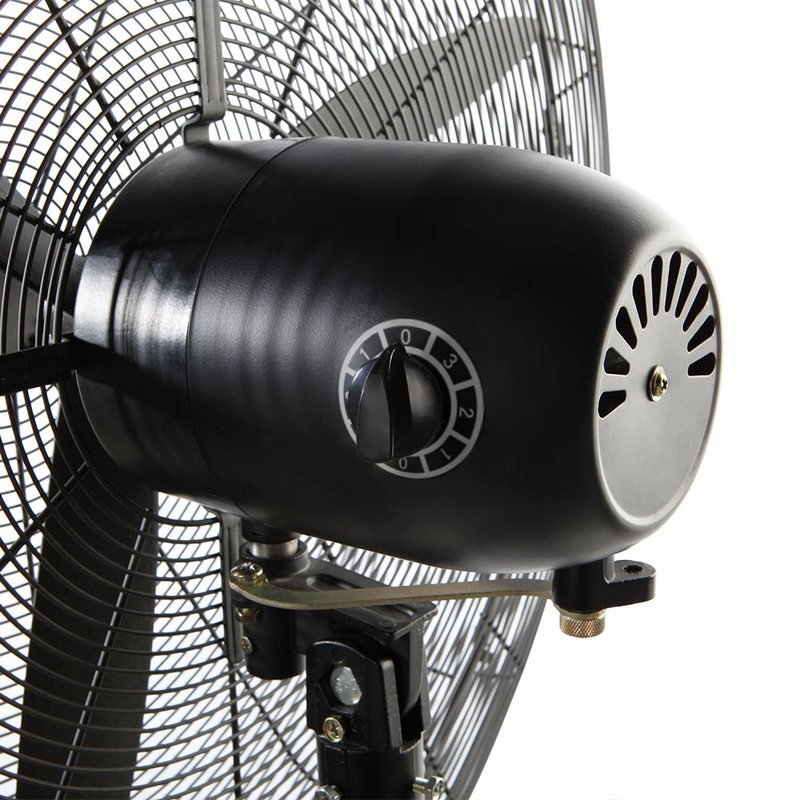

Mechanical controls
Straightforward manual operation. Confirm the available speed settings and control location for your selected motor.

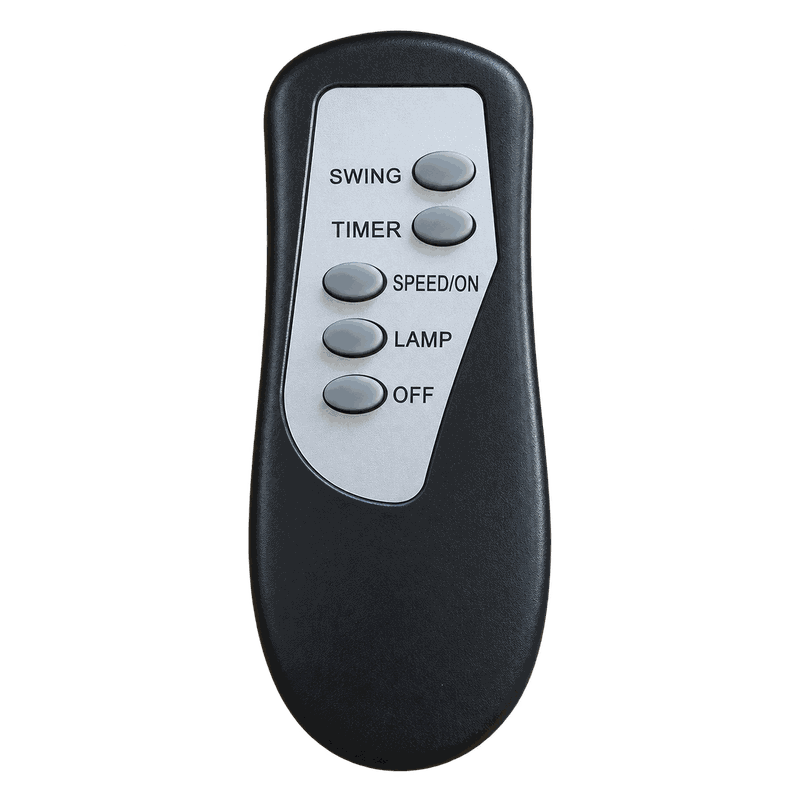

Wireless remote
Adjust compatible fan functions without reaching the motor. Remote layout and supported functions vary by model.

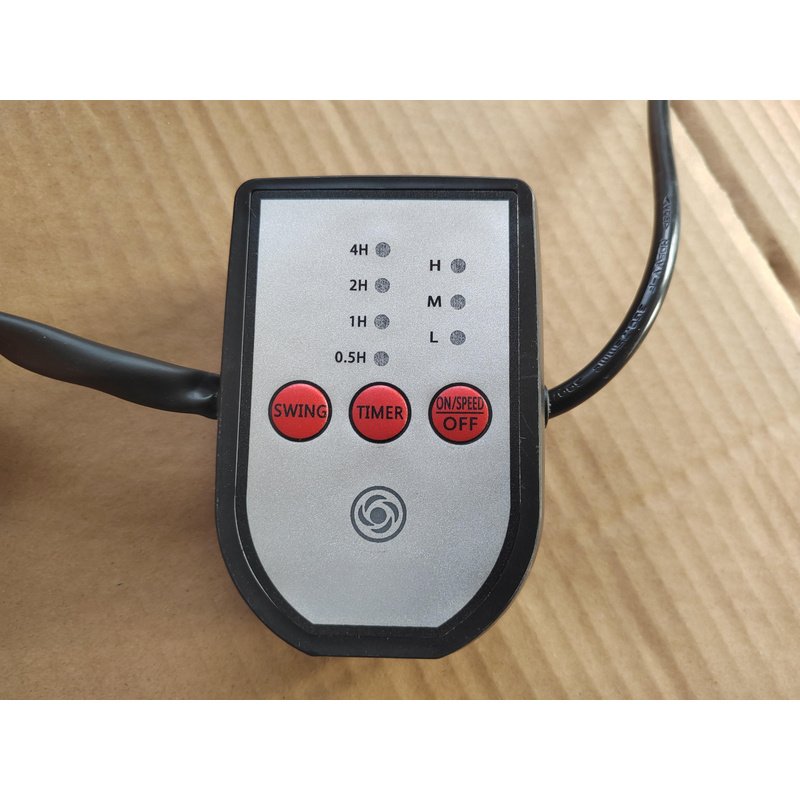

Wired controller
Place the wired controller within reach to adjust swing, select low, medium or high speed, and set the timer. The controller shown offers 0.5, 1, 2 and 4 hour timer selections; functions depend on the matched fan configuration.

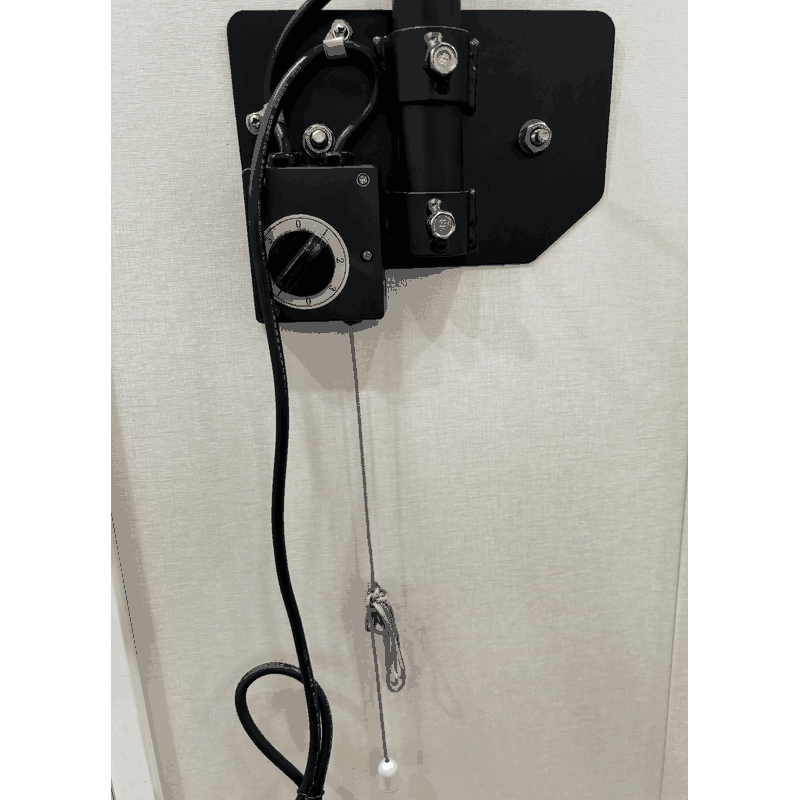

Pull-cord control
A reachable pull cord offers another way to operate a wall-mounted fan. Confirm the control functions for your configuration.
06 / Match the airflow requirement
Blade configurations
Compare blade counts and profiles together with motor power, noise and airflow. More blades alone do not guarantee more air movement.
Two-blade design
A two-blade configuration for projects requiring this blade and motor combination.

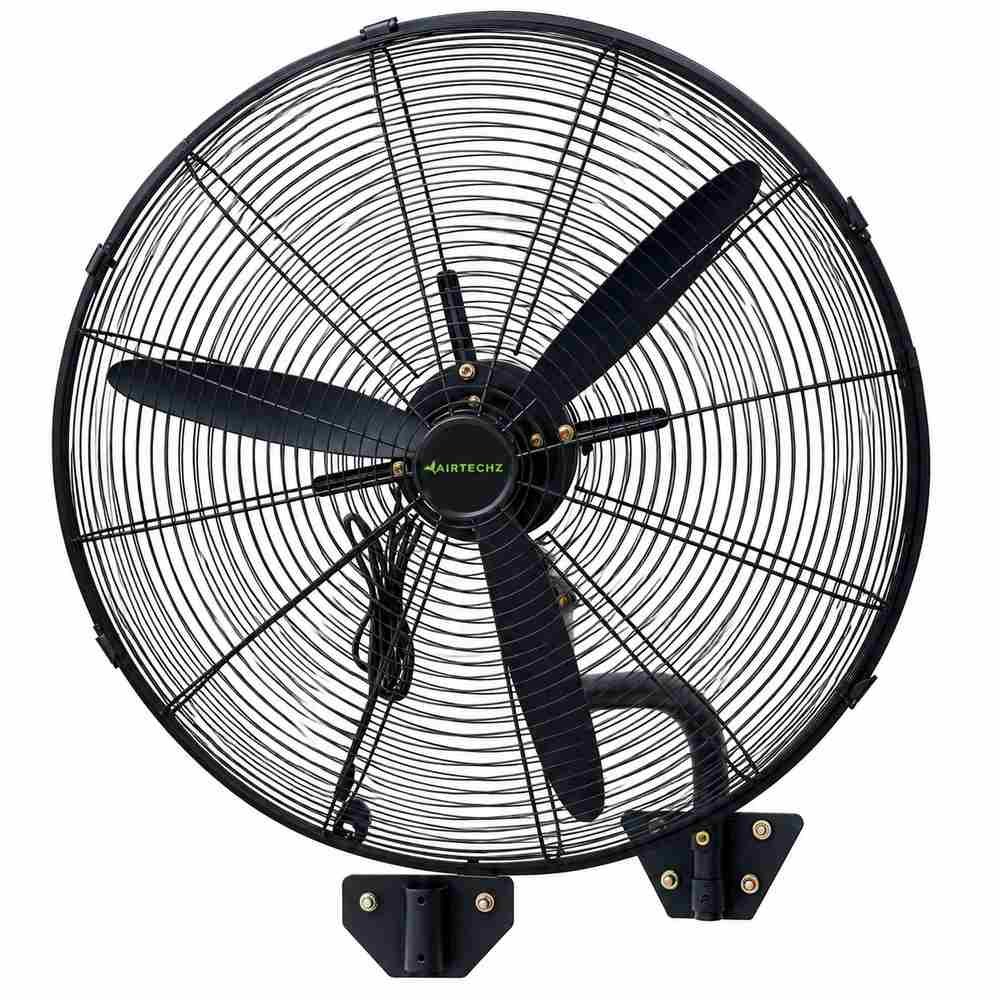

Three-blade design
The swept three-blade design shown is one available industrial wall fan configuration.

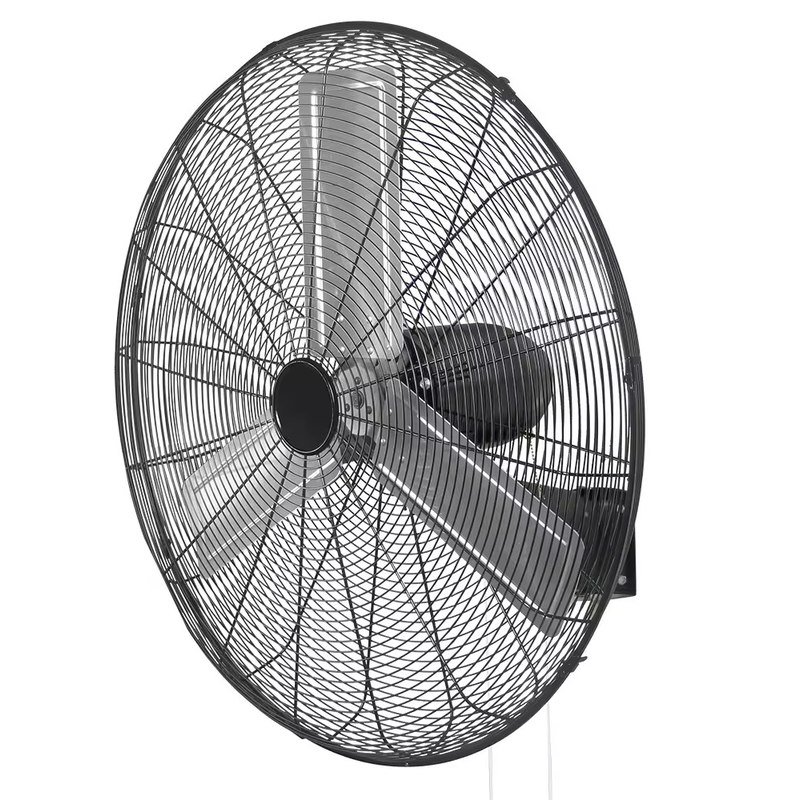

Broad three-blade design
An alternative blade profile. Confirm material and performance for the selected assembly.
Four-blade design
Four curved blades provide another configuration to compare for your project.
Five-blade designs and other blade shapes can also be requested. Availability and rated performance require confirmation.
07 / Oscillation options
Gearbox & oscillation-drive choices
Choose the oscillation mechanism to suit the motor assembly and application.

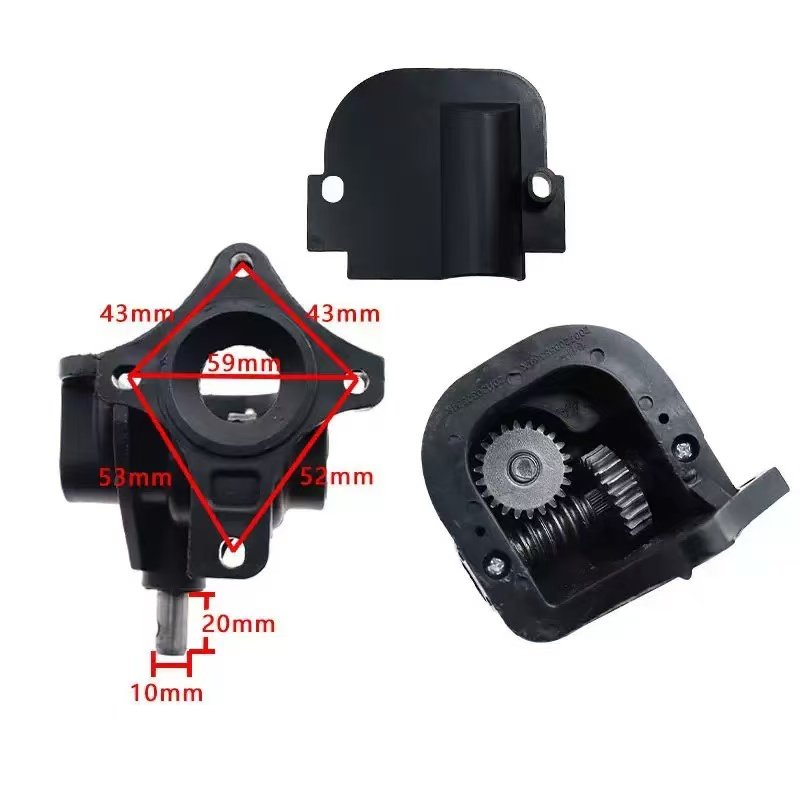

Plastic gearbox
A plastic gearbox option for compatible fan assemblies. Mounting dimensions depend on the chosen component.

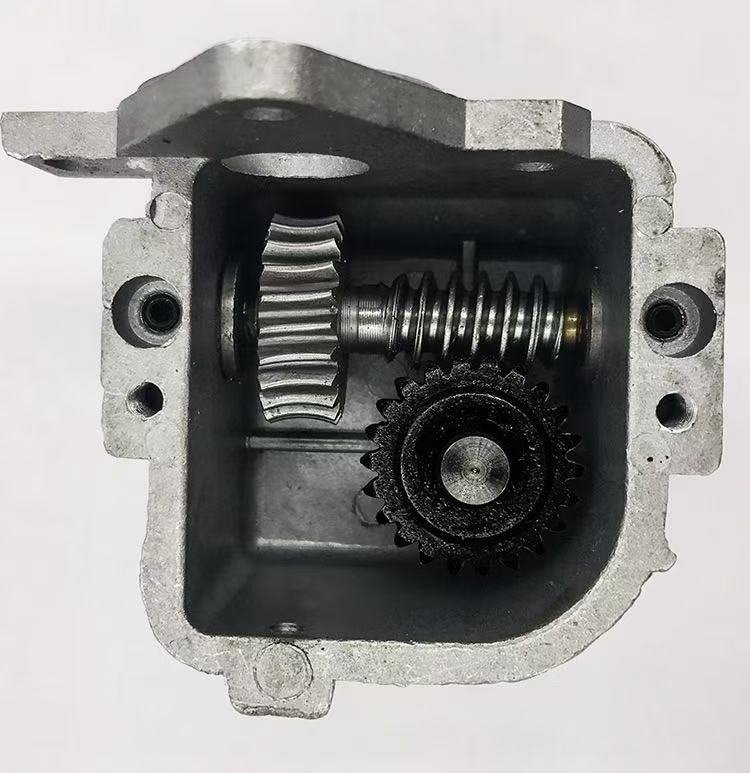

Aluminum-alloy gearbox
A metal gearbox housing option. Confirm the complete mechanism, gear specification and motor connection.

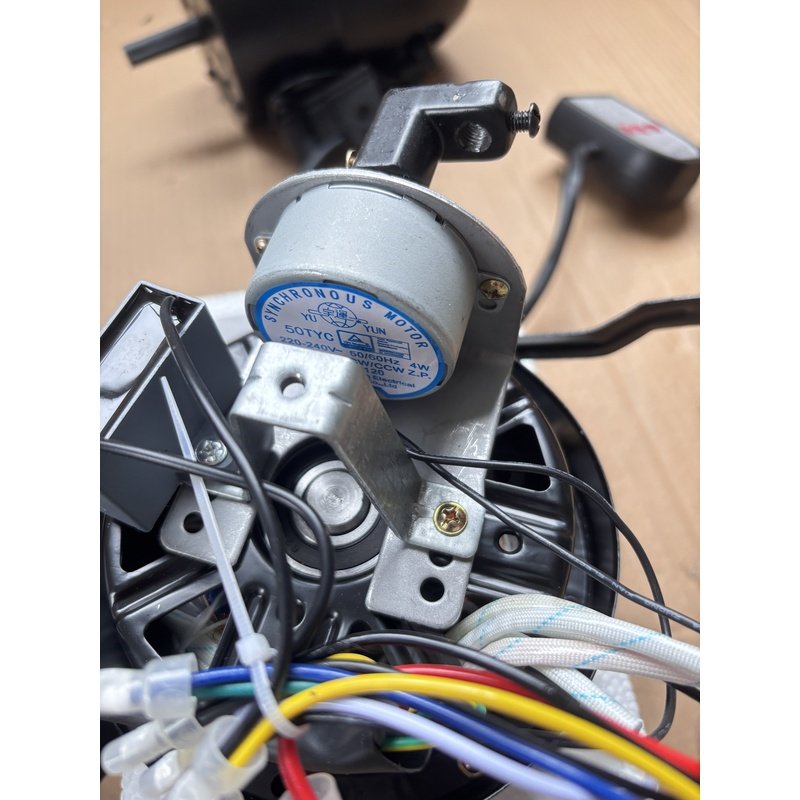

Synchronous motor
A small synchronous motor is another available oscillation-drive option, subject to configuration.
08 / Configure for your market
Voltage, color, plug & packaging options
Tell us the destination country, quantity and required functions so we can confirm a suitable configuration.
| Motor & power | Regular AC or optional BLDC motor; motor power can be specified for the application. |
| Supply voltage | 220 V / 50 Hz, 220 V / 60 Hz or 110–120 V / 60 Hz options. Confirm rating for the destination market. |
| Guard & blades | Grille mesh, blade material, blade count and profile can be customized. |
| Bracket | Curved standard bracket or triangle support bracket; confirm installation orientation and hardware. |
| Control & timer | Mechanical, wireless remote, wired controller or pull-cord options; timer availability depends on the model. |
| Color | Custom colors can be discussed using your Pantone or RAL reference. |

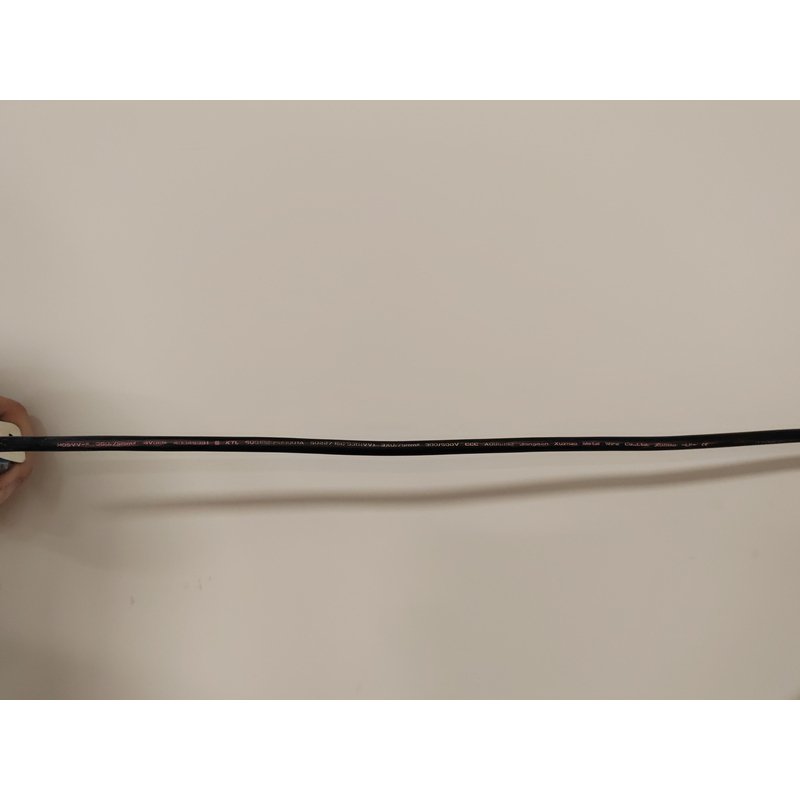

| Plug & cable | Different plug types and cable lengths are available. A 1.8 m cable is an option; confirm the required conductor specification. |

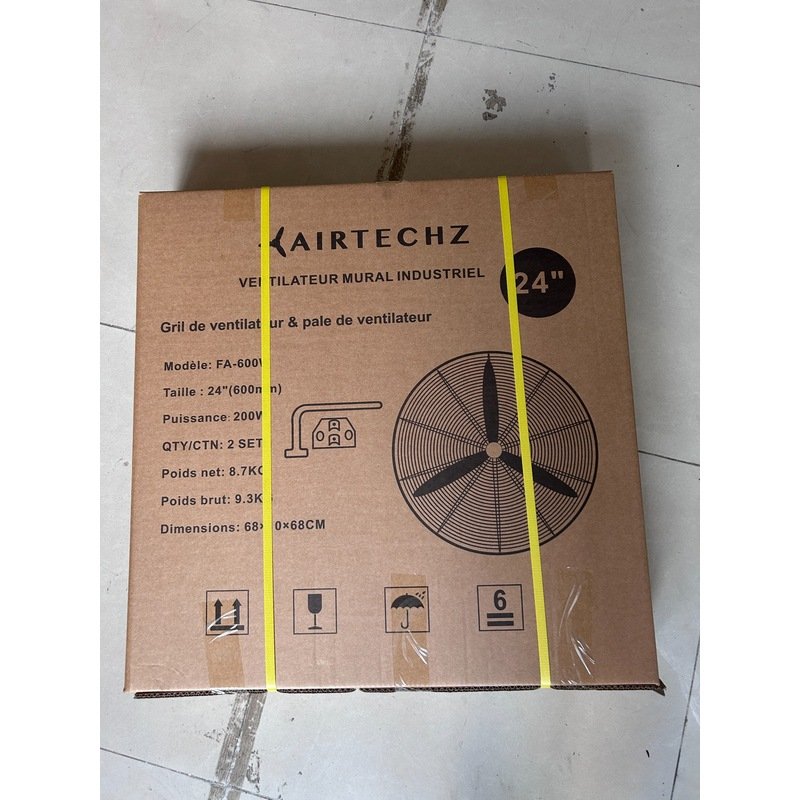

| Packaging | Standard brown kraft carton or optional printed white carton. Confirm artwork and packing requirements. |
09 / Where to use it
Air circulation above busy work areas
Wall mounting keeps floor space available in industrial, commercial and public buildings. Select the mounting height and airflow direction around the occupied areas.

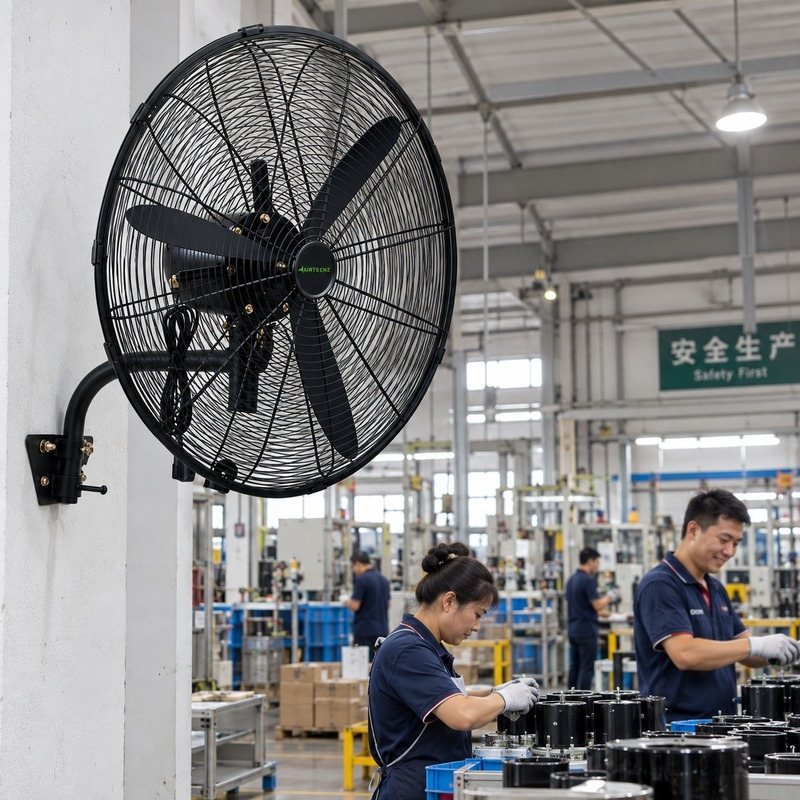

Factories & warehouses
Move air around workstations, packing lines and storage areas without placing a stand fan in the aisle.

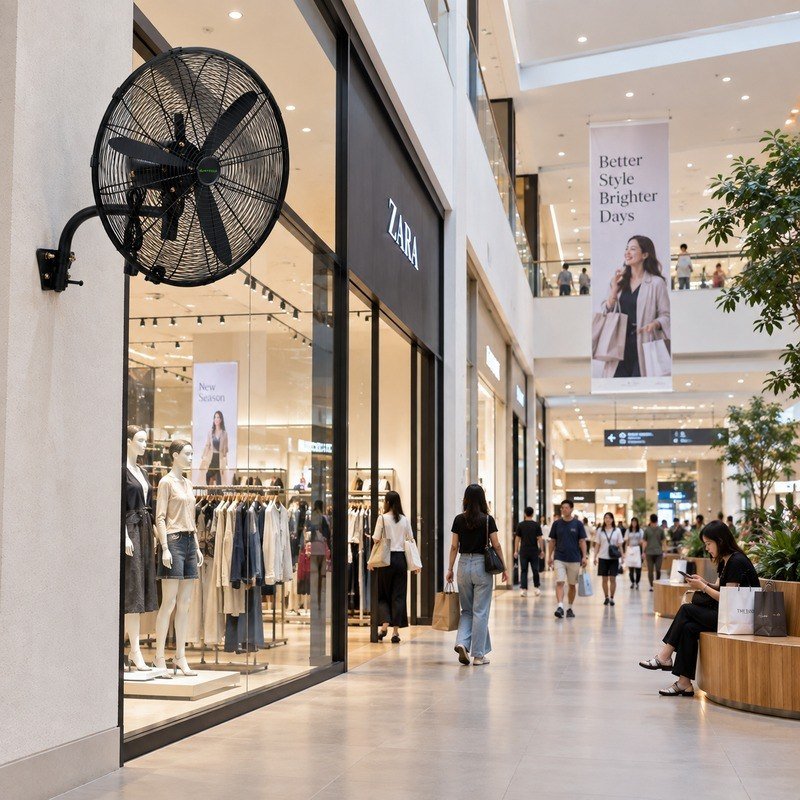

Retail & commercial spaces
Support air movement in shops, supermarkets and restaurants where floor space is valuable.

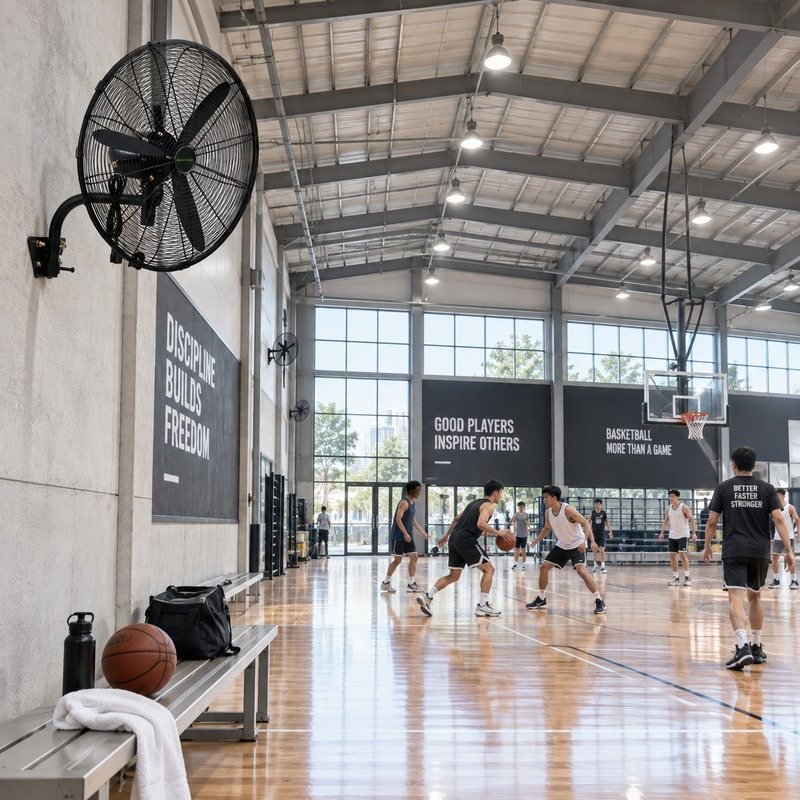

Sports & public spaces
Provide local air movement in gyms, indoor sports halls, churches and other large occupied spaces.
Application images are illustrative. Greenhouses, animal facilities and other humid or dusty locations require confirmation of environmental suitability and the motor’s protection rating. A circulation fan moves room air; exhausting heat, steam or fumes requires a ventilation system.
10 / Product questions
Industrial wall fan FAQs
Quick answers for product selection and ordering.
What sizes of industrial wall fan are available?
The standard range is 20, 24, 26 and 30 inches, with nominal metric size designations of 500, 600, 650 and 750 mm.
What airflow do the FA-series wall fans provide?
The listed airflow is 150 m³/min for FA-500W, 195 m³/min for FA-600W, 205 m³/min for FA-650W and 290 m³/min for FA-750W. Confirm test conditions and ratings for customized configurations.
Can I order a wall fan with remote control or a timer?
Wireless remote control and timer functions are optional on compatible configurations. Mechanical controls, wired controllers and pull-cord controls are also available. Confirm the exact functions before ordering.
Can the mounting bracket be installed in two ways?
The curved bracket supports the two orientations illustrated in the installation section. The selected assembly must be confirmed for that orientation and installed with suitable fixings on a structurally sound wall.
Are BLDC motors available?
Yes, BLDC motor options can be requested. The standard FA-series table must not be used as the performance specification for a different BLDC configuration; ask for its matched motor and airflow data.
Does an industrial wall fan replace an exhaust fan?
A wall circulation fan moves air within a space. It does not, by itself, provide controlled fresh-air supply or extract heat, moisture and contaminants outdoors. Where extraction is required, use a suitably selected exhaust system.
What information is needed for a quotation?
Send the size or model, quantity, destination country, voltage and frequency, control preference, bracket type, plug and cable requirements, color and packaging needs. Room dimensions and installation details also help with selection.
11 / Compare other formats
Related industrial fans
Different mounting formats suit different working areas.

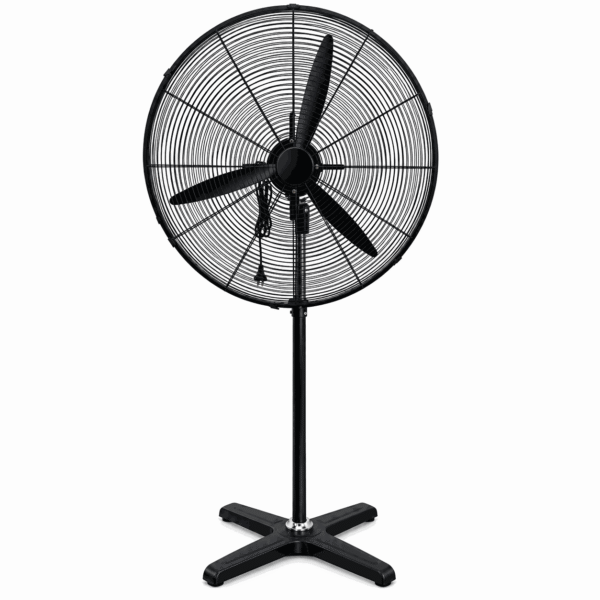

Industrial pedestal fans
A floor-standing format when you need height adjustment and flexible placement.
Explore industrial pedestal fans →

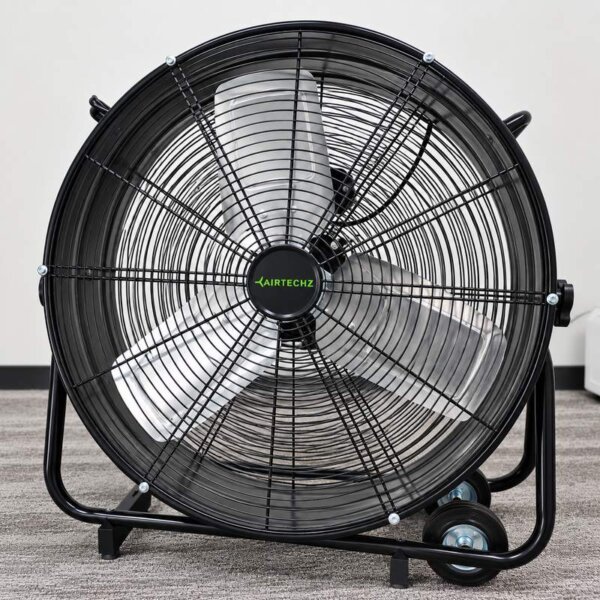

Drum fans
A low-mounted drum format for movable air circulation around large working areas.
Explore drum fans →

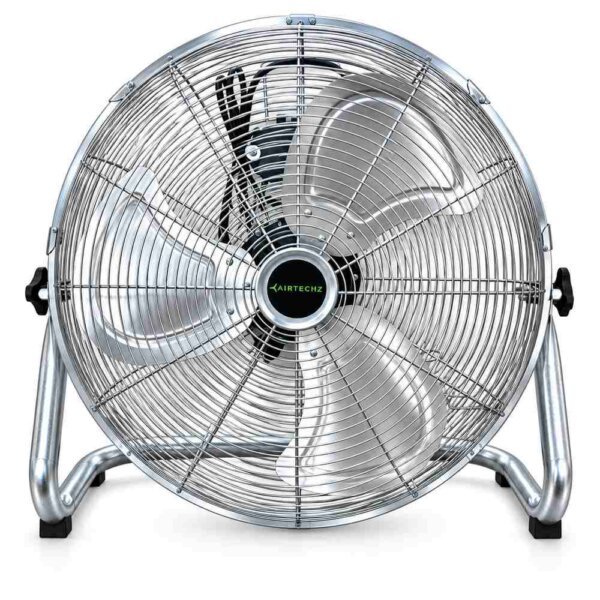

Industrial floor fans
