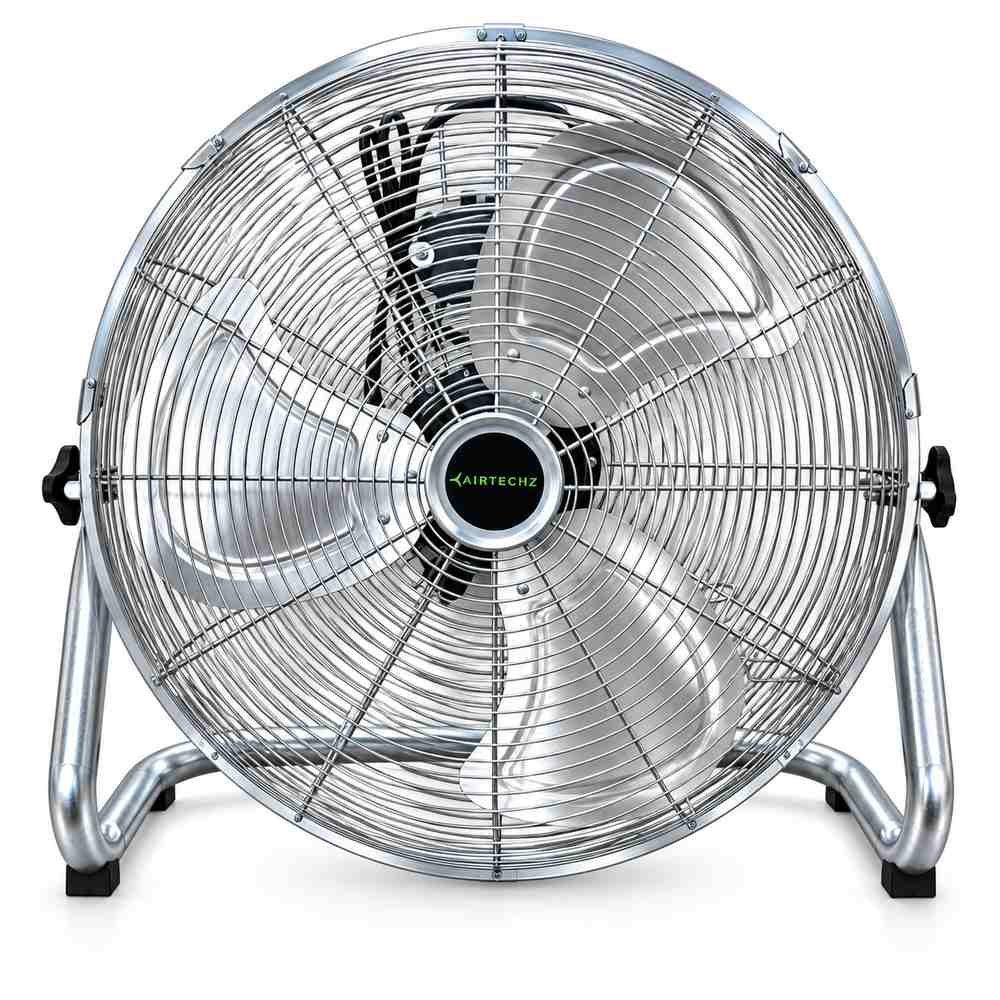

Industrial Floor Fan
Airtechz supplies industrial floor fans for factories, warehouses, workshops, garages, bakeries and commercial work areas, with 10–20 inch sizes, adjustable tilt, 3-speed control and OEM electrical options.
What Is an Industrial Floor Fan?

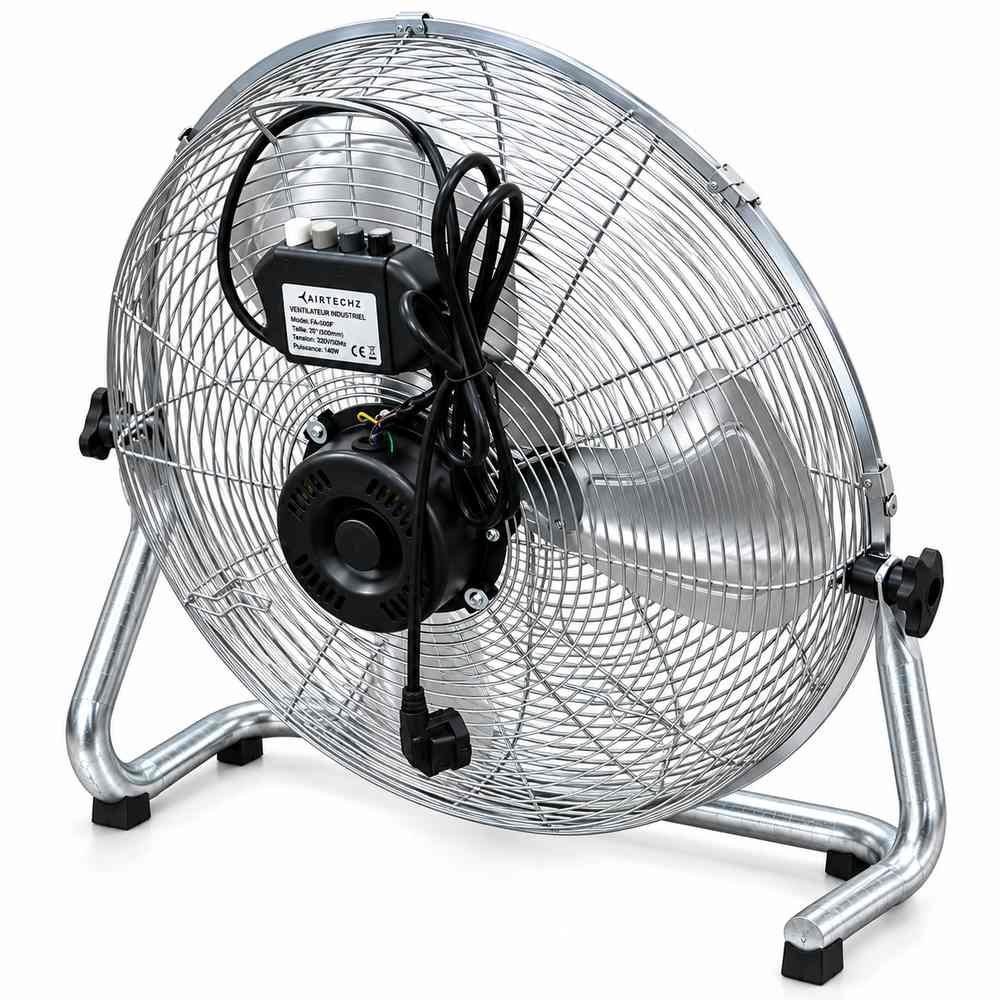

An industrial floor fan is a portable air-circulation fan designed to deliver strong, concentrated airflow from a low position. Unlike a pedestal fan, it uses a compact floor frame. Its fan head can be tilted to direct airflow upward, horizontally or downward according to the working area.
Key Advantages
Portable & Compact
Easy to carry and reposition between factories, warehouses, workshops, garages and construction work areas.
Multi-Angle Airflow
Adjustable vertical tilt directs airflow toward upper areas, horizontally or down toward floor surfaces.
Flexible Installation
Floor-standing use is standard, while customized wall-mount brackets can support installations where floor space is limited.
Sizes & Technical Specifications
The FA series covers six sizes from 250 mm / 10 inch to 500 mm / 20 inch.
| Model | Size | Voltage | Hz | Power | Air Volume | Speed | Noise |
|---|---|---|---|---|---|---|---|
| FA-250F | 250 mm / 10″ | 110–120 / 220–240 V | 50/60 | 30 W | 23 m³/min | 1350 RPM | 42 dB |
| FA-300F | 300 mm / 12″ | 110–120 / 220–240 V | 50/60 | 40 W | 36 m³/min | 1350 RPM | 45 dB |
| FA-350F | 350 mm / 14″ | 110–120 / 220–240 V | 50/60 | 60 W | 70 m³/min | 1350 RPM | 50 dB |
| FA-400F | 400 mm / 16″ | 110–120 / 220–240 V | 50/60 | 80 W | 88 m³/min | 1350 RPM | 52 dB |
| FA-450F | 450 mm / 18″ | 110–120 / 220–240 V | 50/60 | 100 W | 95 m³/min | 1350 RPM | 55 dB |
| FA-500F | 500 mm / 20″ | 110–120 / 220–240 V | 50/60 | 120 W | 100 m³/min | 1350 RPM | 58 dB |
Construction & Customization
The main components can be configured for different market and project requirements.

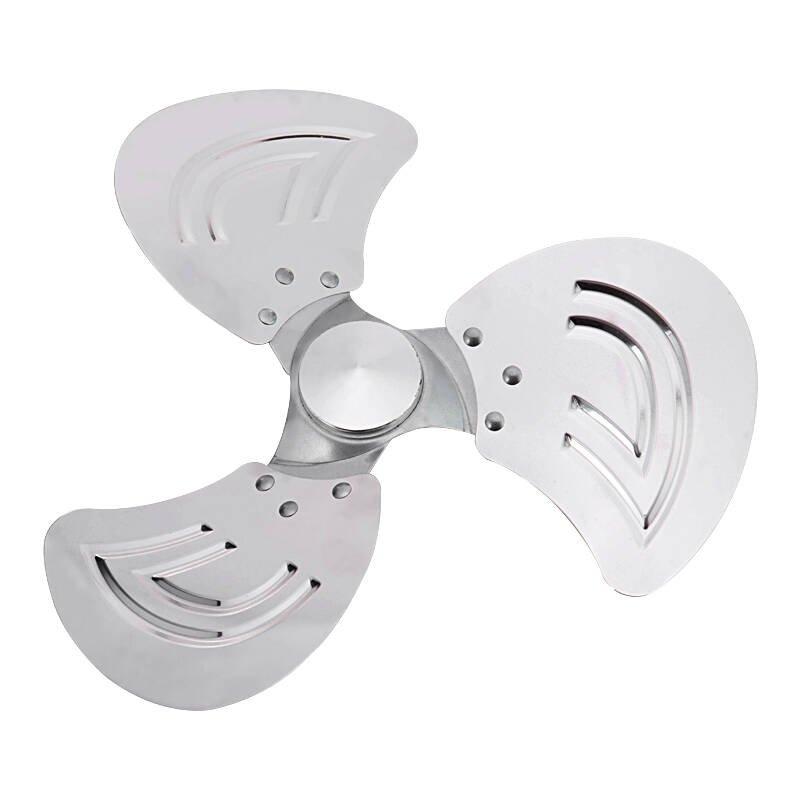

Fan Blade / Propeller
The standard product configuration uses three wide aluminum fan blades. Blade material and configuration can also be customized for different market requirements.

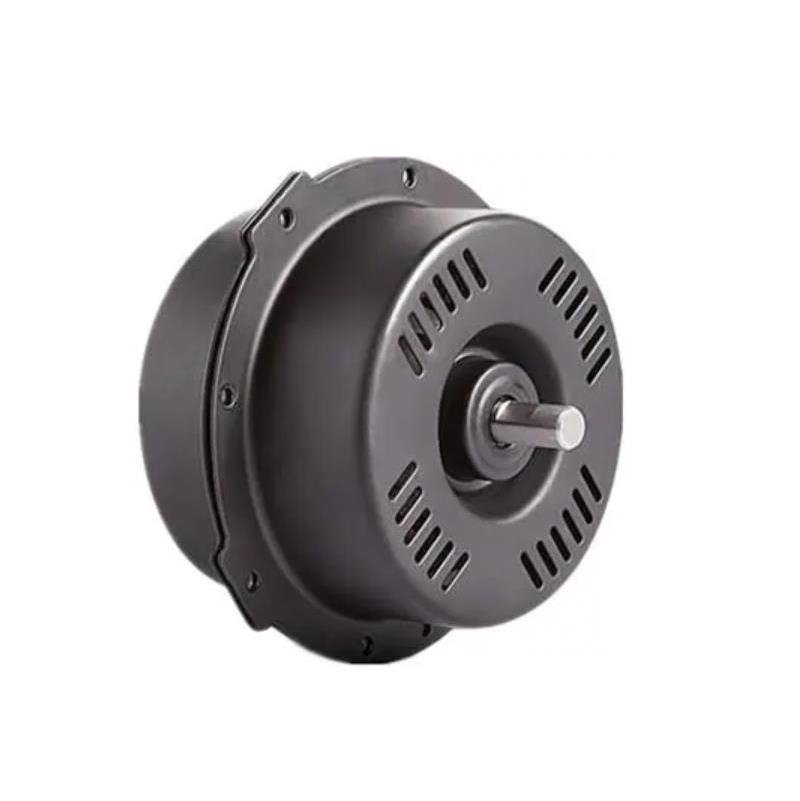

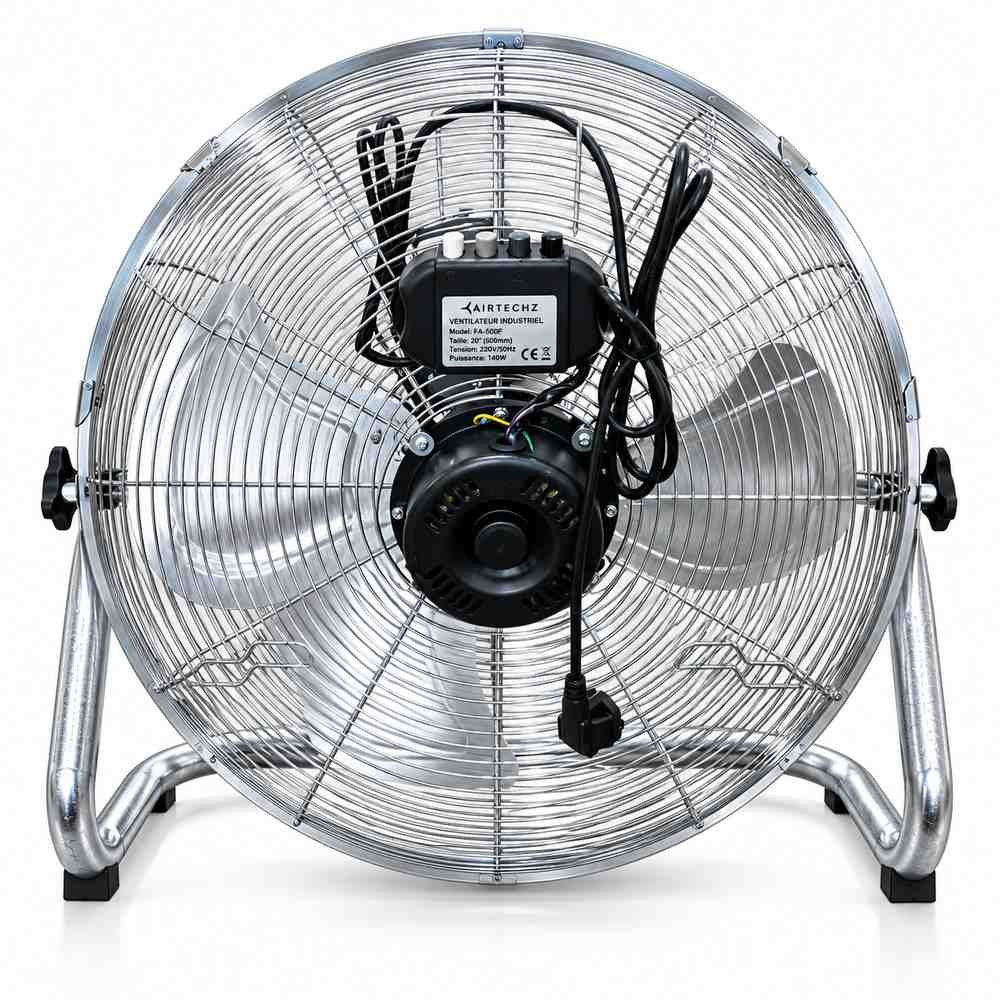

Motor Options
The standard datasheet configuration uses a copper-wire motor. OEM configurations can include copper-coil, aluminum-coil or brushless DC motor options according to market requirements.

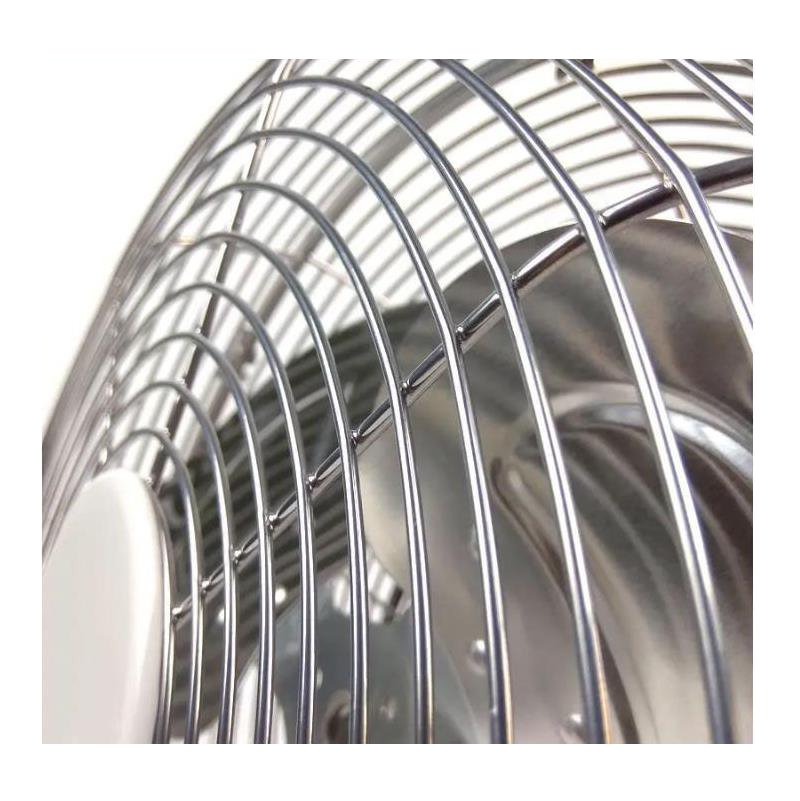

Front & Rear Safety Grille
Steel-wire safety grilles protect the blade area. Protective, chrome and black-finish options are available, with grille strength or material customizable for different requirements.

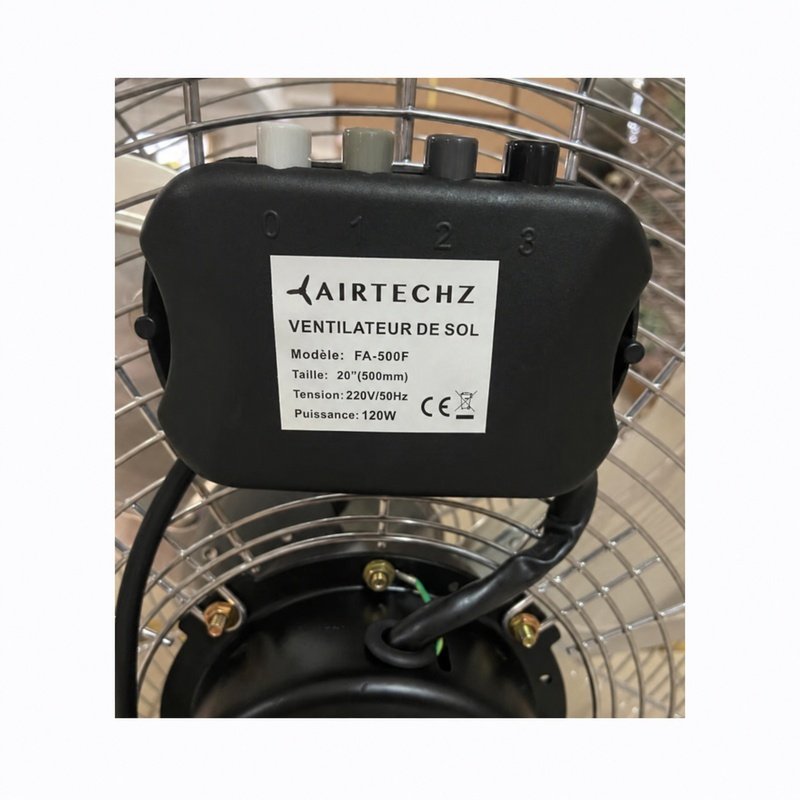

3-Speed Control
Low, medium and high speed settings provide adjustable airflow for different working conditions. The switch/control box is positioned for convenient operation.

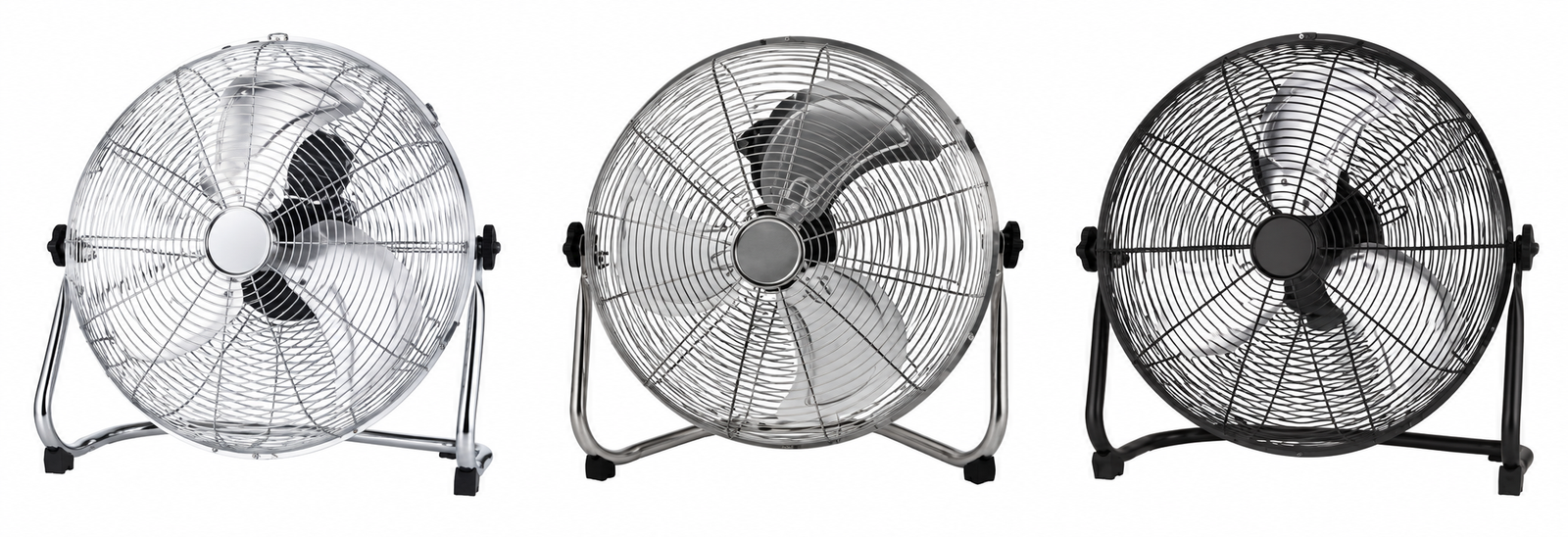

Supporting Frame & Installation Options
Strong tubular steel frames provide a stable floor-standing base. Supporting-frame and bracket styles can be customized for different installation conditions.
Optional wall-mount brackets allow the fan to be installed away from the floor where required.

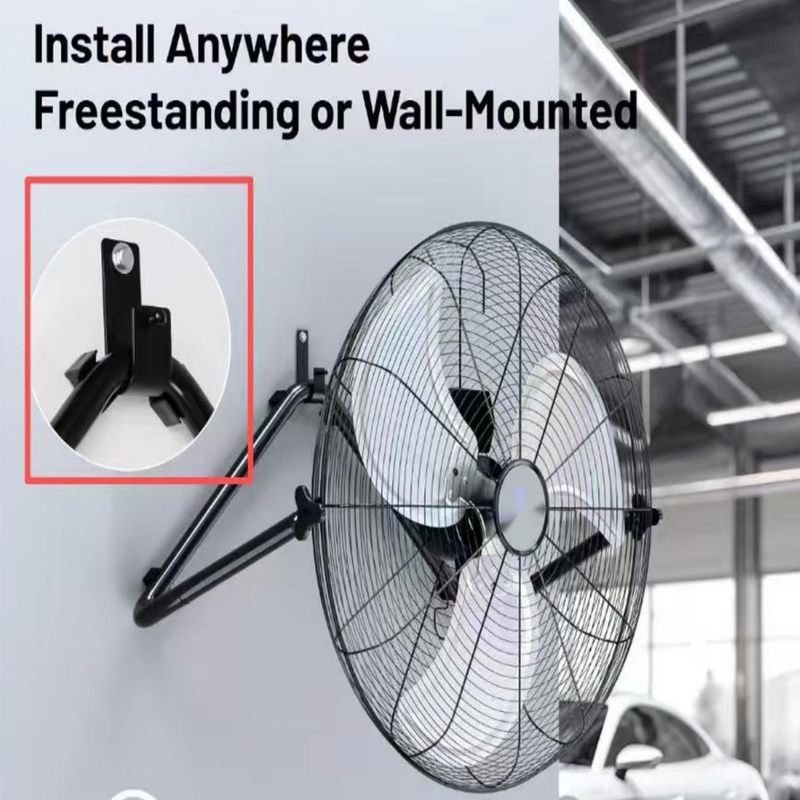

Floor Standing or Wall Mounted
The adjustable fan-head design can be combined with different supporting brackets for flexible positioning and installation.

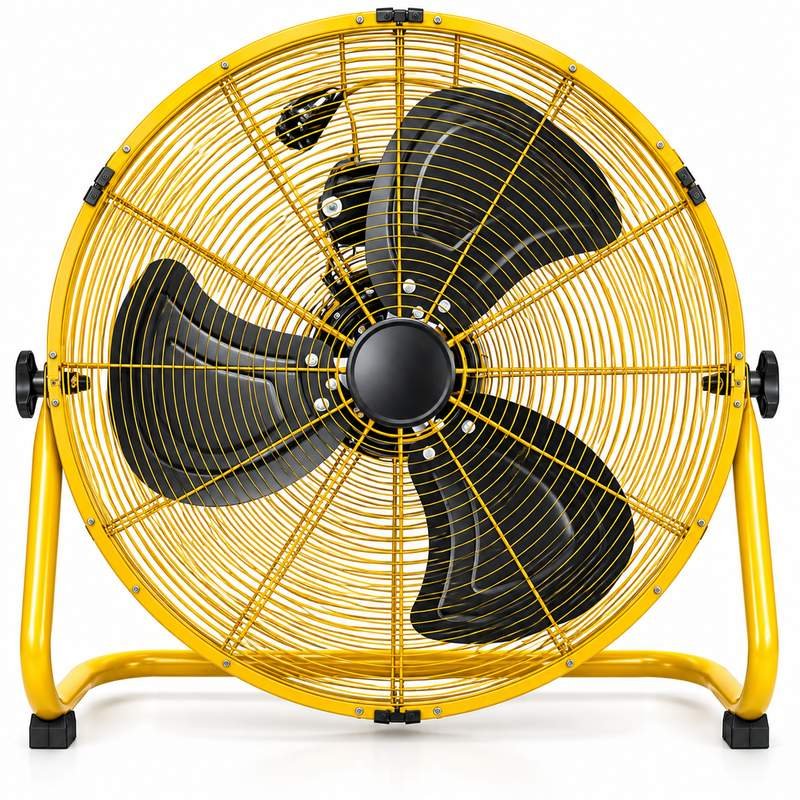

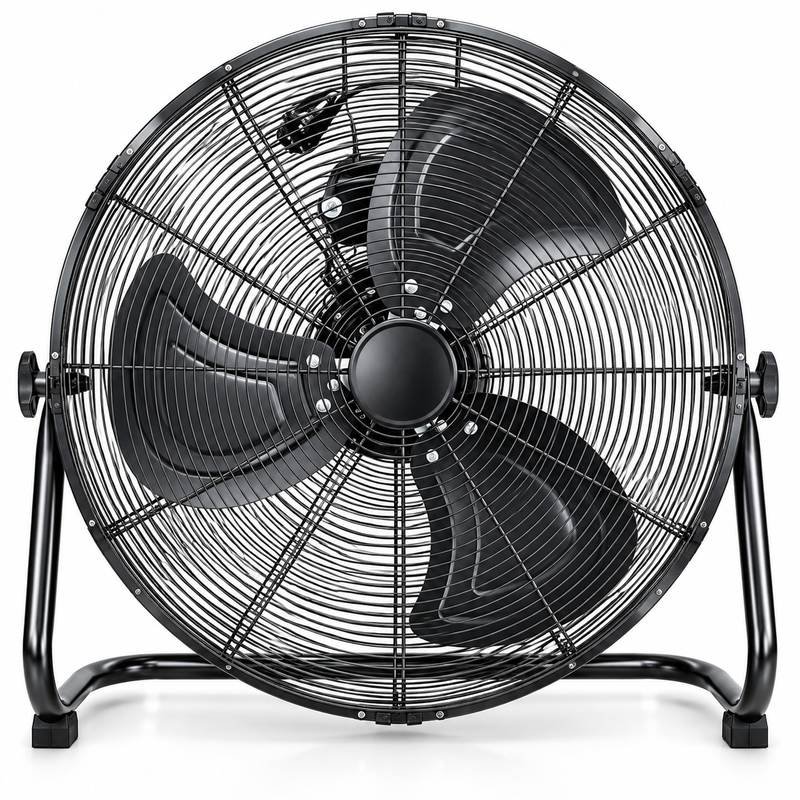

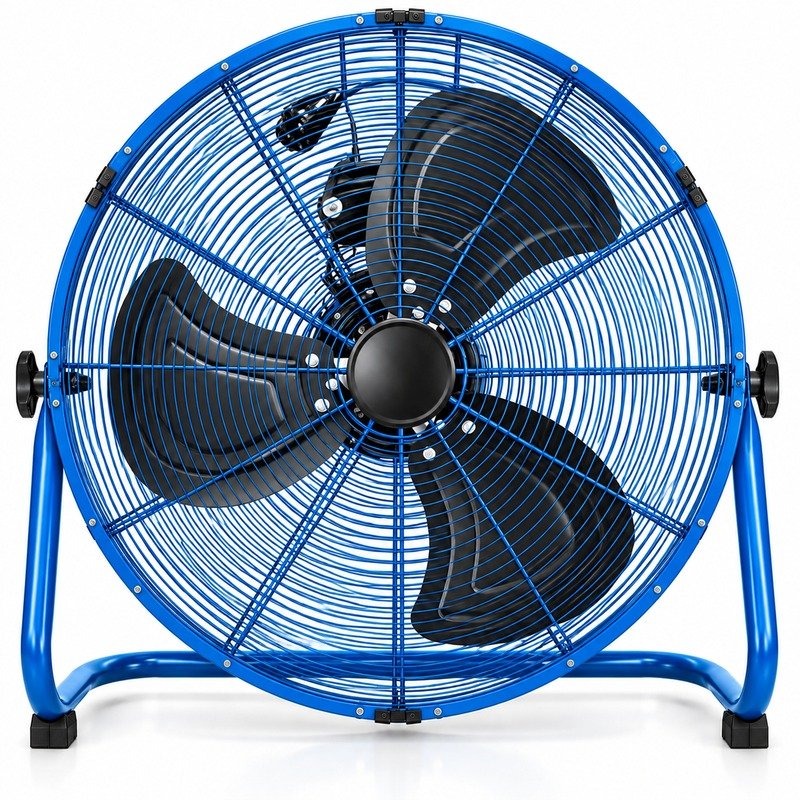

Color, Electrical & Packaging Options

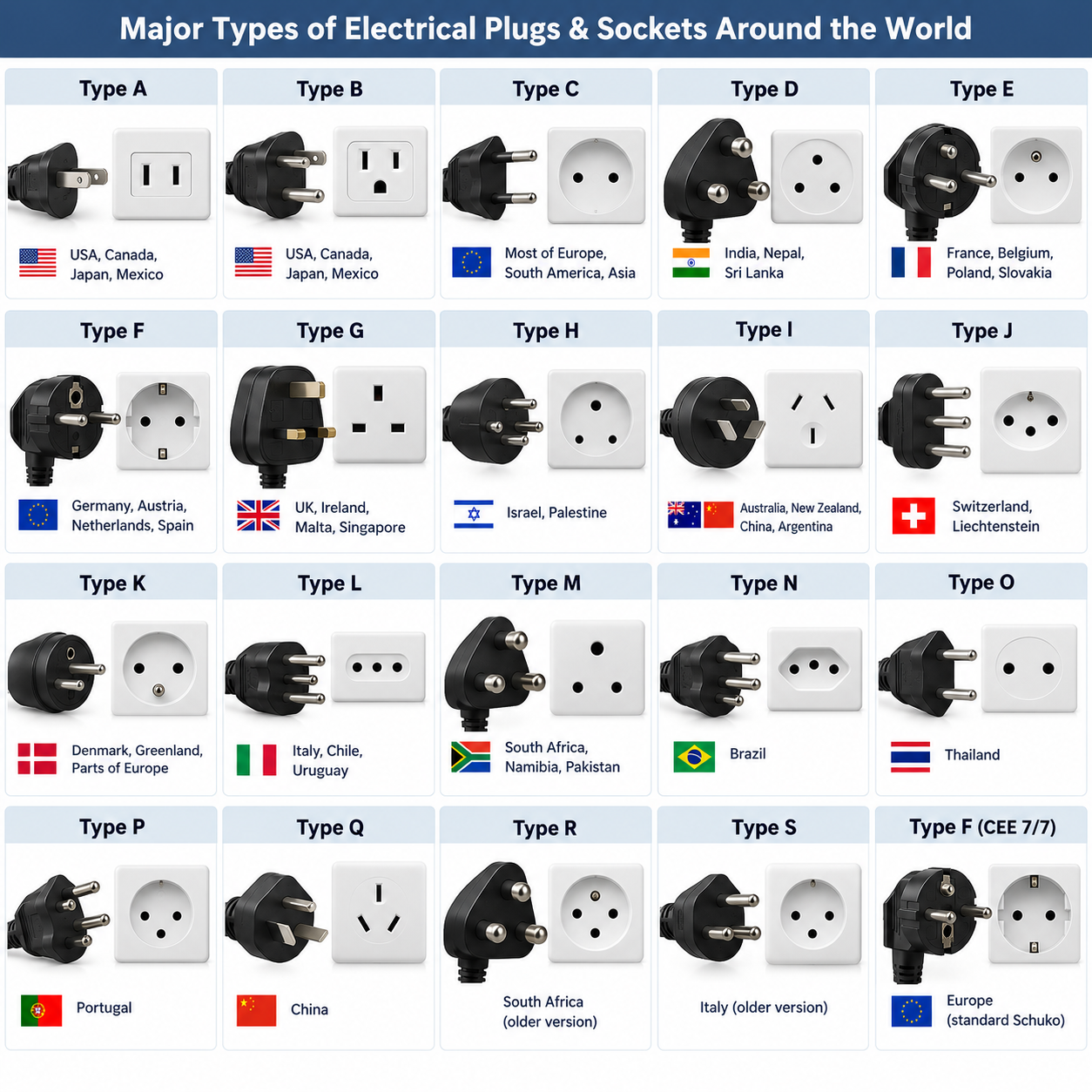

Voltage, Plug & Cord Customization
Voltage/frequency options include 110V/60Hz, 220V/50Hz, 220V/60Hz and 110V/50Hz. Plug type, logo, rating plate and packaging can be customized. The standard cord specification supplied is 3×0.75 mm², 1.8 m / 6 ft.
The supplied product information lists CE and SAA certificate options; required certification should be confirmed for the destination market and order.
Industrial & Commercial Applications

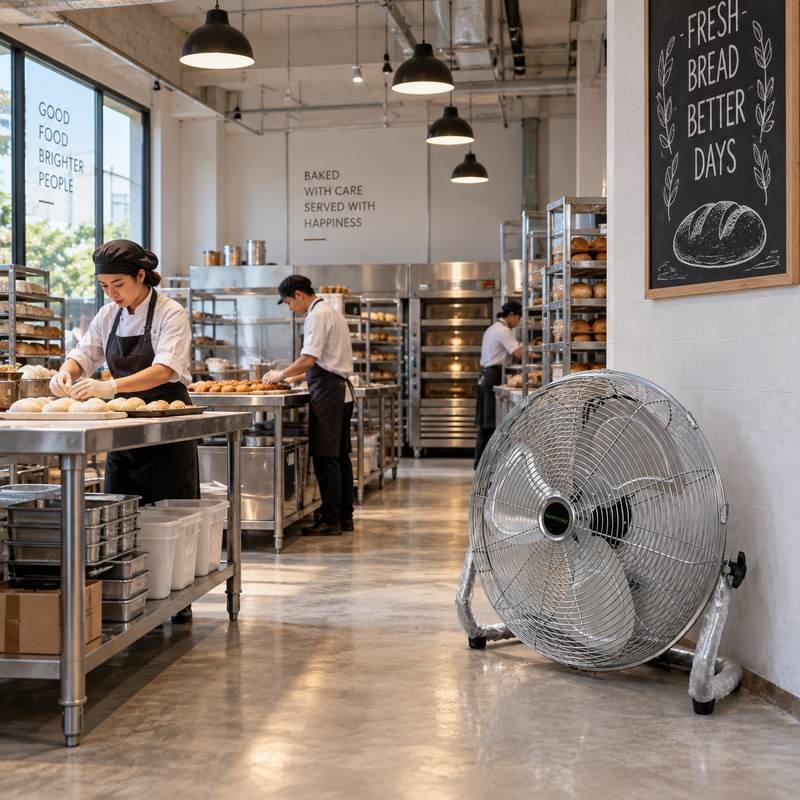

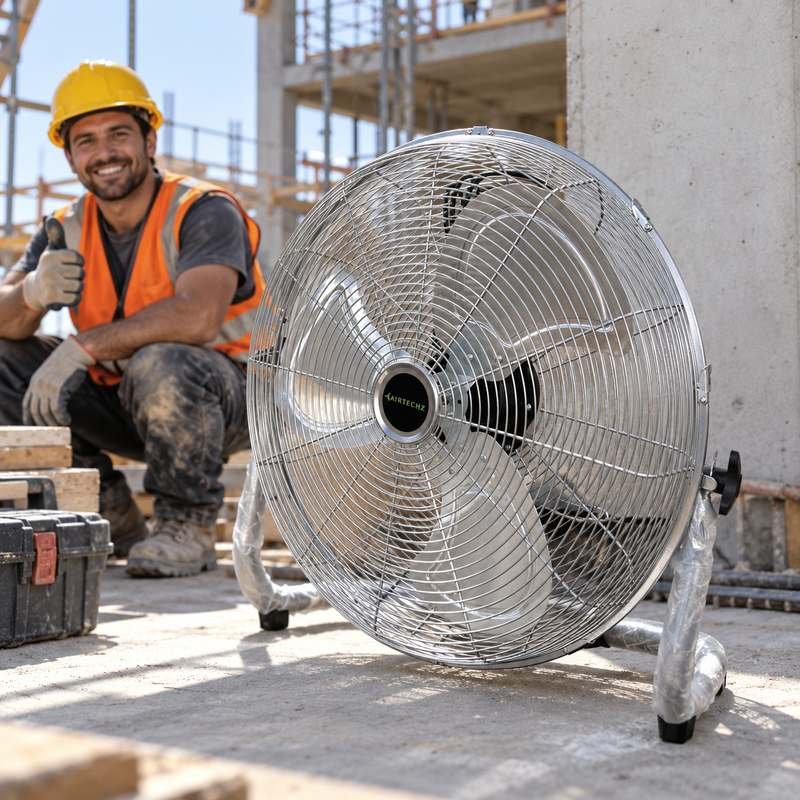

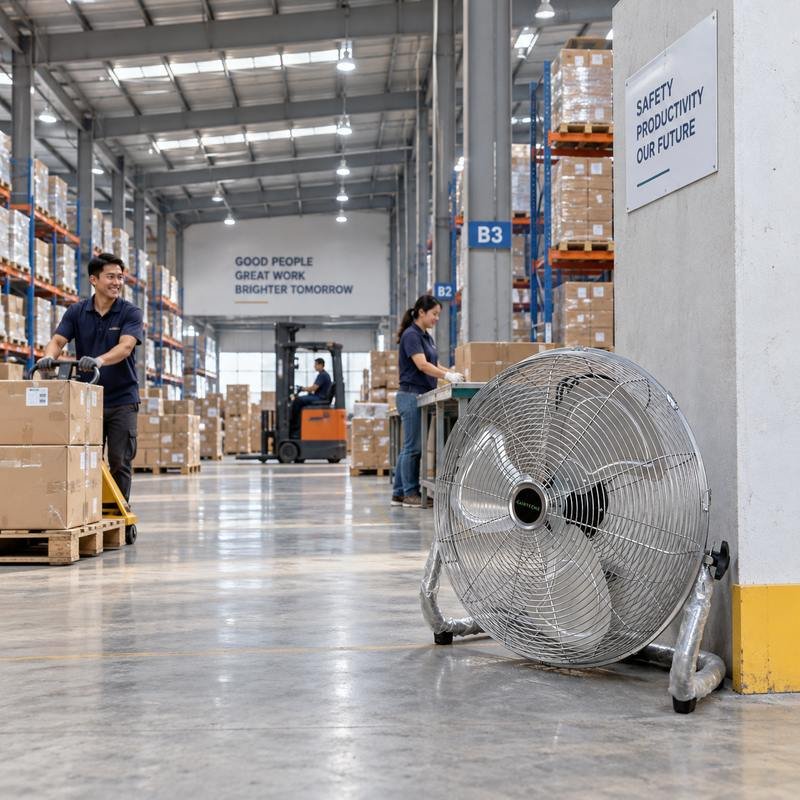

Industrial floor fans can be used in factories, warehouses, workshops, garages, construction sites, bakeries and other commercial or industrial spaces requiring portable air circulation. Adjustable downward airflow can also be directed toward wet floor surfaces to support faster drying and help reduce slippery conditions.
Frequently Asked Questions
What sizes are available?
10, 12, 14, 16, 18 and 20 inch models, corresponding to 250–500 mm.
Can airflow direction be adjusted?
Yes. The tilt mechanism allows upward, horizontal and downward airflow direction.
Can it be wall mounted?
A customized wall-mount bracket can be supplied for suitable installations.
Can voltage and plug be customized?
Yes. Multiple voltage/frequency configurations and plug types can be supplied for destination markets.
Is OEM branding available?
Yes. Logo, rating plate and packaging customization are available subject to order requirements and MOQ.
What speed settings are available?
The supplied product configuration uses three speeds: Low, Medium and High.

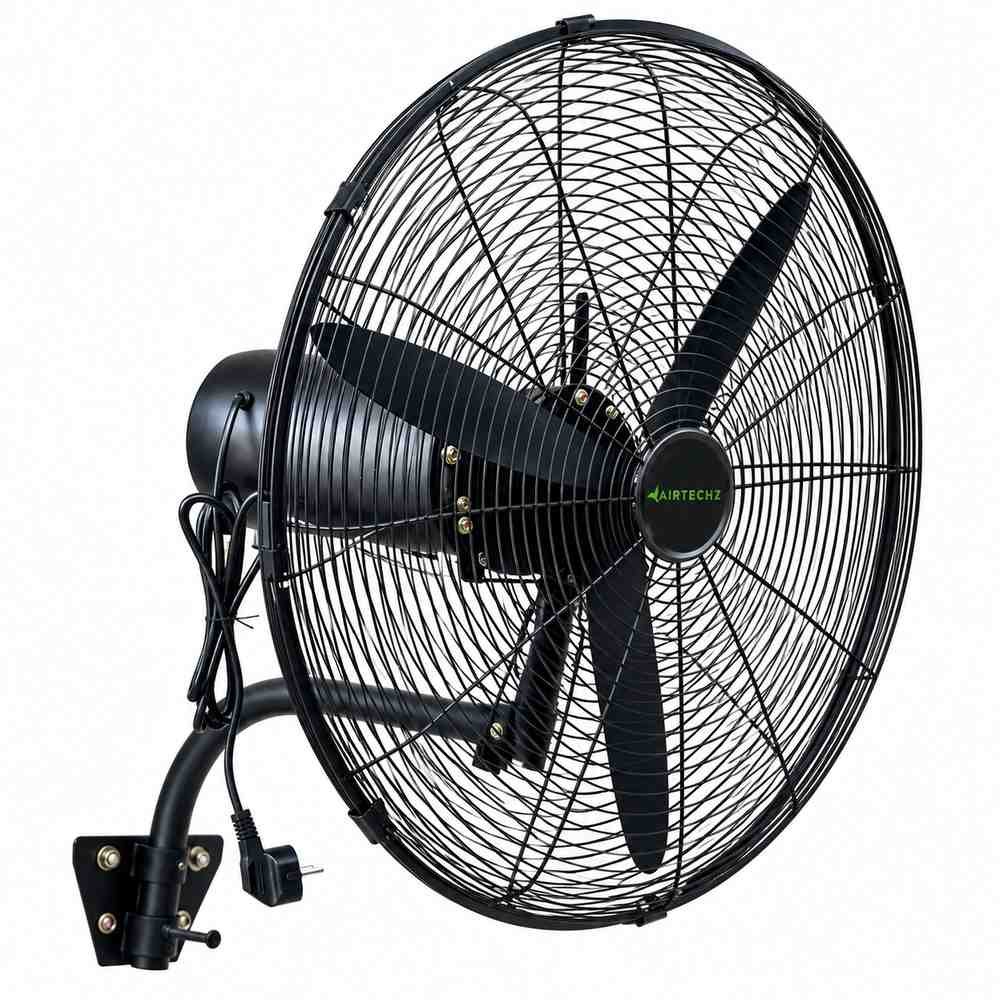

Related Industrial Fans
