What is drum fan?
A drum fan is a type of portable industrial fan with a cylindrical, barrel-shaped housing around the fan blade. The name comes from its “drum” or barrel-like shape.
We offers 24inch/600mm, 30 inch/750mm, 36 inch/900mm, 42inch/1000mm, 48 inch/1200mm sizes.
Both 220V/50hz and 110V/60HZ are available.
Customized colors are optional.
Drum Fan Components

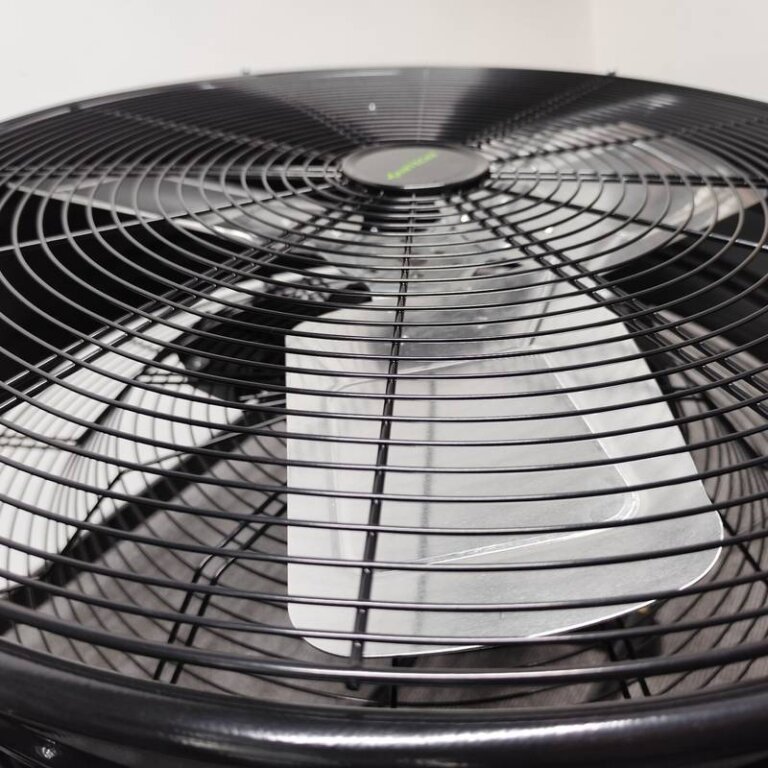

Housing & Grill

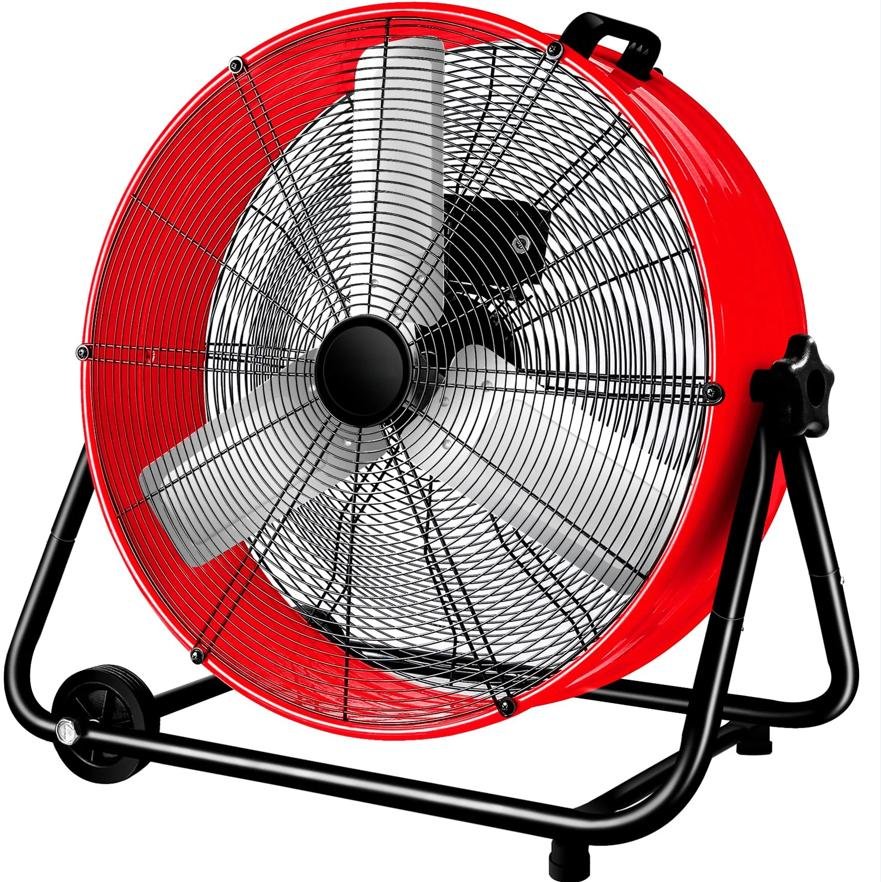

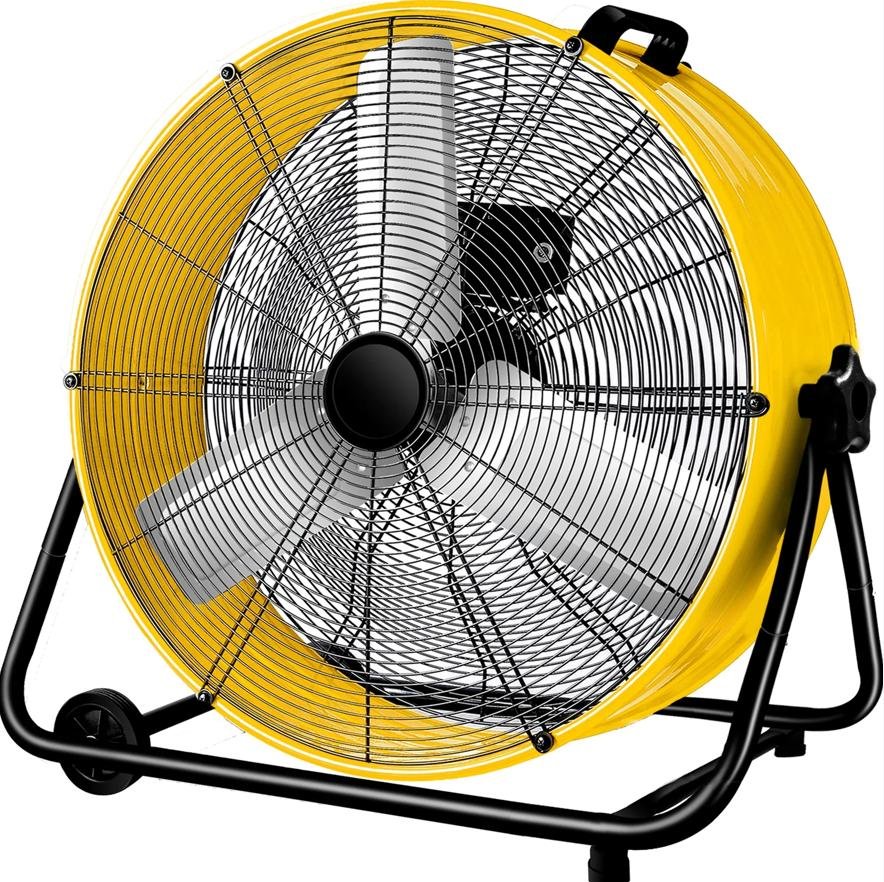

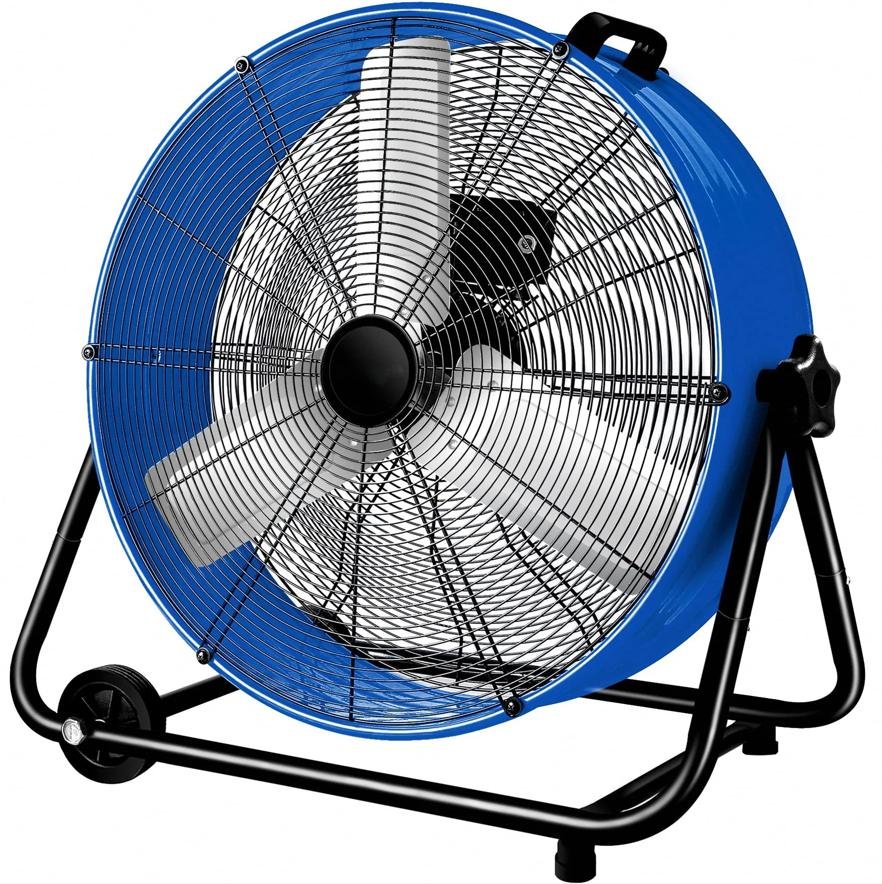

Airtechz drun fan is made of reinforced metal sheet housing with powder coating & robust grill for safety protection during operation. We offers customized colors on its housing if need,such as yellow,red,blue,pink,etc. MOQ is required for colors customization.

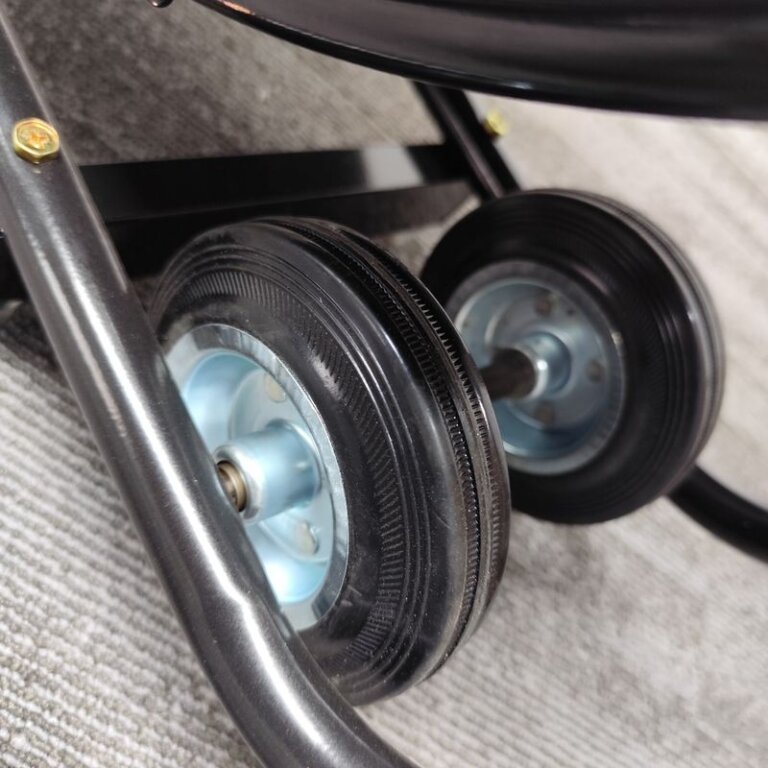

Wheels
we use rubber & polyurethane material for the wheels of our drum fans. The wheels are have following features:
- Smooth mobility & Long lifespan
- Easy repositioning & Lockable wheels available
Suprior materials & components makes our drum fans different.

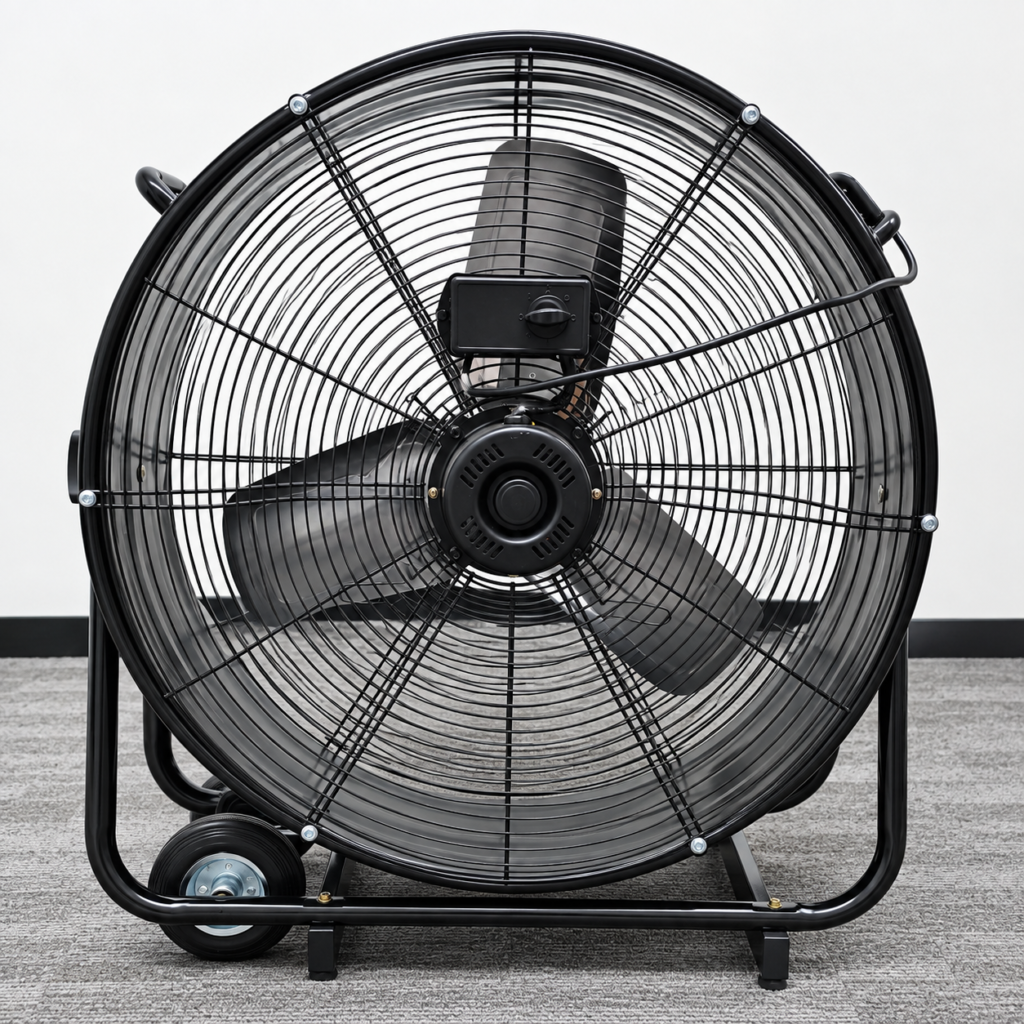

Motor
The motor of drum fans are made of high speed copper coil motor. We offer different options of voltages,including 110v/60hz,220v/50hz,220v/60hz.

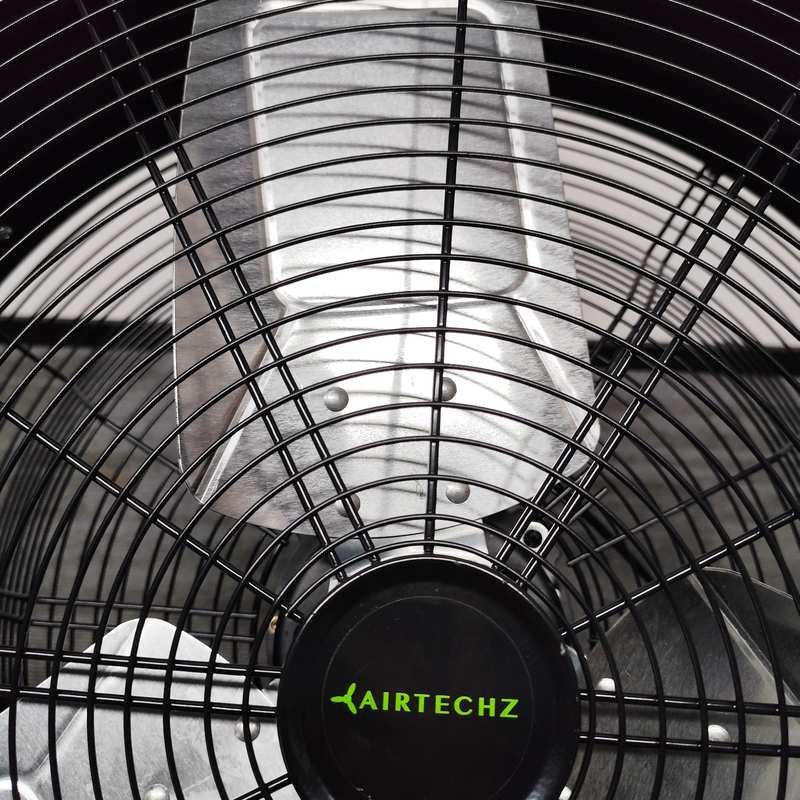

Fan blades/propeller
Fan blades are made of casting aluminium alloy with excellent balance & robust material which ensure the drum fans works efficiently and silently.
Why Choose AIRTECHZ Drum Fans?
Powerful Airflow & Easy Mobility
A powerful motor and large metal fan blades deliver strong airflow for cooling and air circulation across large areas. Smooth-rolling wheels and convenient handles make the fan easy to move between work areas.
Adjustable Airflow Direction
The fan can be tilted vertically through 180° to direct airflow where it is needed. Reposition the fan horizontally to face the desired direction, giving you flexible airflow coverage across different areas.
Reliable Performance at an Affordable Cost
A reliable motor and ball bearings support dependable operation. With an affordable purchase cost, AIRTECHZ drum fans offer a practical cooling solution for customers with a limited budget.
TECHNICAL DATASHEET
| size (inch) | 24,30,36,42,48 |
| casing | steel with powder coating |
| blade | cast aluminium alloy |
| motor | AC motor |
| direct drive | 24,30,36 inch |
| belt drive | 42,48 inch |
| voltage | 110-400V 50/60Hz |
| adjustable speed | 3 |
Drum Fan Technical Specifications
Compare the 24, 30 and 36 inch APB-D1 models.
| Model | Fan size (mm / inch) | Power (W) | Airflow (m³/min) | Speed (RPM) | Noise (dB) |
|---|---|---|---|---|---|
| APB-60-D1 | 600 / 24 | 260 | 210 | 1100 | 64 |
| APB-75-D1 | 750 / 30 | 420 | 260 | 1100 | 68 |
| APB-90-D1 | 900 / 36 | 600 | 290 | 1100 | 70 |
Power supply options: 110–120 V or 220–240 V; 50/60 Hz. Please specify the required configuration when ordering.
These models feature a 100% pure copper-wire motor, an all-metal body and bracket, three aluminum fan blades, and a U-shaped base with two wheels.
Customization
Application
- Factories & Manufacturing Plants – Improve air circulation and help reduce heat buildup around production areas.
- Warehouses & Distribution Centers – Promote airflow across large open spaces and improve workplace comfort.
- Workshops & Garages – Provide direct, high-volume airflow for automotive, mechanical and maintenance work areas.
- Agricultural Buildings – Support air circulation in barns, livestock areas, greenhouses and farm buildings.
- Commercial Spaces – Suitable for gyms, showrooms, event spaces and other large indoor areas.
- Construction & Temporary Work Areas – Easy to move between locations where temporary air circulation is needed.
Trade information & Contact us for more
- MOQ 30 units for standard colors
- Delivery period: 30 days
- warranty 12 month
- trade term
- sales@airtechz.com
Packaging & Container Loading

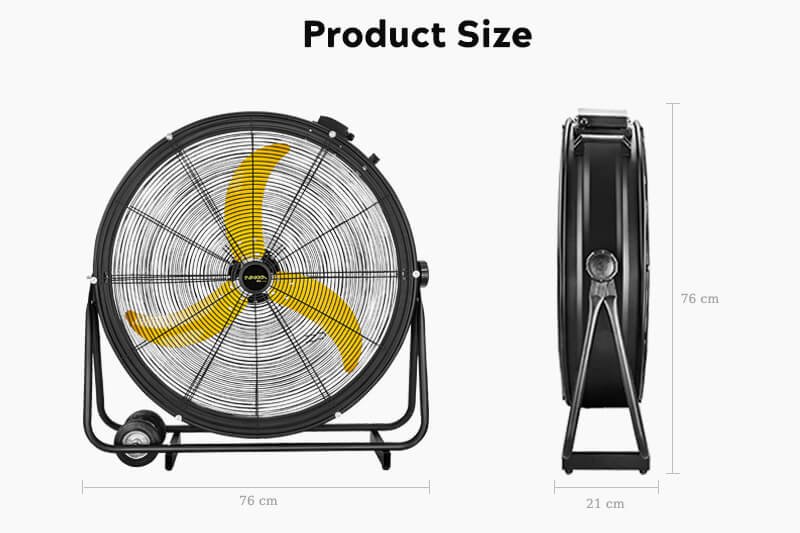

1 unit per carton. Dimensions and weights are shown for each model below.
| Model | Carton size L × W × H (cm) | Net wt. (kg) | Gross wt. (kg) | Carton volume (m³) | 20GP (units) | 40HQ (units) |
|---|---|---|---|---|---|---|
| APB-60-D1 | 74 × 22.5 × 76.5 | 12.5 | 14 | 0.127372 | 204 | 518 |
| APB-75-D1 | 86 × 24 × 91 | 17 | 18.5 | 0.187824 | 138 | 351 |
| APB-90-D1 | 99 × 31.5 × 99.5 | 23 | 25 | 0.310291 | 84 | 213 |
| APB-105-D1 | 115.2 × 38 × 117 | 38 | 41 | 0.512179 | 51 | 129 |
| APB-120-D1 | 130 × 38 × 130 | 44 | 47 | 0.6422 | 40 | 103 |
Container loading quantities are for reference. Final quantities depend on the packing and loading arrangement.
