AIRTECHZ · FA10 Series

Wall Mounted Exhaust Fan for Commercial Ventilation

A compact, robust exhaust fan for stores, restaurants, cafés and garages. Choose a shutter or grille design in six sizes, from 8 to 18 inches.

The FA10 series combines a square mounting panel, an axial propeller and a low-noise ball-bearing motor for everyday air extraction.

200–450 mm220 V · Single phase50/60 HzMOQ: 50 units

Request a quotation View technical specifications

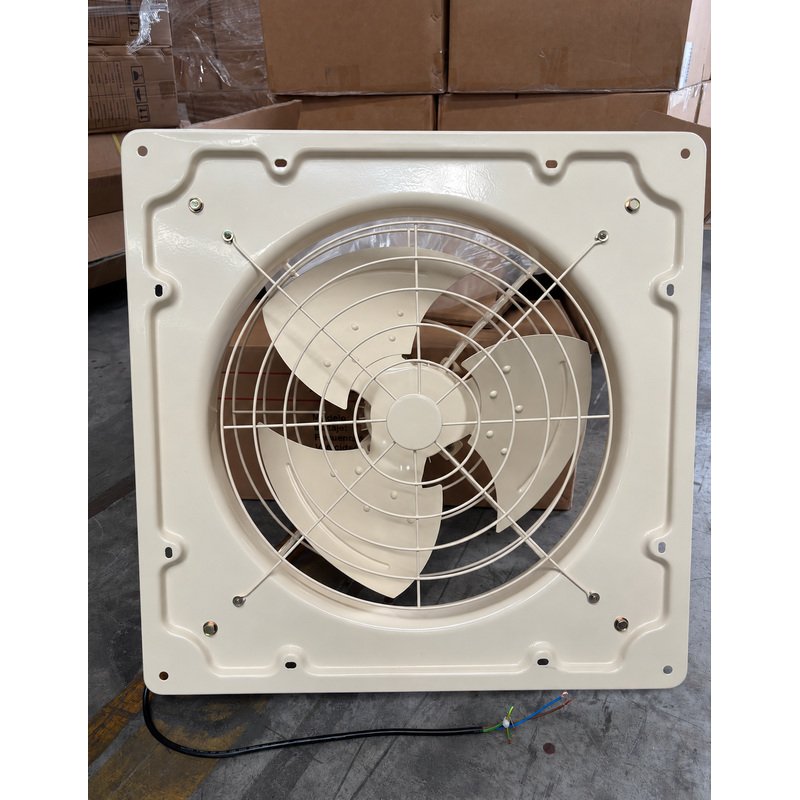

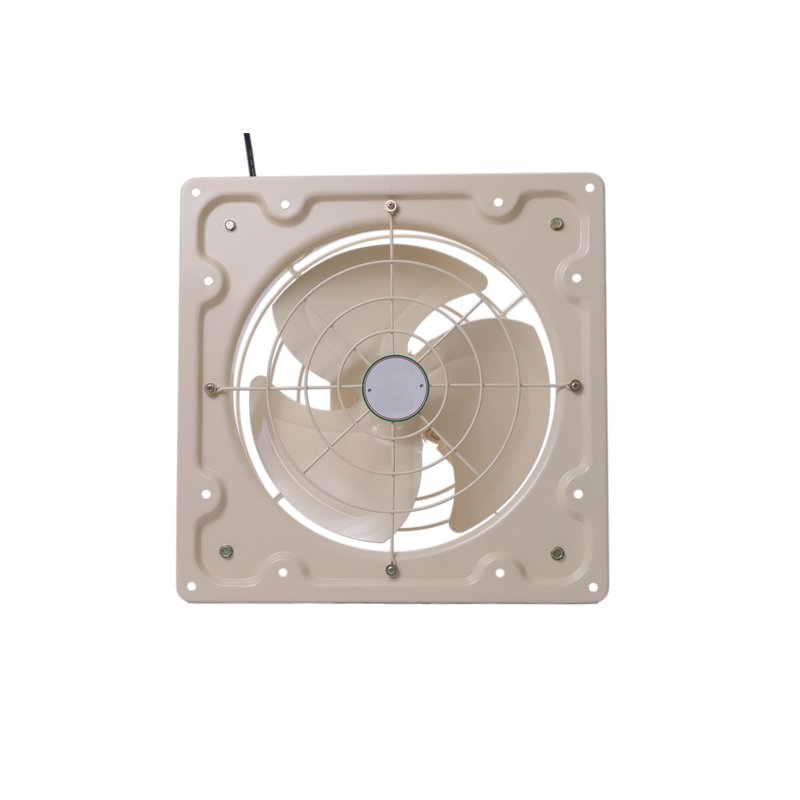

Front view of AIRTECHZ FA10 wall mounted exhaust fan with square panel and wire grille

Choose the outlet design

Shutter or front-and-rear grille

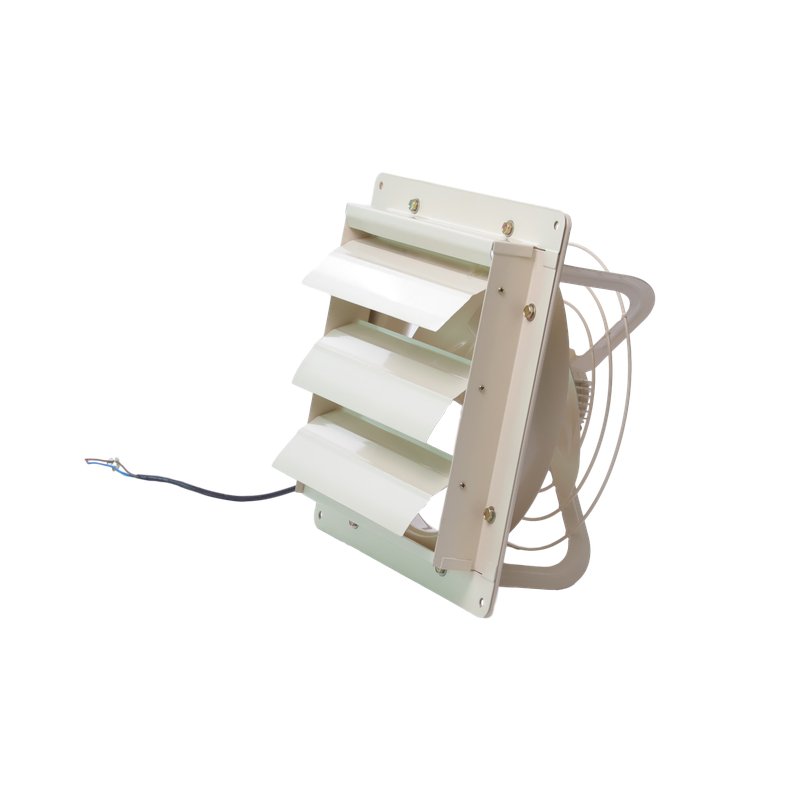

FA10 shutter exhaust fan with open horizontal louvers — Shutter design · S-suffix models

Shutter design

The louvers open when the fan starts operating. This version is suitable where a shuttered outlet is preferred. The shutter assembly adds depth and weight; use the S-model packing figures when planning your order.

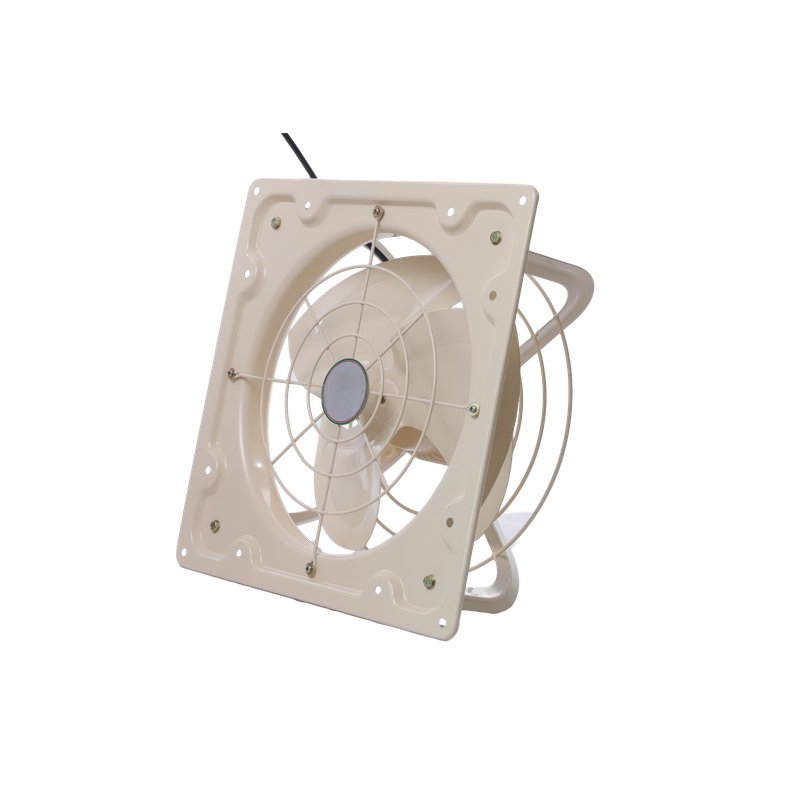

FA10 grille-type wall exhaust fan shown at an angle — Grille design · Standard FA10 models

Front-and-rear grille design

Wire guards surround the propeller area. The compact square panel provides mounting points around the perimeter, while the rear guard supports the motor assembly.

White is the standard product colour. The shutter helps limit wind and rain entry, but an IP rating or weatherproof installation specification has not been provided. Confirm the installation conditions before ordering.

Product construction

Robust housing. Accessible mounting. Ball-bearing motor.

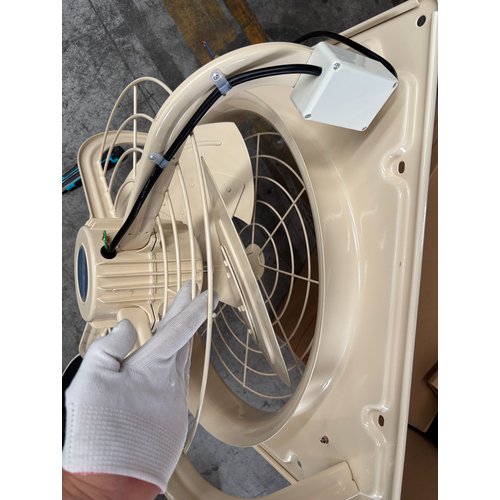

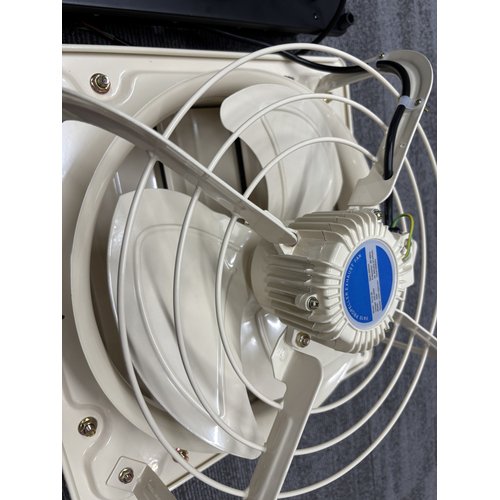

Rear guard and motor housing on the commercial wall exhaust fan

Ball-bearing motor

A rolling-bearing motor is used for smooth operation and long service life. Rated sound levels vary by size, from 46 to 70 dB(A).

Axial propeller

The blade profile is CAD optimised for stable airflow. Select the model by its stated airflow and power rather than blade diameter alone.

Square mounting panel

A compact, robust housing with perimeter fixing points makes wall mounting straightforward. Confirm the opening and fixing positions before fabrication.

Actual product details

A larger, thicker housing

This model uses a larger, thicker housing than the economy wall exhaust fan shown alongside it. The side-by-side photograph lets buyers compare the panel profile and overall construction.

For a direct performance comparison, match the fan size and operating conditions as well as the housing dimensions.

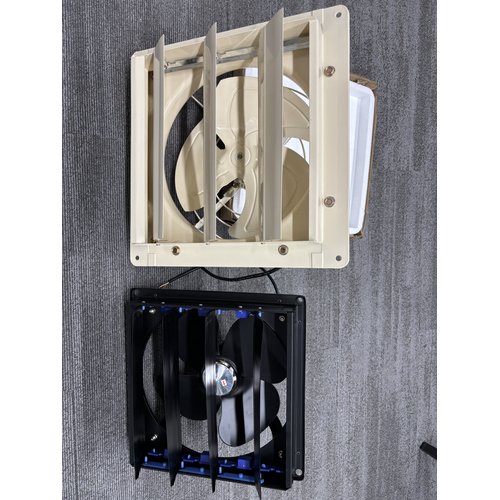

Side-by-side housing comparison of the FA10 exhaust fan and an economy wall exhaust fan — Side-by-side construction comparison

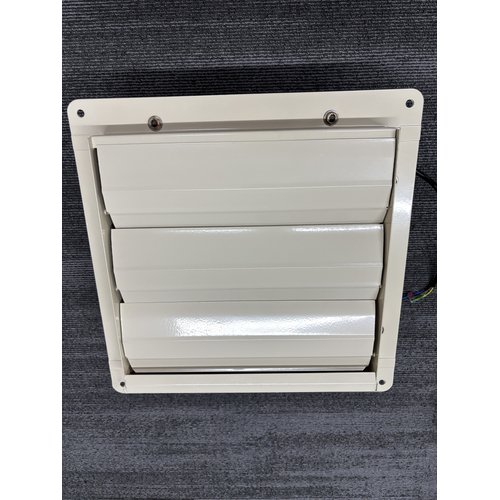

Actual front view of the shutter model in its closed position — Actual product · Shutter front view

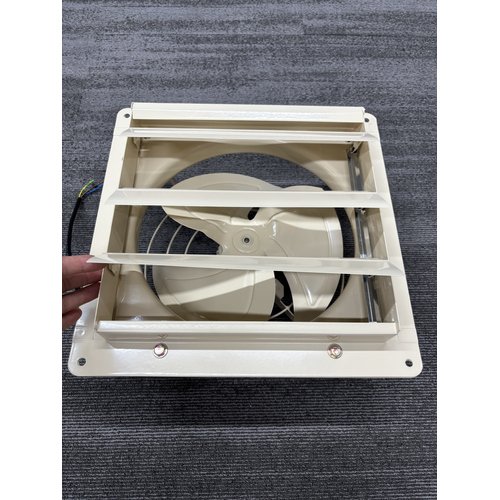

Close-up of horizontal louvers and shutter frame — Louver and frame detail

Model selection

FA10 technical specifications

All models below are rated at 220 V, single phase, 50/60 Hz. The series covers 20–320 W and listed airflow from 600 to 3,480 m³/h.

FA10 series performance
Model	Size (in / mm)	Power (W)	Speed (r/min)	Airflow (m³/min)	Airflow (m³/h)	Noise dB(A)
FA10-20	8 / 200	20	1,400 / 1,600	10	600	46
FA10-25	10 / 250	30	1,400 / 1,600	15	900	50
FA10-30	12 / 300	45	1,400 / 1,600	21	1260	55
FA10-35	14 / 350	100	1,400 / 1,600	45	2700	60
FA10-40	16 / 400	150	1,400 / 1,600	56	3360	68
FA10-45	18 / 450	320	1,400 / 1,600	58	3480	70

The m³/h values are converted from m³/min × 60. The supplied performance table lists standard FA10 models; separate shutter-model performance is not stated. Static pressure, the airflow test pressure and the noise measurement distance are not provided. Confirm the required operating duty with AIRTECHZ before final selection.

Dimensions for installation planning

The dimensional schedule below applies to the standard grille-type models. All dimensions are in millimetres. A–E follow the product drawing reference.

FA10 wall mounted exhaust fan dimension drawing showing front and side views with A B C D and E measurement references — Standard grille model · Front and side views · A–E correspond to the dimension table below.

Standard FA10 dimensional schedule
Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
FA10-20	303	273	150	6.5	142
FA10-25	350	326	160	8.5	167
FA10-30	400	370	200	8.5	171
FA10-35	440	408	204	8.5	175
FA10-40	490	454	248	10.5	187
FA10-45	605	560	280	10.5	260

These are drawing dimensions, not a confirmed wall cut-out schedule. Request the model-specific installation drawing, including shutter depth if applicable, before making the opening.

Commercial applications

Local air extraction for everyday spaces

The FA10 series is intended for ventilation in stores, restaurants, cafés, garages and similar commercial or domestic spaces.

Stores and cafés: remove stale air where a suitable replacement-air route is available.
Restaurants: general room ventilation. Confirm suitability separately for cooking grease or high-temperature exhaust.
Garages: general air exchange. Tell us if the air contains fumes, flammable vapours or corrosive contaminants.

For selection, send the room dimensions, use of the space, required airflow, wall opening size and whether the fan discharges directly outdoors or through a duct.

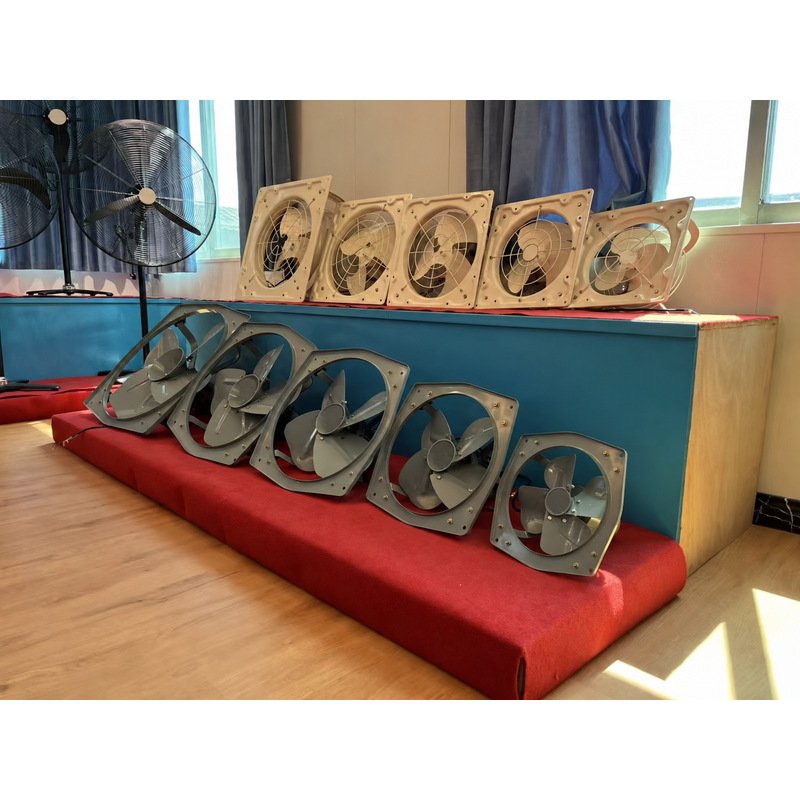

Multiple sizes of commercial wall mounted exhaust fans displayed together — FA10 range · Six nominal sizes

Packing and order information

One piece per carton. Standard colour: white. Minimum order quantity: 50 units. Confirm model quantities and packing requirements in your quotation.

Grille and shutter model packing comparison
Grille model	N.W. / G.W. (kg)	Carton (cm)	Shutter model	N.W. / G.W. (kg)	Carton (cm)
FA10-20	2.7 / 2.9	31 × 17 × 31	FA10-20S	4.0 / 4.3	31 × 22 × 31
FA10-25	3.2 / 3.8	36 × 18 × 36	FA10-25S	5.0 / 5.6	36 × 23.5 × 36
FA10-30	4.0 / 4.7	41 × 19 × 41	FA10-30S	5.3 / 6.0	41 × 24 × 41
FA10-35	6.2 / 7.2	45 × 20 × 45	FA10-35S	7.5 / 8.5	45 × 25 × 45
FA10-40	7.2 / 8.2	50 × 20 × 50	FA10-40S	8.2 / 9.2	50 × 25 × 50
FA10-45	13.0 / 14.0	62 × 28 × 62	FA10-45S	15.0 / 16.0	62 × 33 × 62

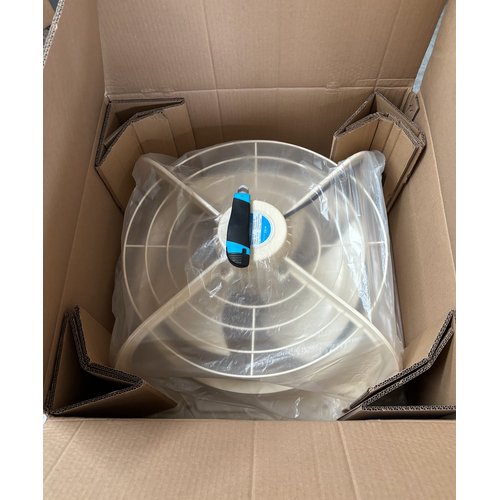

Commercial exhaust fan packed individually inside a cardboard carton — Individual carton packing

Include these details in your enquiry

Fan size or FA10 model number
Shutter or grille design
Quantity for each model
Required voltage and frequency
Destination country and delivery location

We will confirm the available configuration, quotation and lead time for your order.

Questions before ordering

Which sizes are available?

Nominal sizes are 8, 10, 12, 14, 16 and 18 inches, corresponding to 200, 250, 300, 350, 400 and 450 mm.

Does the shutter open automatically?

Yes. The shutter design is described as opening when the exhaust fan starts operating. Choose an S-suffix model for this configuration.

Can I use this fan with a long duct?

The available data does not include a fan pressure curve. Send the duct length, diameter, bends and outlet details so the required duty can be checked before ordering.

Is the fan available in other voltages?

The listed specification is 220 V, single phase, 50/60 Hz. Tell us your local supply requirements so availability can be confirmed.
