RCU SERIES · ROOFTOP CENTRIFUGAL VENTILATION
Upblast Roof Exhaust Fan
Commercial and industrial rooftop exhaust fans engineered to move hot air, smoke, odors and contaminated air vertically upward and away from the roof. Direct-drive and belt-drive configurations are available for different airflow and operating requirements.
800–16,000 CFM · 280–800 mm impeller · Direct / Belt Drive · RCU05–RCU32
What Is an Upblast Roof Exhaust Fan?
An upblast roof exhaust fan is a rooftop-mounted centrifugal ventilation fan. Air is pulled from the building through ductwork, enters the roof fan, is accelerated by the centrifugal impeller, and is then discharged vertically upward. The upward discharge helps direct exhaust away from the roof surface and building.
This configuration is suited to demanding commercial and industrial exhaust applications, including restaurants and commercial kitchens, factories, smoke exhaust systems and agricultural facilities.
RCU Upblast Roof Fan Features
Aluminum Alloy Construction

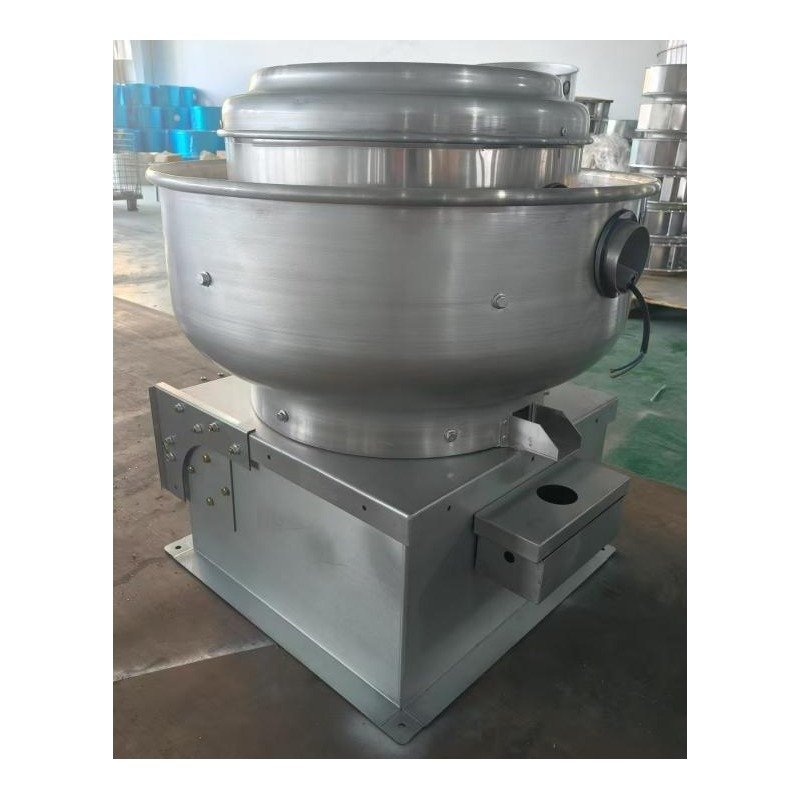

RCU series housings and bases use formed aluminum-alloy components. Aluminum-alloy wheels are used in this series.
Direct & Belt Drive
Select direct-drive or belt-drive configurations according to model, airflow and application requirements.
Impeller Options
Carbon steel, stainless steel and aluminum-alloy impeller materials can be selected for different working environments.
Balanced Impeller
The catalog specifies impeller balance testing in accordance with G4.0 ISO 1940 requirements.
Service-Friendly Design

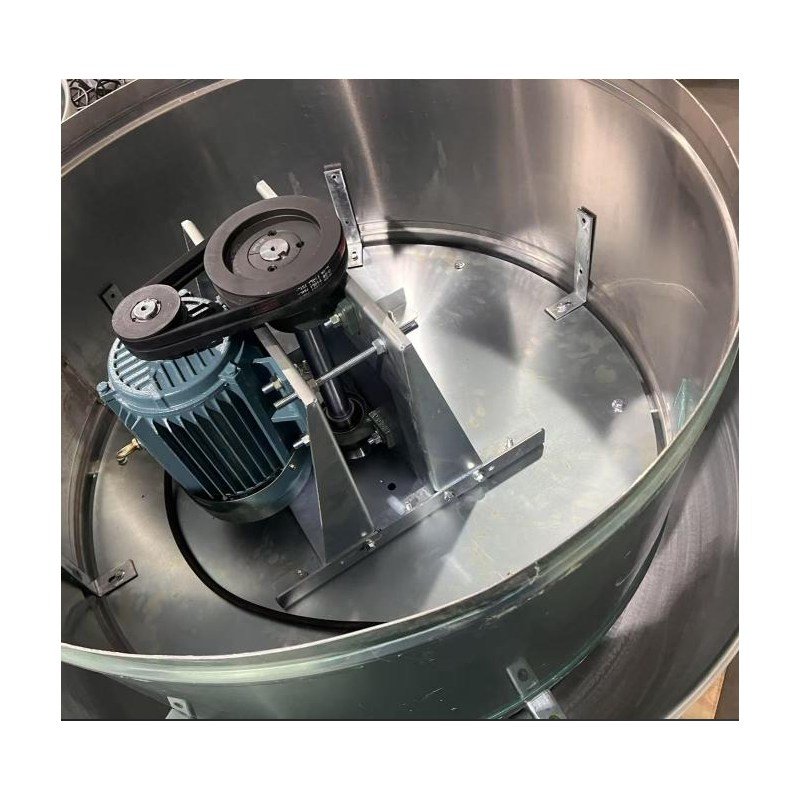

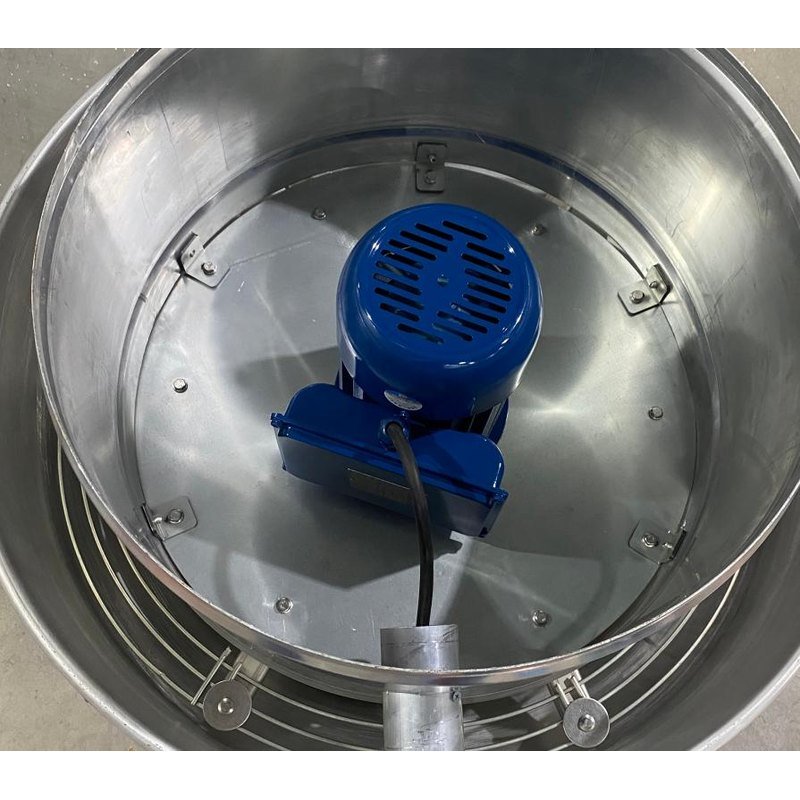

The drive-cavity cover is designed to open for routine cleaning and maintenance access.
High-Temperature Options
Selected configurations are available for smoke and elevated-temperature applications. Confirm the exact duty before ordering.

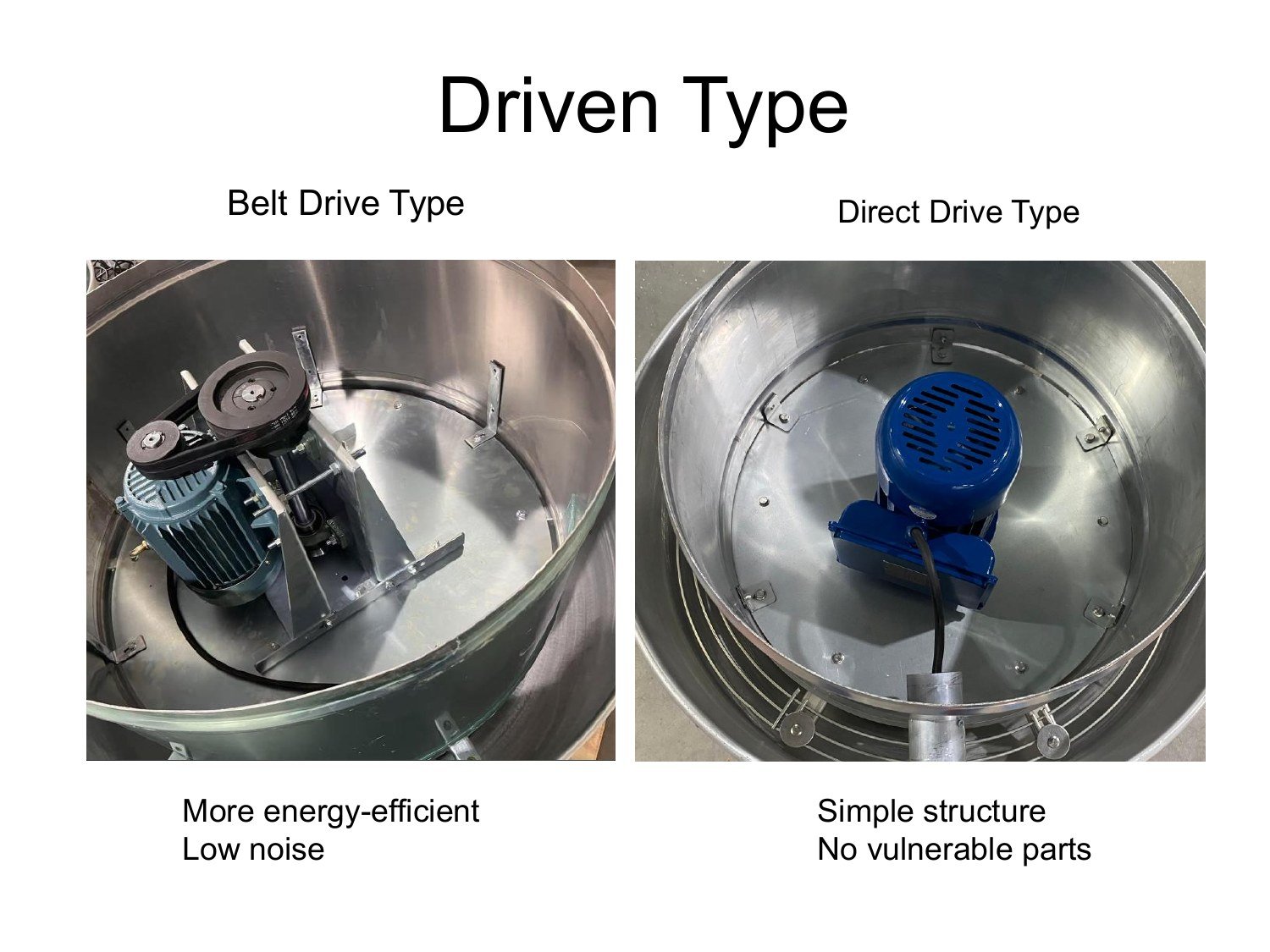

Direct Drive vs. Belt Drive
Belt Drive Type
Available on selected RCU models for application-specific speed and performance requirements.
Direct Drive Type
A compact transmission arrangement with a simple internal structure and fewer drive components.
Upblast Roof Exhaust Fan Specifications
The table below reproduces the RCU series specification summary supplied in the product catalog. Final motor, voltage, frequency and duty point should be confirmed for the selected model.
| Model | Impeller Ø (mm) | Power | Speed (RPM) | Air Flow (CFM) | Drive | Dimensions (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| RCU05 | 280 | 0.37/0.5HP | 1450/1720 | 800 | Direct | 680×680×530 | 28 |
| RCU08 | 315 | 0.5/0.75HP | 1450/1720 | 1400 | Direct | 680×680×530 | 30 |
| RCU10 | 355 | 0.75/1HP | 1400 | 2500 | Belt | 720×720×620 | 70 |
| RCU10 | 355 | 1.0HP | 1450/1720 | 3500 | Direct | 720×720×620 | 64 |
| RCU14 | 400 | 1.0HP | 1400 | 4000 | Belt | 720×720×620 | 70 |
| RCU14 | 400 | 1.5HP | 1450/1720 | 4800 | Direct | 720×720×620 | 64 |
| RCU16 | 455 | 1.5HP | 1300 | 5200 | Belt | 930×930×700 | 86 |
| RCU16 | 455 | 2.0HP | 1450/1720 | 5800 | Direct | 930×930×700 | 76 |
| RCU18 | 500 | 1.5HP | 1000 | 6000 | Belt | 930×930×720 | 86 |
| RCU18 | 500 | 2.0HP | 1400 | 7400 | Direct | 930×930×720 | 76 |
| RCU18 | 500 | 2.0HP | 960/1150 | 8000 | Direct | 930×930×720 | 76 |
| RCU28 | 710 | 3.0HP | 750 | 9500 | Belt | 1280×1280×950 | 250 |
| RCU28 | 710 | 5.5HP | 1000 | 11000 | Belt | 1280×1280×950 | 250 |
| RCU28 | 710 | 7.5HP | 960/1150 | 12500 | Direct | 1280×1280×950 | 200 |
| RCU32 | 800 | 5.5HP | 750 | 13000 | Belt | 1280×1280×960 | 250 |
| RCU32 | 800 | 7.5HP | 1000 | 14000 | Belt | 1280×1280×960 | 250 |
| RCU32 | 800 | 10HP | 960/1150 | 16000 | Direct | 1280×1280×960 | 200 |
Performance Curves & Technical Drawings

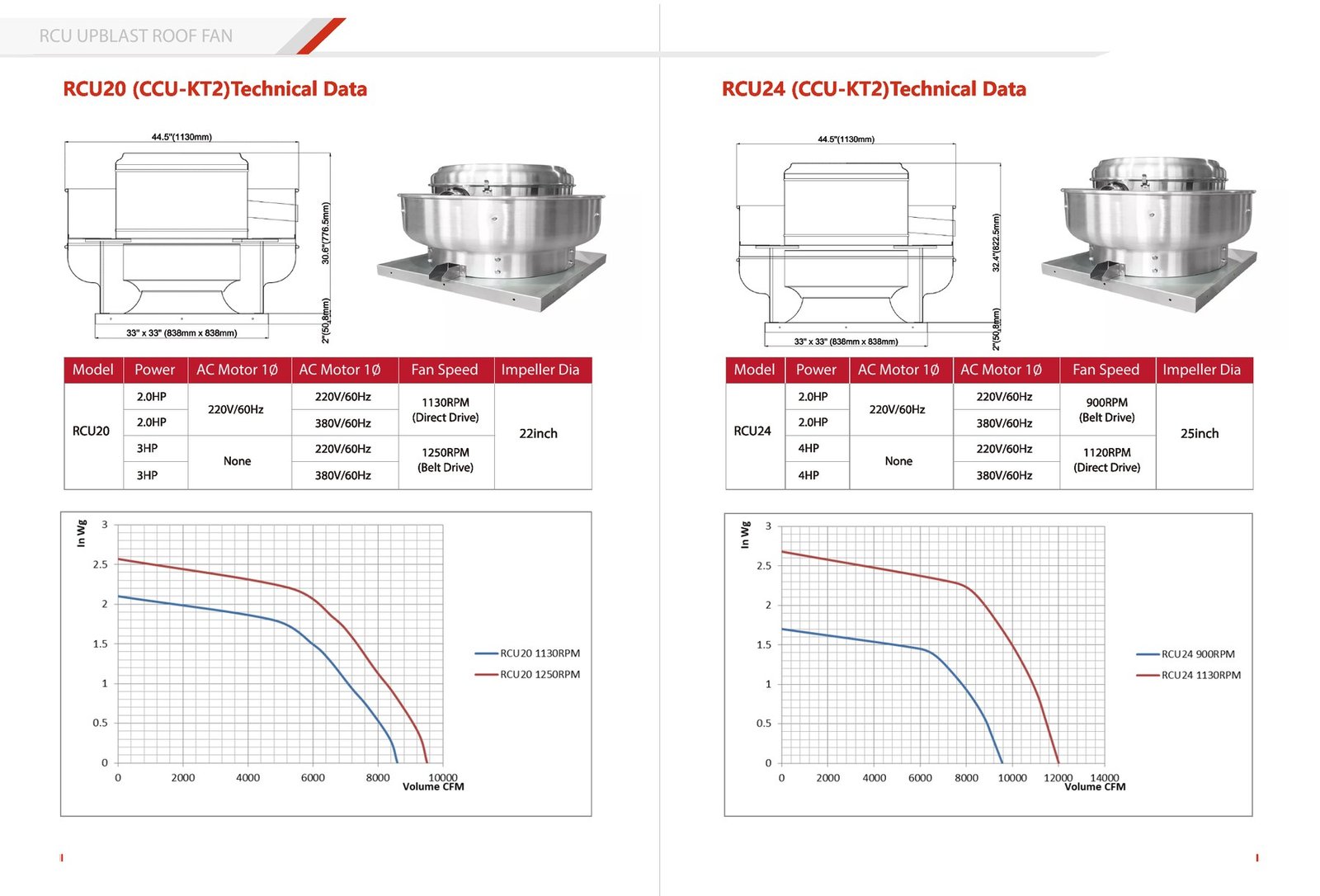

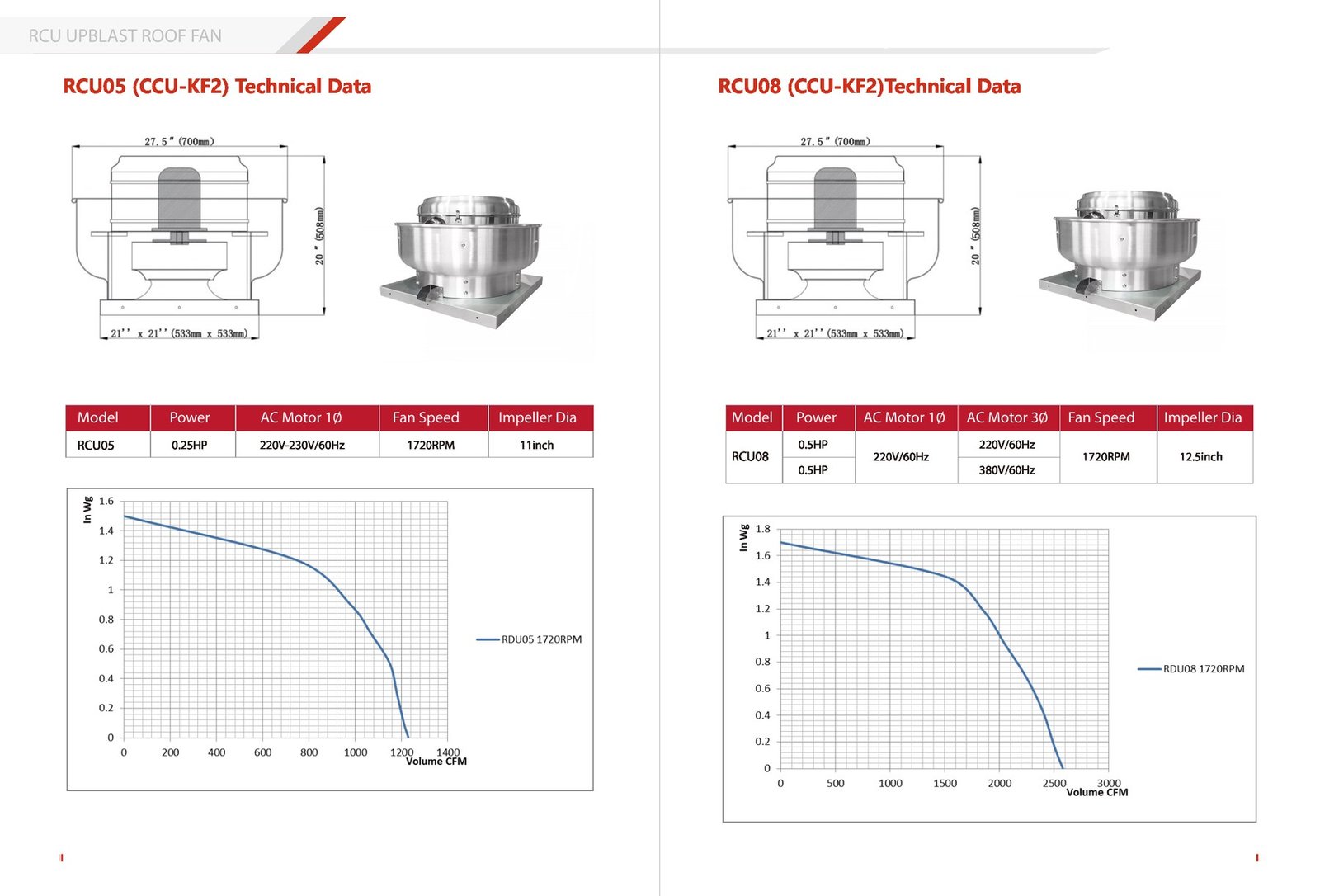

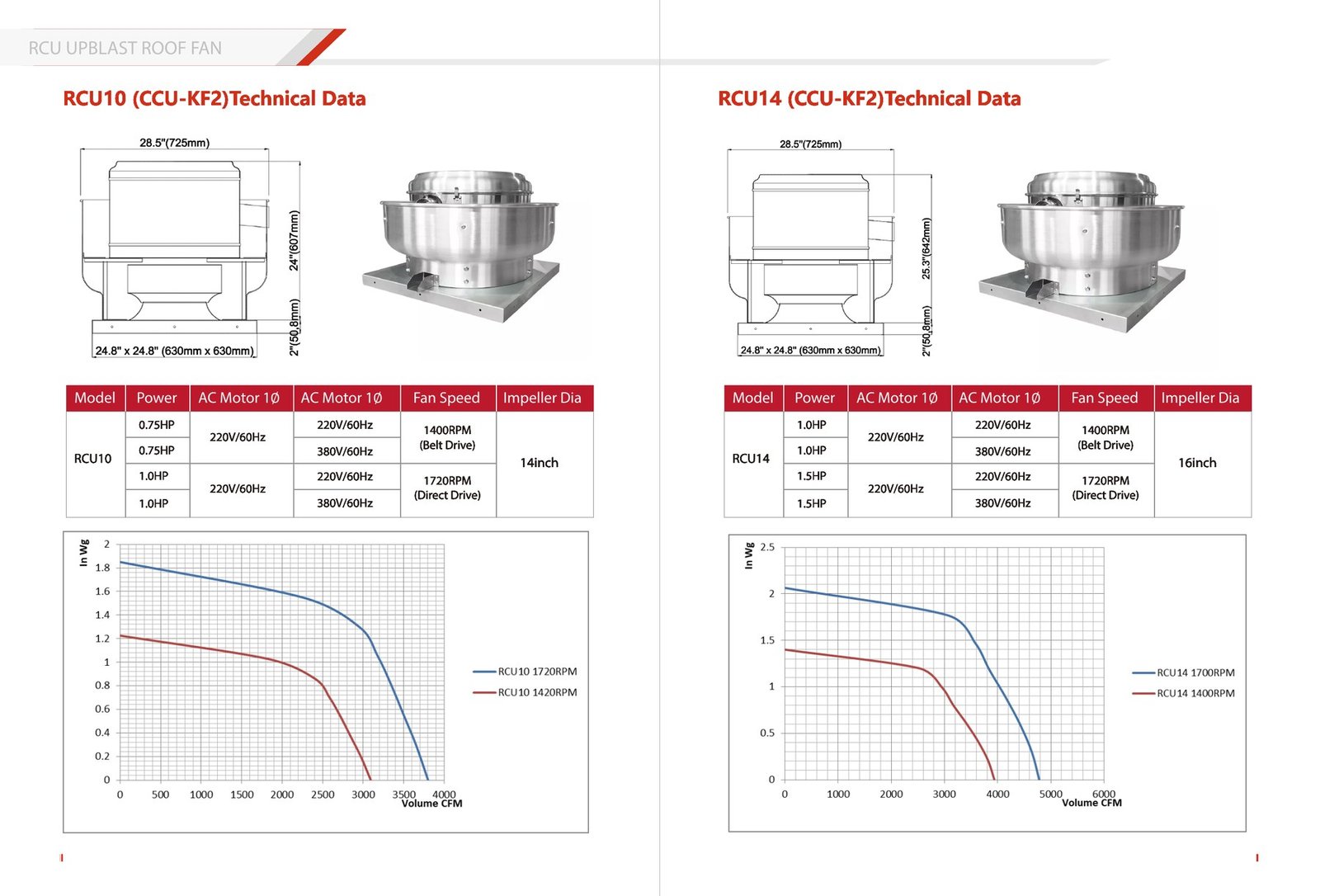

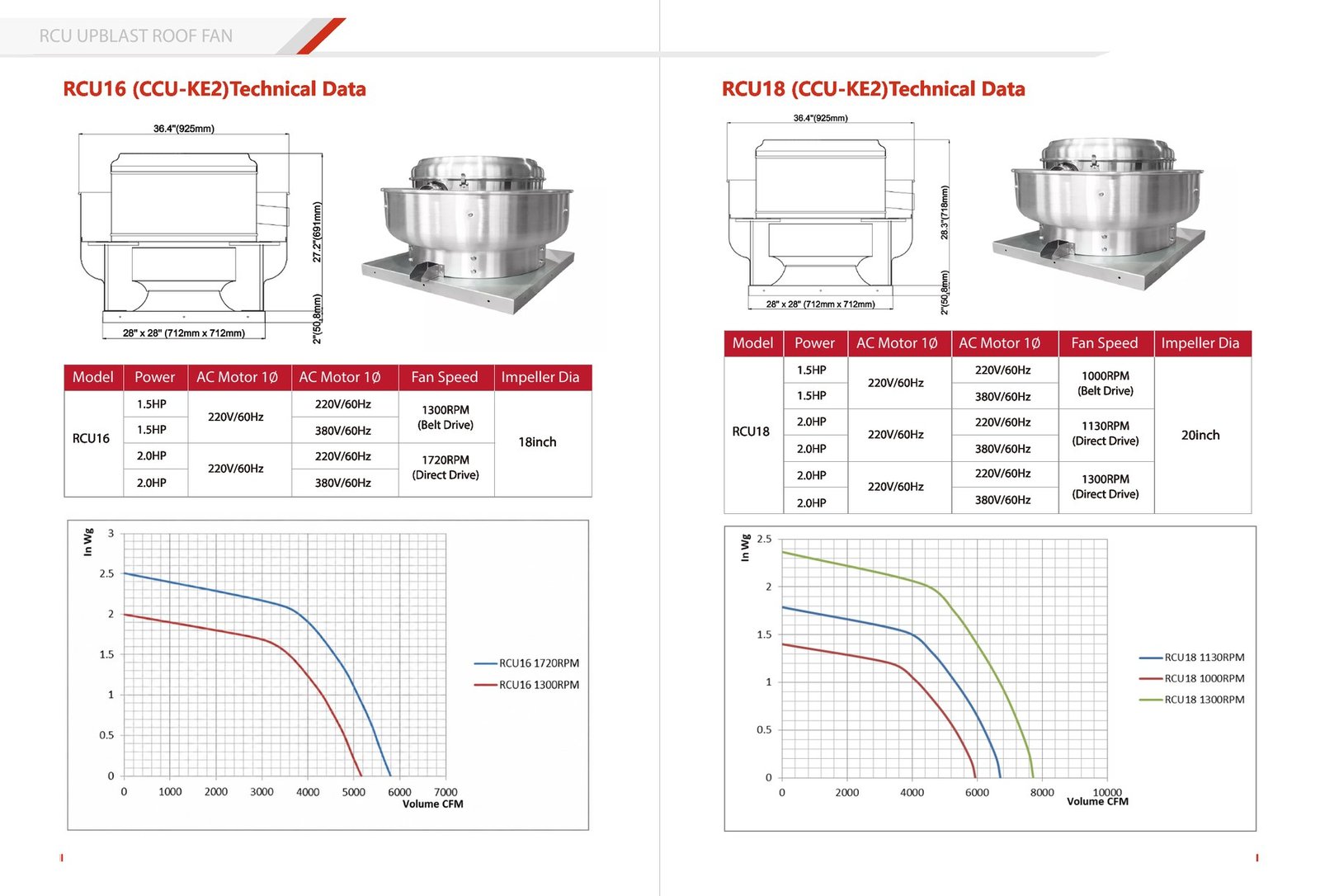

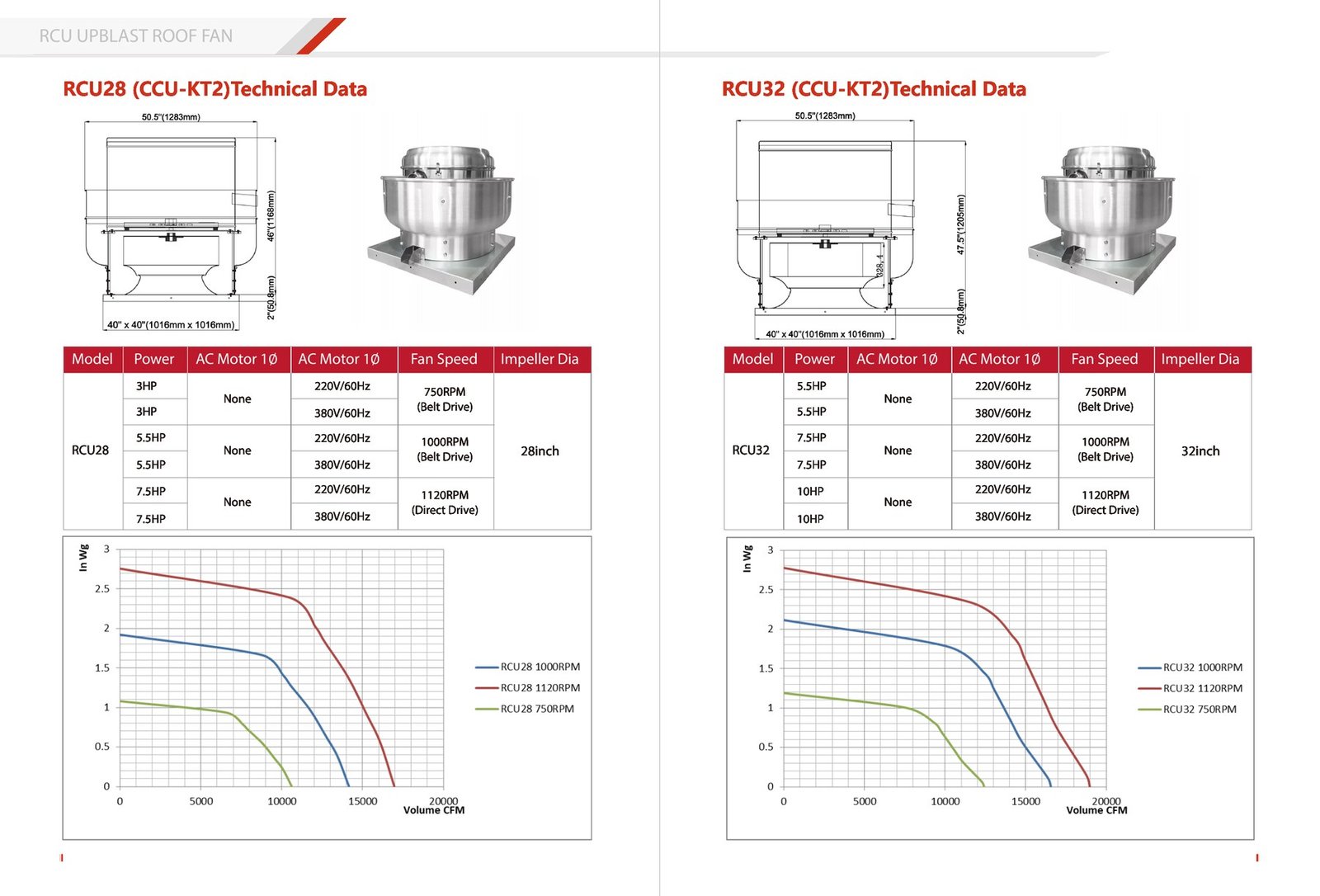

Use the fan curves to compare airflow against static pressure and identify a suitable operating point. The technical datasheet provides model-specific curves and dimensional drawings.

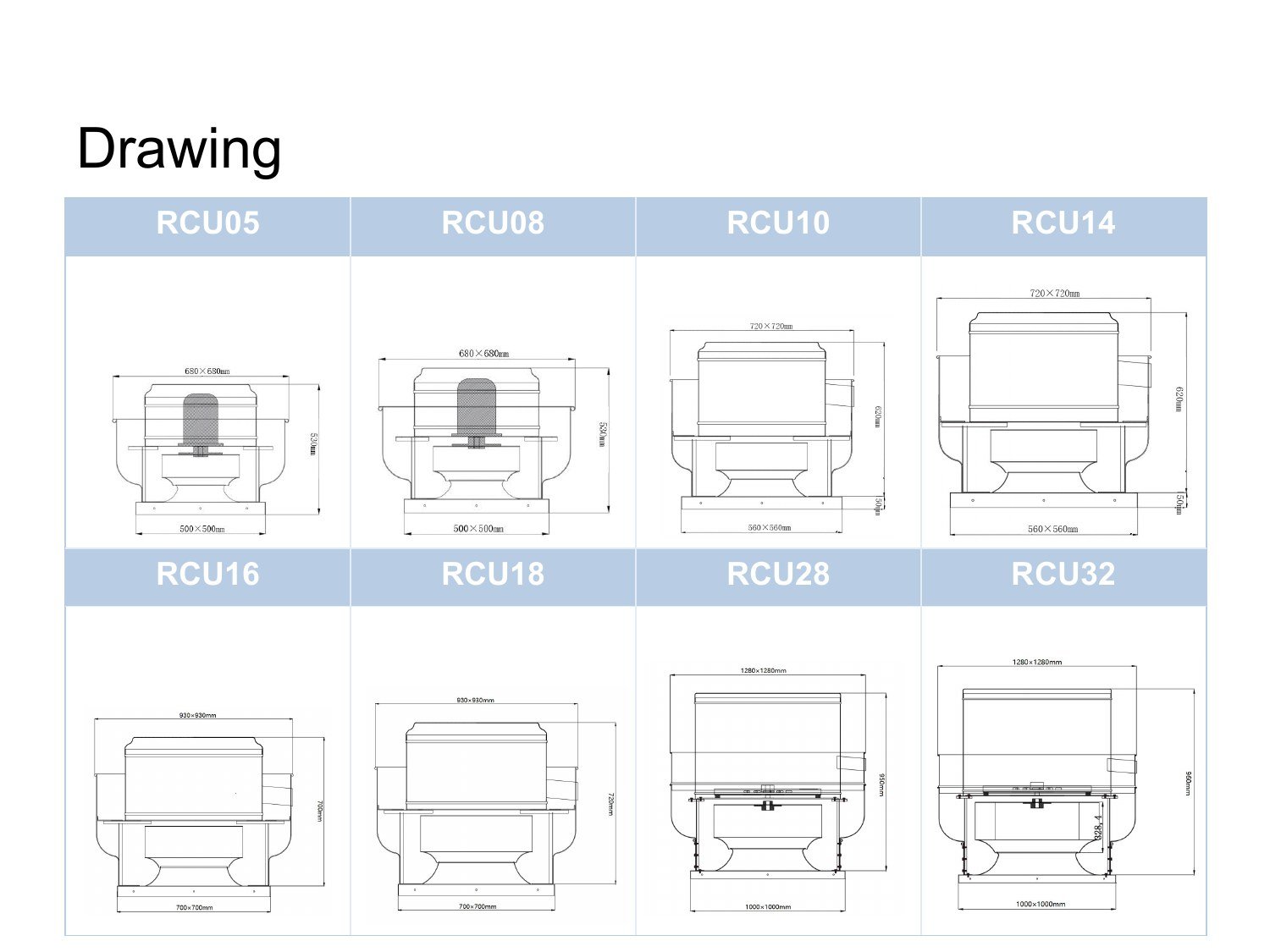

RCU Model Dimensions & Product Drawings
Performance Curves & Technical Data
Product Views & Applications
Applications
Commercial Kitchen Exhaust
Rooftop exhaust for restaurant and food-service ventilation systems.
Factory & Industrial Exhaust
Remove process heat, odors and contaminated air from manufacturing and industrial buildings.
Smoke & High-Temperature Exhaust
Selected configurations are offered for smoke and elevated-temperature applications.
Agricultural Ventilation
Roof exhaust for agricultural buildings requiring mechanical air extraction.
Production, Assembly & Export Packing

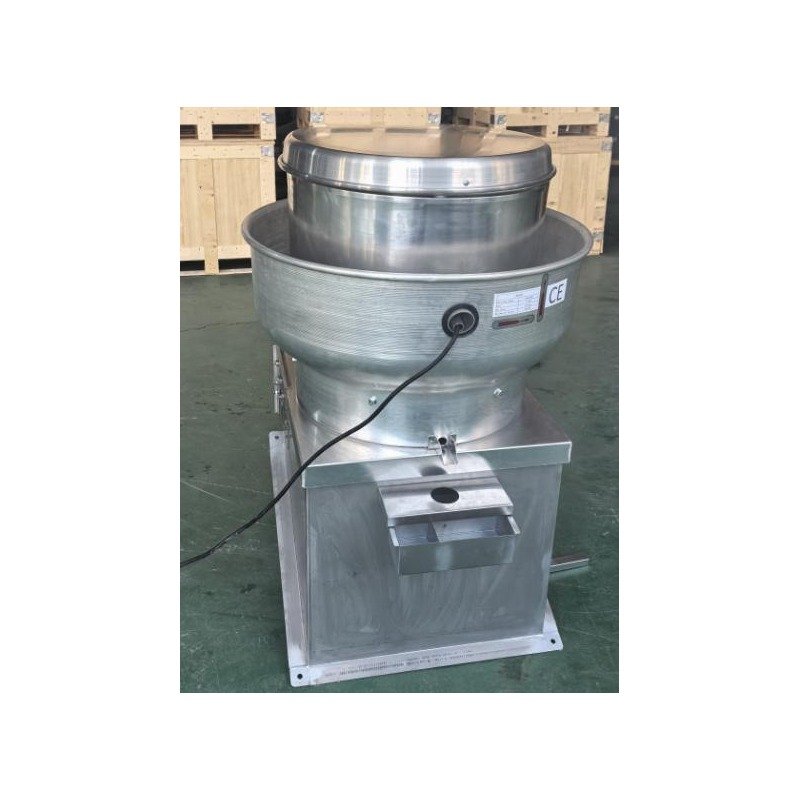

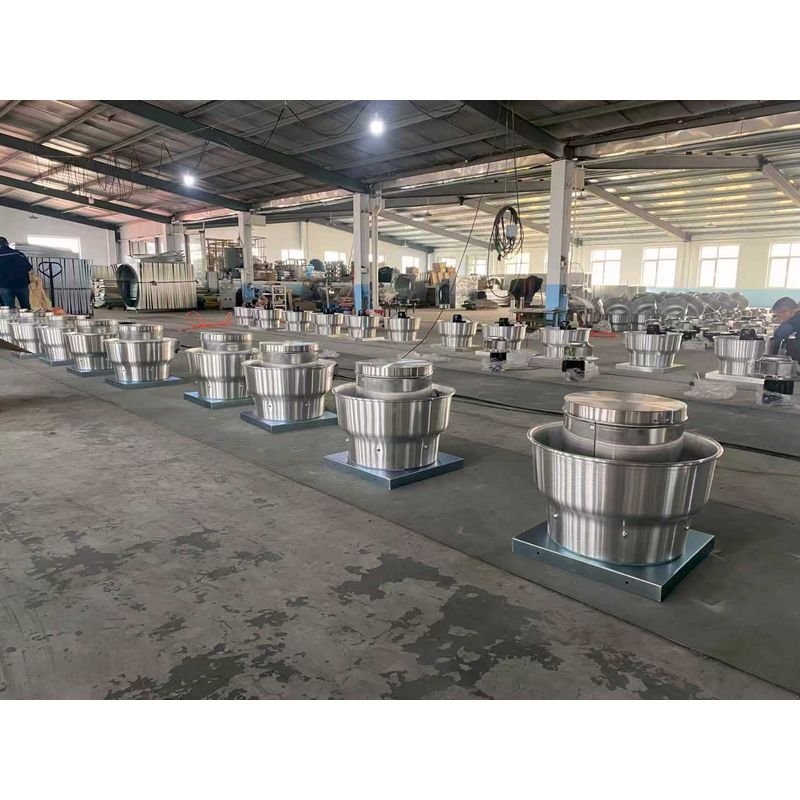

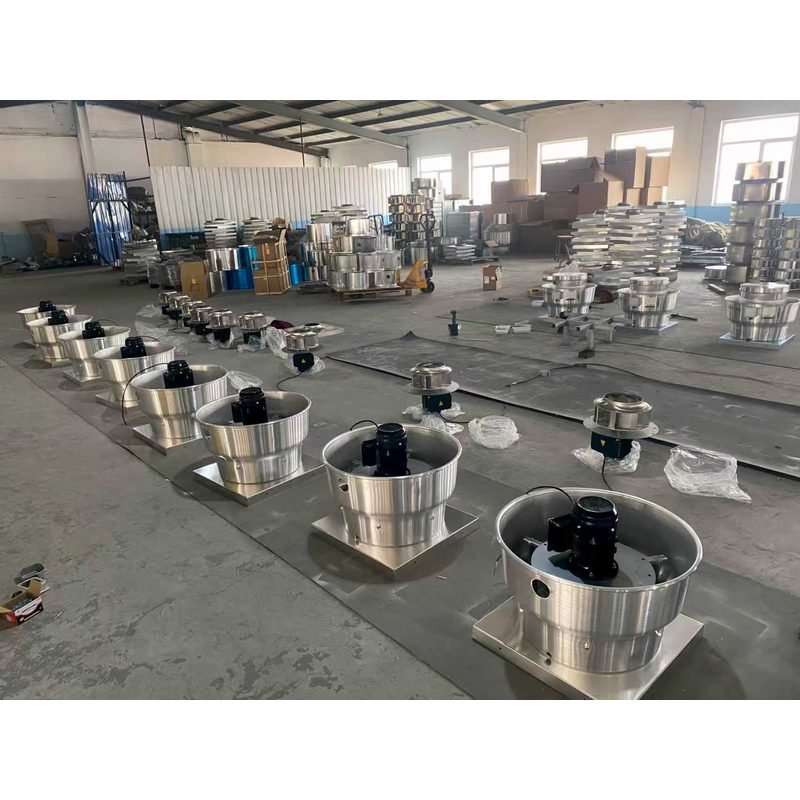

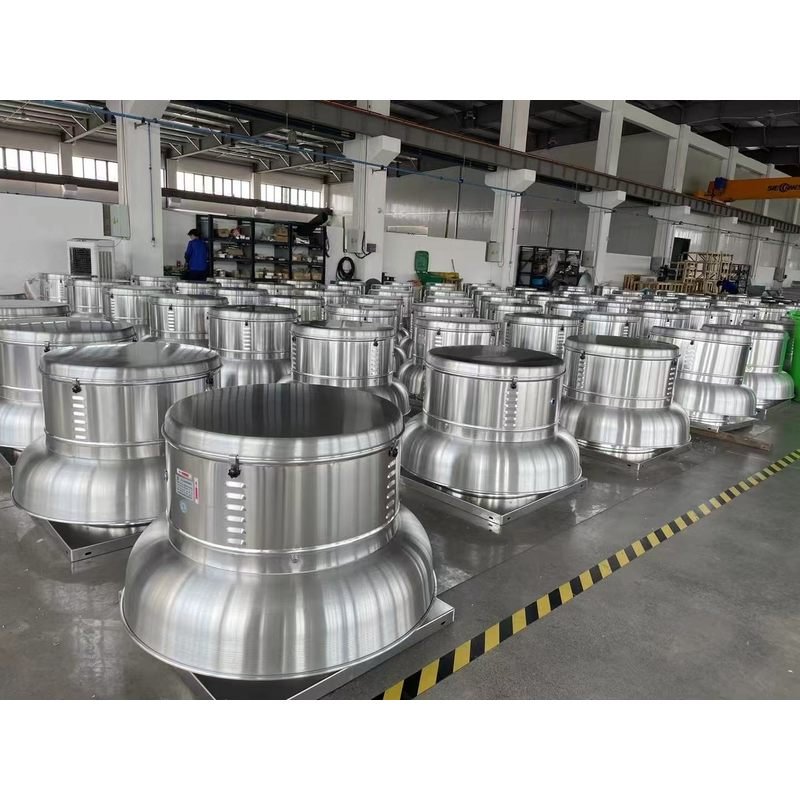

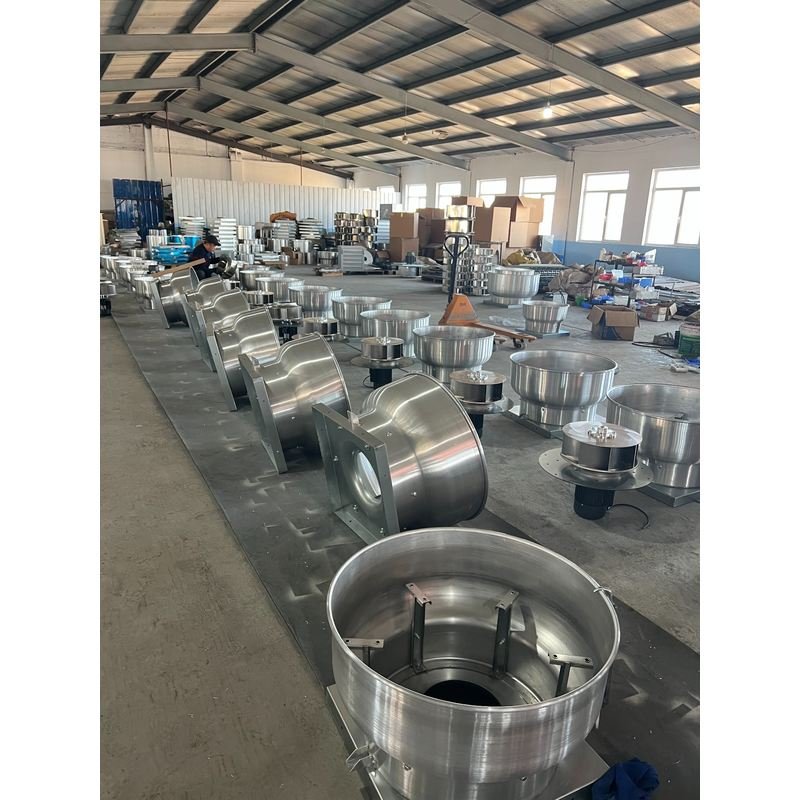

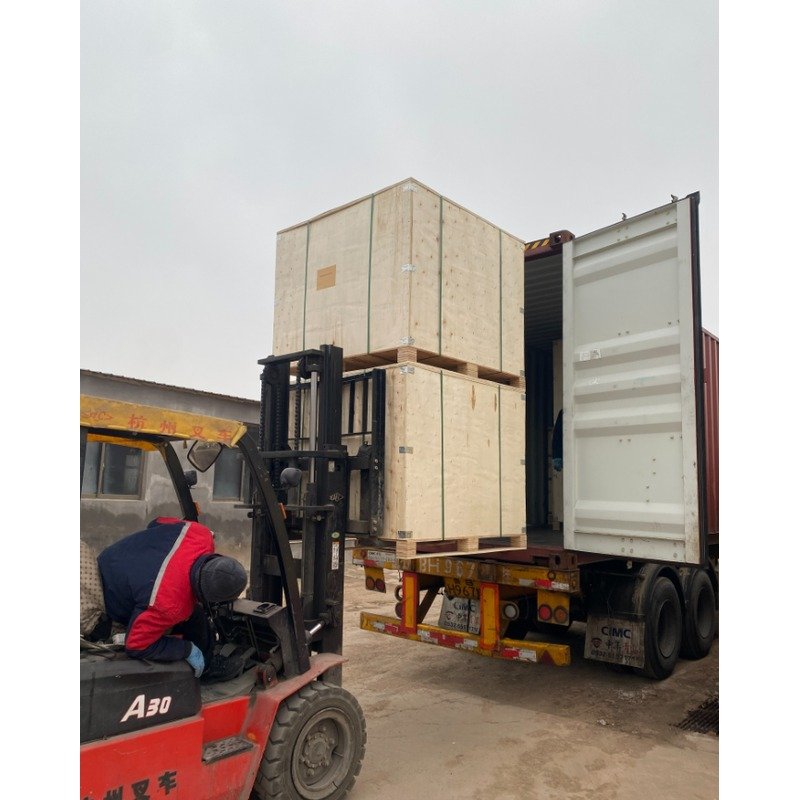

See Airtechz RCU upblast roof exhaust fan production, assembly, inspection and export preparation. These production images provide buyers with a closer view of manufacturing and order handling.
Upblast Roof Exhaust Fan FAQ
What is the difference between an upblast and a standard roof exhaust fan?
An upblast fan discharges exhaust vertically upward, helping move exhausted air away from the roof surface.
Which RCU model should I choose?
Selection should be based on required airflow, static pressure, drive type, power supply, temperature and installation dimensions. Send your target CFM and static pressure to sales@airtechz.com.
Can I choose direct drive or belt drive?
Yes, depending on model. The RCU catalog includes both configurations.
What voltage and frequency are available?
The supplied technical material includes single-phase and three-phase motor configurations, with examples such as 220 V / 60 Hz and 380 V / 60 Hz. Confirm the required electrical supply when requesting a quotation.
Need an Upblast Roof Exhaust Fan for Your Project?
Send us your required airflow (CFM), static pressure, voltage/frequency, installation size and application. We will help identify a suitable RCU configuration.
