AIRTECHZ / MX series

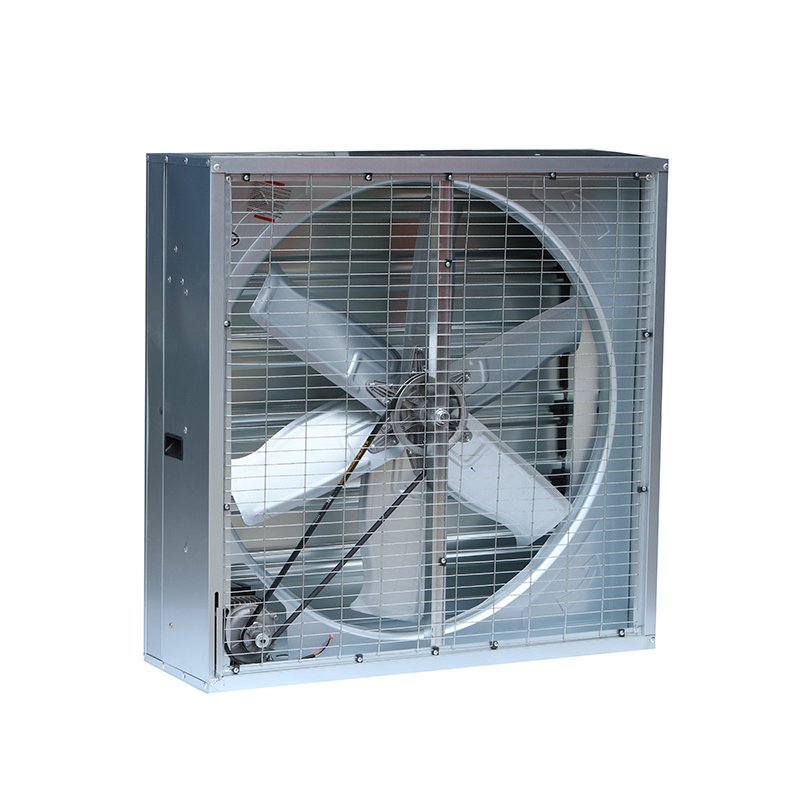

Industrial BLDC Exhaust Fan
A brushless DC motor system with selectable speed settings for factory, warehouse, greenhouse and farm ventilation.
Choose the airflow setting for the ventilation demand, then specify the drive, blade material, housing and electrical supply for your installation.
01 / Motor and control
Why choose a BLDC industrial exhaust fan?

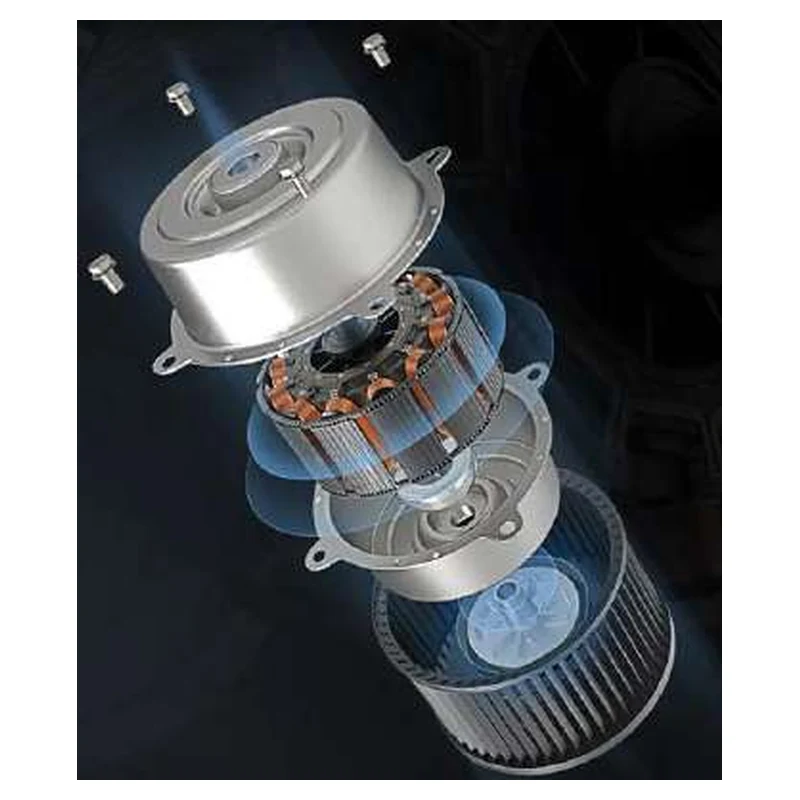

The BLDC industrial exhaust fan uses a brushless DC motor system. Compared with a traditional AC type, the motor and controller are designed for more efficient airflow control and lower power consumption.
The motor and blade arrangement provide more even airflow and smoother indoor ventilation. Multiple speed settings let operators adjust extraction instead of running at the highest setting throughout the day.
Power matched to demand
Select a lower setting when full airflow is unnecessary. Compare the power and airflow at each setting in the performance tables.
More precise control
MX-1000, MX-1220, MX-1380 and MX-1530 have four listed settings. MX-900 has three listed settings. Remote control is available with a compatible controller.
Operating cost over time
A BLDC system can require a higher initial investment. Evaluate the purchase price together with operating hours, selected speed and local electricity costs.
02 / Construction and components
Motor, blades, drive and housing options
Shutter assembly
Shutters close when the fan is stopped and open during operation. Confirm the shutter material with the selected configuration.
Aluminium pulley

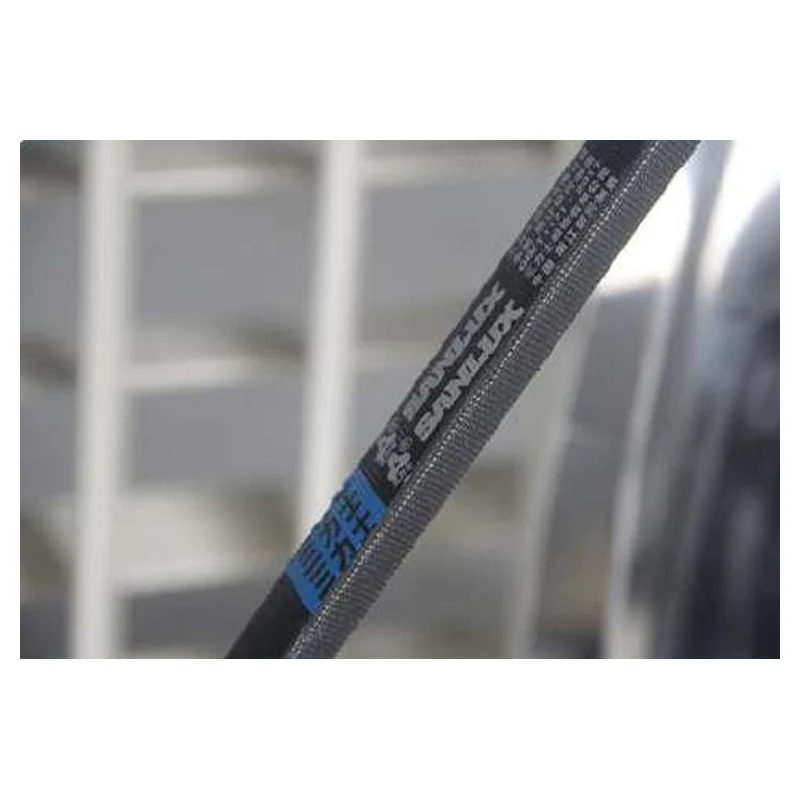

The widened and thickened aluminium wheel is designed for wear and corrosion resistance in the belt-drive arrangement.

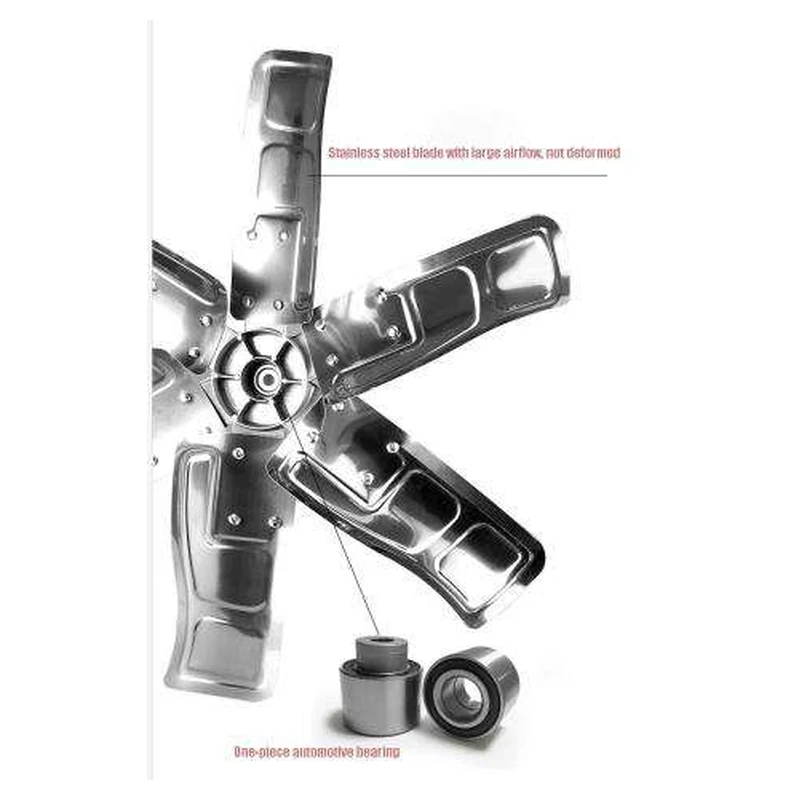

Bearing assembly

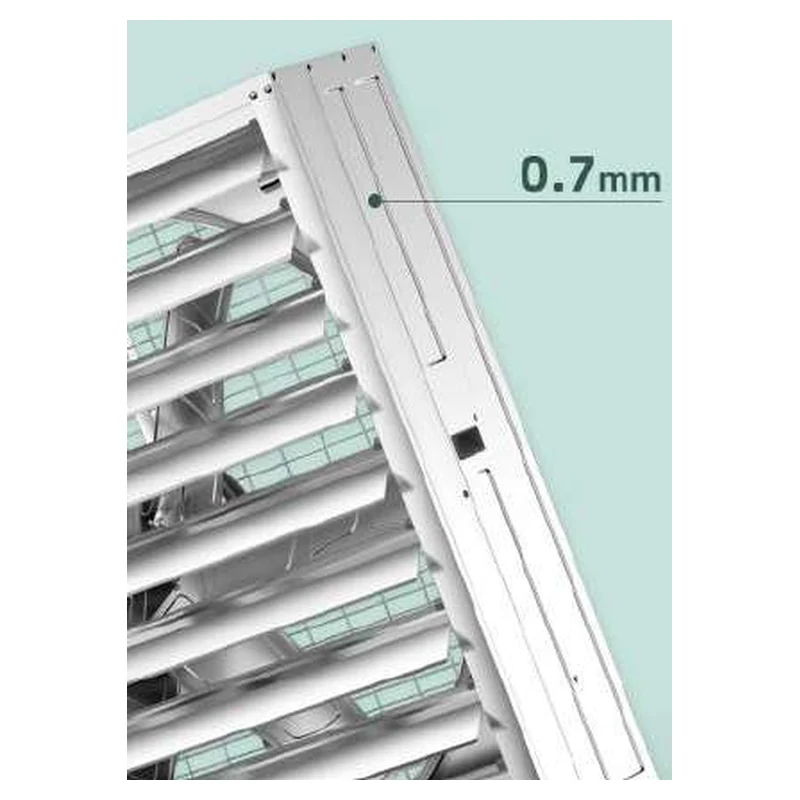

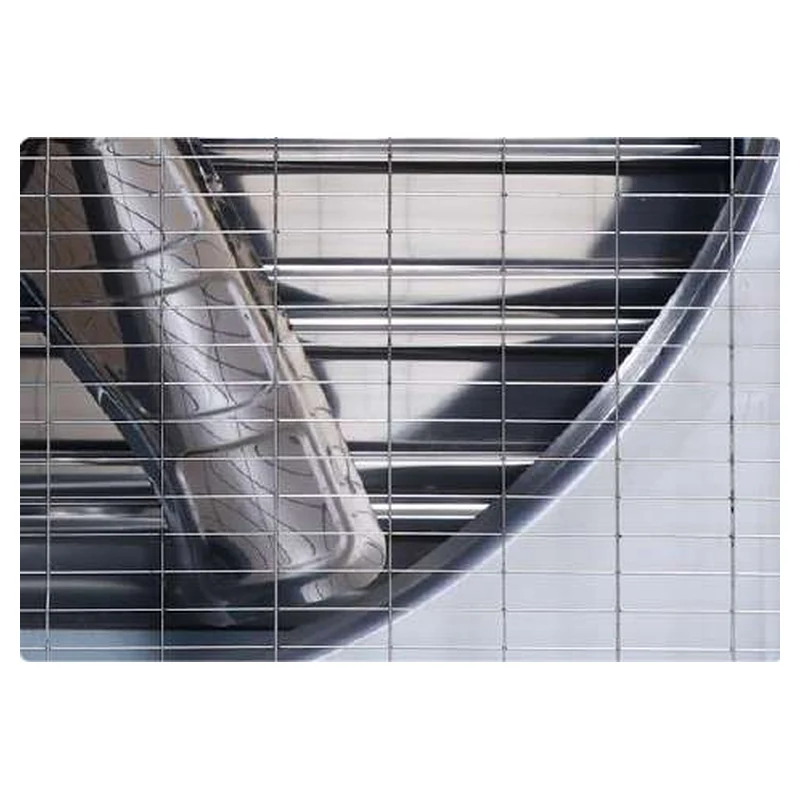

Confirm the bearing arrangement, drive and maintenance access when selecting the fan configuration. A thickened galvanized frame and protective grille are available.
03 / Technical data
MX series performance and available models
All performance figures below are for a 220 V, 50 Hz electrical supply. Model codes identify the available series; request the frame dimensions and installation opening before placing an order.
| Model | Settings | Airflow (m³/h) | Power (W) | Air speed (m/s) | Noise (dB) |
|---|---|---|---|---|---|
| MX-900 | 3 | 10,609 | 305 | 6.5 | 60 |
| MX-1000 | 4 | 17,974 | 392 | 8.6 | 78 |
| MX-1220 | 4 | 28,677 | 589 | 8.7 | 82 |
| MX-1380 | 4 | 39,107 | 850 | 9.0 | 80 |
| MX-1530 | 4 | 43,757 | 850 | 7.9 | 75 |
| Setting | Current (A) | Power (W) | Airflow (m³/h) | Air speed (m/s) | Motor speed (rpm) | Noise (dB) |
|---|---|---|---|---|---|---|
| 1 | — | 130 | 4,080 | 2.5 | — | 45 |
| 2 | — | 210 | 9,467 | 5.8 | — | 55 |
| 3 | — | 305 | 10,609 | 6.5 | — | 60 |
| Setting | Current (A) | Power (W) | Airflow (m³/h) | Air speed (m/s) | Motor speed (rpm) | Noise (dB) |
|---|---|---|---|---|---|---|
| 1 | 0.96 | 102 | 7,524 | 3.6 | 311.1 | 68 |
| 2 | 1.47 | 256 | 11,704 | 5.6 | 388 | 70 |
| 3 | 2.38 | 265 | 14,421 | 6.9 | 166.6 * | 76 |
| 4 | 3.5 | 392 | 17,974 | 8.6 | 544.4 | 78 |
| Setting | Current (A) | Power (W) | Airflow (m³/h) | Air speed (m/s) | Motor speed (rpm) | Noise (dB) |
|---|---|---|---|---|---|---|
| 1 | 1.6 | 145 | 13,844 | 4.2 | 254.4 | 70 |
| 2 | 2.6 | 251 | 20,107 | 6.1 | 318 | 80 |
| 3 | 3.6 | 398 | 24,721 | 7.5 | 381.6 | 80 |
| 4 | 5 | 589 | 28,677 | 8.7 | 445.2 | 82 |
| Setting | Current (A) | Power (W) | Airflow (m³/h) | Air speed (m/s) | Motor speed (rpm) | Noise (dB) |
|---|---|---|---|---|---|---|
| 1 | 1.8 | 200 | 15,200 | 3.5 | 236 | 61 |
| 2 | 3.2 | 375 | 24,333 | 5.6 | 295 | 64 |
| 3 | 5 | 585 | 31,720 | 7.3 | 354 | 70 |
| 4 | 7.1 | 850 | 39,107 | 9.0 | 413 | 80 |
| Setting | Current (A) | Power (W) | Airflow (m³/h) | Air speed (m/s) | Motor speed (rpm) | Noise (dB) |
|---|---|---|---|---|---|---|
| 1 | 2 | 185 | 24,922 | 4.5 | 196.7 | 65 |
| 2 | 3.1 | 330 | 31,572 | 5.7 | 245.9 | 64 |
| 3 | 4.8 | 522 | 37,664 | 6.8 | 295 | 70 |
| 4 | 6.2 | 850 | 43,757 | 7.9 | 344.2 | 75 |
“—” means no value is specified. * The MX-1000 motor speed at setting 3 is listed as 166.6 rpm and requires confirmation before selection. Static pressure and acoustic test conditions are not specified; request the required operating-point data for your project.
04 / Customization
Specify the supply and controls before ordering
05 / Applications
Ventilation for production and agricultural buildings
Factories and warehouses
Extract warm indoor air and provide air exchange across production or storage areas. Coordinate the exhaust location with fresh-air inlets.
Greenhouses
Use selectable settings to adjust ventilation as the heat and humidity load changes during the day.
Farms
Provide controlled extraction for agricultural buildings. Specify housing and blade materials for the actual moisture and corrosion exposure.
06 / Selection questions
Before choosing a BLDC exhaust fan
Does every model have four speeds?
No. MX-900 has three listed settings. MX-1000, MX-1220, MX-1380 and MX-1530 each have four.
Can these fans use a 60 Hz supply?
220 V / 60 Hz and 110 V / 60 Hz single-phase configurations can be requested. Confirm the matching motor and controller. The performance tables on this page apply to 220 V / 50 Hz.
How much electricity will the fan use?
Use the selected setting’s input power, operating hours and electricity tariff. For example, the MX-1380 is listed at 200 W on setting 1 and 850 W on setting 4, with different airflow at each setting. Compare systems at the same required duty.
Are the model numbers installation dimensions?
Use a confirmed dimensional drawing for the frame and wall opening. The model number alone is not sufficient to determine the installation opening.
Is remote or wireless control standard?

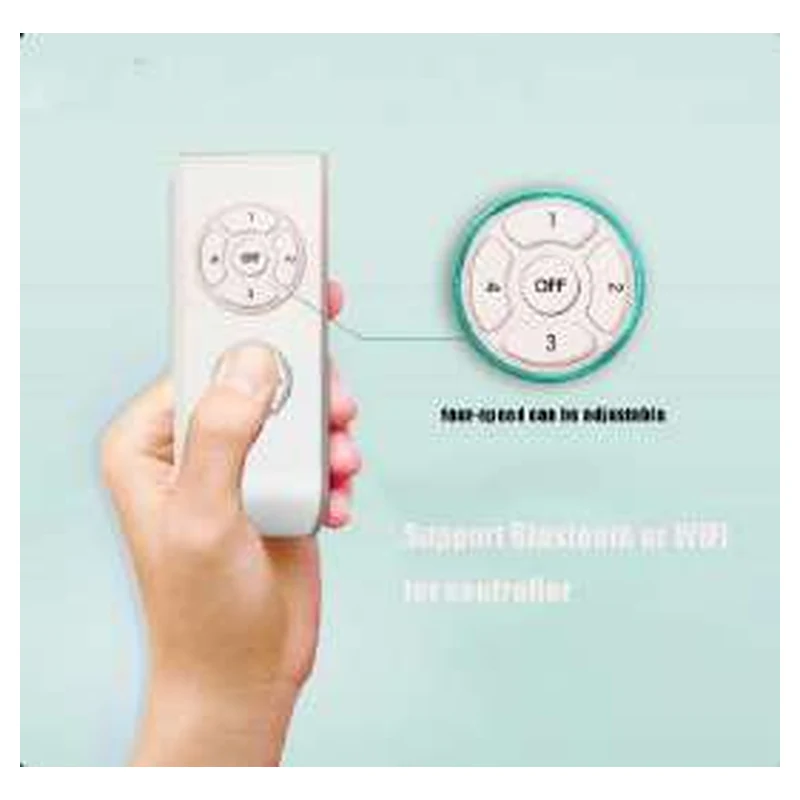

Remote control is available with a compatible controller. Bluetooth and Wi-Fi options should be specified and confirmed before ordering.
07 / Related products
Other ventilation arrangements
Upblast Roof Exhaust Fan
Powered extraction through a roof-mounted outlet.
Roof Turbine Ventilator
Wind-driven roof ventilation without an electric motor.
Industrial Exhaust Fans
Compare wall, roof and other industrial extraction options.
Request an industrial BLDC exhaust fan quotation
Tell us the model or required airflow, static pressure, installation opening, electrical supply and quantity. Include the building dimensions and application if you need help selecting a fan.
