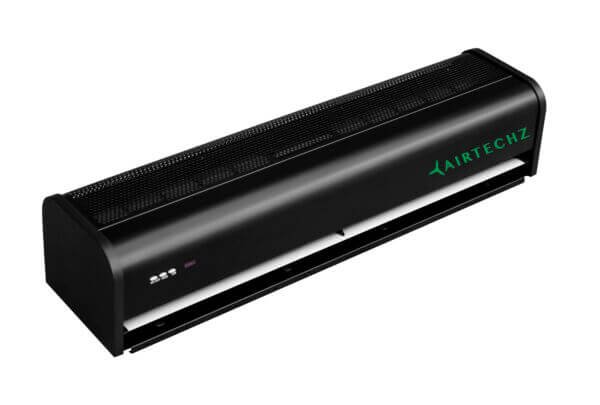

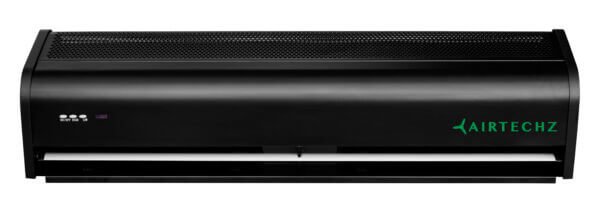

Basic plus air curtain
made of strengthened steel and ABS plastic material; multiple door switches are designed for installations in grocery store doors, cold room doors, etc.
| Weight | 14 kg |
|---|---|
| Dimensions | 95 × 22.5 × 19 cm |
| Air Velocity | 10-12 m/s |
| Installation Height | 3 meters |
| Available Length | 90CM,100CM,120CM,150CM,180CM,200CM; |
| Color | Black, White |
| Frequency | 110V, 220V, 50Hz, 60Hz |
| Package Size | 96x28x26CM,106x28x26CM,126x28x26CM,156x28x26CM,186x28x26CM,206x28x26CM; |
Product Features
Available Sizes
90cm,120cm,150cm,180cm;
Product dimension: 220*190cm high & depth
Power Supply
220V/50HZ, 110V/60HZ, 220V/60hz;
Exquisite Design
Modern contemporary design with compact housing; Standard black and white colors available. Suitable for most applications decoration, including restaurants, retail shops, and hospitals.
Cabinet Material
Strengthened steel with powder-coated coating & superior ABS plastic material
Mounting Method
- Regular horizontal installation design
- mounting brackets are optional for vertical installation on the wall

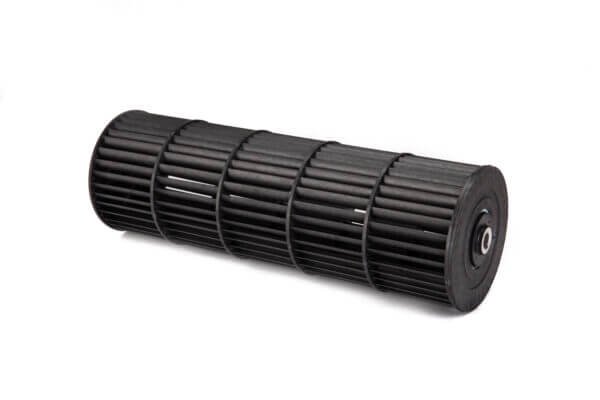

Blower/ Fan/Motor speed
It has a variable speed controller for customers to switch to the required speed at their needs of temperature stabilizing and dust control.
- standard 2-speed fan: 1st speed, 2nd speed.
Smart Control
- Standard remote controller
- Standard mechanical buttons
- Optional door switch/ magnetic door sensor
- Optional limit switch
- Wall controller
Advanced Airflow Structure
Two air inlets on the top and front directions provide a more efficient air inlet and ensure strong airflow at a relatively low noise level.

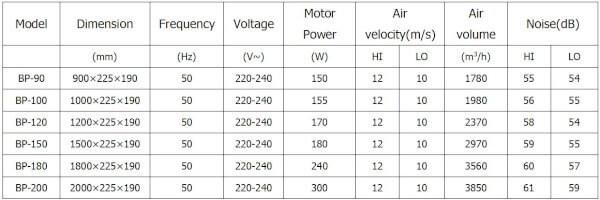

Performance data sheet
Color Options
- Black
- White
- Other custom colors are optional, pantone code or RAL code is required.
Package
- Standard reinforced kraft carton box
- Reinforced kraft carton box is optional
- Pallet or Wooden bracket is optional
Certificate:
CE, CB
Related products

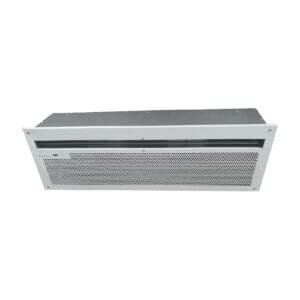

Recessed air curtain
