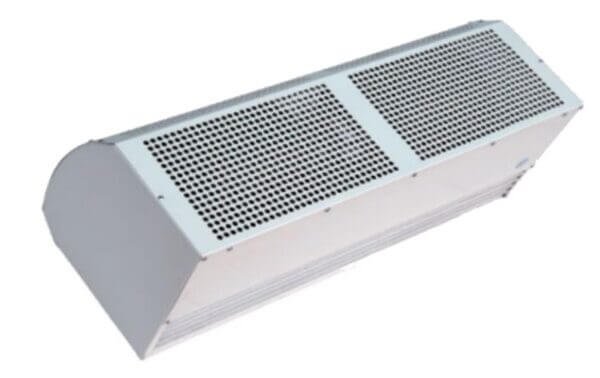

Industrial air curtain

Product Size

• Length：90cm, 120cm,150cm; 3 feet, 4 feet, 5 feet;
• High & depth: 345*351mm

Installation Height

up to 8 meters

Supply Voltage & Phase

• 380V/50HZ three phase
• 220V/50HZ single phase
• Other supply voltages are optional.

Colors

• standard colors: RAL 9016 white
• Original stainless steel gray
• custom colors are acceptable

Multiple Mounting Options

Multiple installation options are available for different door entrance conditions in the manufacturing plants, and cold storage room, including:

• Ceiling hanging installation
• Wall installation
• Vertical installation

Strong Air Pressure and Powerful Airflow

Optimized blowers are capable of providing very strong and smooth airflow, creating a powerful air barrier between indoors and outdoors for cold rooms, warehouses, factories, and other industrial applications.

*max air speed upto 24m/s at nozzle.

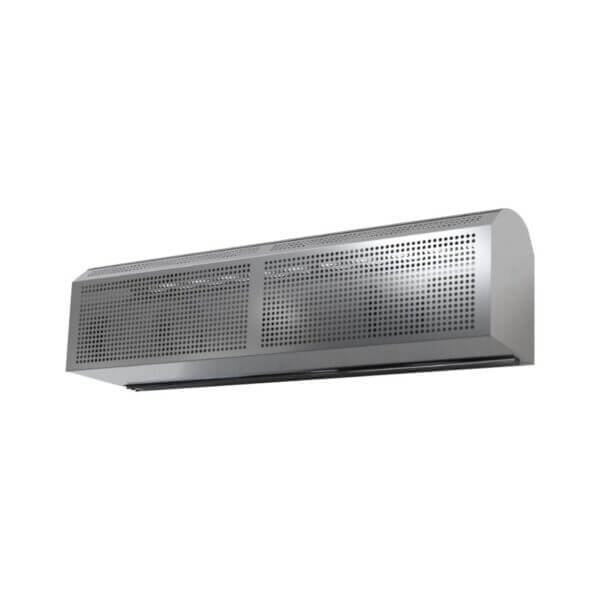

Stainless Steel Cabinet

SUS 304 Stainless housing is optional and has special surface anti-rust processing. I series air curtain with stainless housing is a good solution for industrial applications with high humidity and corrosion.

Stainless steel type: grade 304 or better material

Steel Cabinet with Powder Coating

steel cabinet with powder-painted is a standard option for industrial air curtains. It works well in most industrial premises.

Blower/ Fan/Motor

Centrifugal blowers/impellers are made of strong and hard metal, which work well during very high-speed running. And reliable motors provide strong power and make industrial air curtains work well in most places in the long term.

Control System & Wiring

• Mechanical button
• Contactor

Package

• Standard reinforced kraft carton box
• Pallet or Wooden bracket is optional
•

Certificate

CE, CB
